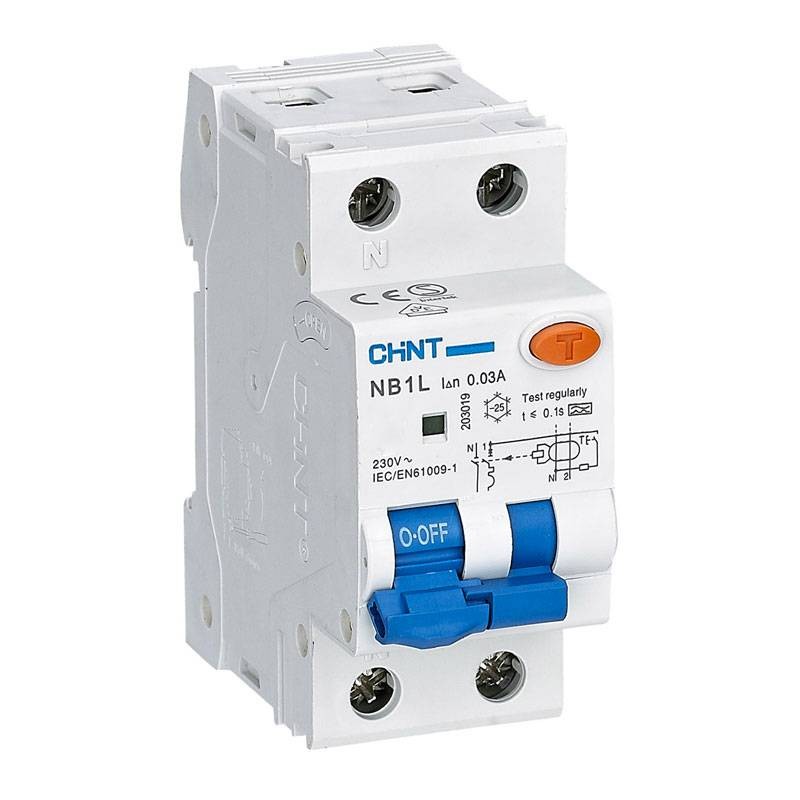

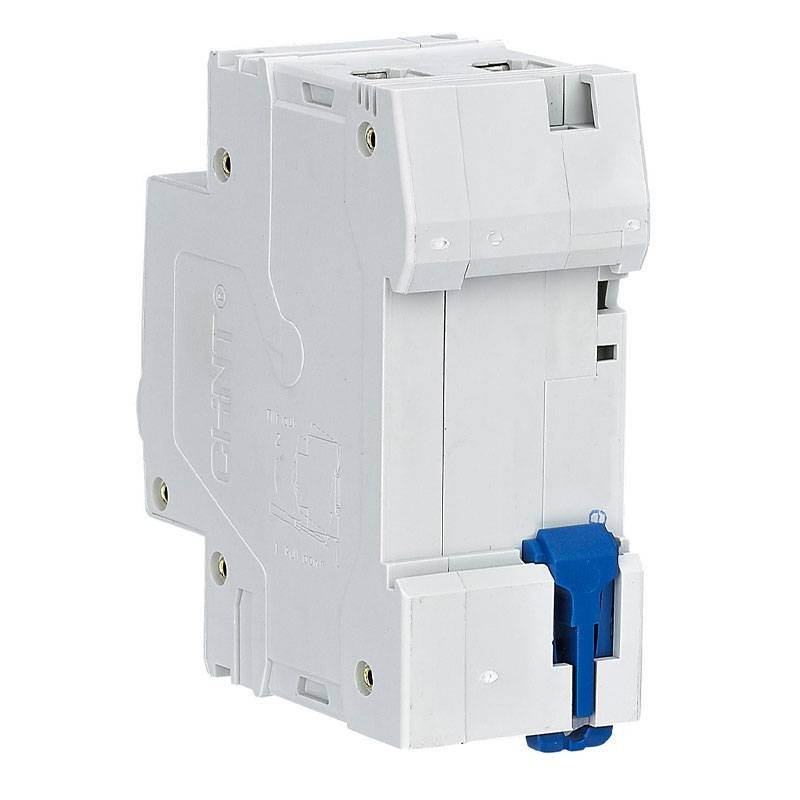

Chint Residual Current Operated Circuit Breaker NB1L2 40A 1P+N 6KA 30MA AC 2 Modules 203299

Chint
CHT 203299 6901800094852

Chint NB1L2 Residual Current Operated Circuit Breaker with the following characteristics:



  • Number of Poles: 1P+N
  • Rated current: 40A
  • Type: AC
  • Curve C
  • Rated differential current: 30 mA
  • Rated breaking capacity: 6 kA
  • Rated voltage: 230 Vac
  • Number of Modules: 2
  • Degree of protection: IP20
Do you have questions about this product or did you not find what you were looking for? Ask us!
Chint Residual Current Operated Circuit Breaker NB1L2 40A 1P+N 6KA 30MA AC 2 Modules 203299
€34.46
€34.46

€34.46
Tax included
Items Available: 8
Further availability of the manufacturer
€34.46

Buy it within and receive it from Wednesday, 12 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The Residual Current Operated Circuit Breaker is located next to the circuit breaker and integrates a magnetic protection to a thermal one, and in case of need it interrupts the electric current. The thermal-magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal features.



The Residual Current Operated Circuit Breaker in the electrical system integrates three different protections:

  • The magnetic one for short circuits that can endanger an entire building with the danger of fire
  • The thermal one for overloads in the supply of electricity (for example, more than one appliance in operation)
  • The differential one proper to the earth leakage circuit breaker, which protects the subject from a current leakage



The AC-type Residual Current Operated Circuit Breaker the tripping is ensured for suddenly or slowly increasing applied sine-wave alternating differential currents (IEC EN 61008-1).



NB1L2 series 6 kA magnetothermal/differential circuit breakers. Particularly suitable for line protection against overloads and short circuits, as well as against direct contacts. Intended for civil, tertiary and industrial applications.



Features:

  • Reference standard: IEC/EN 61009-1
  • Number of Poles: 1P+N
  • Rated current: 40 A
  • Tripping curve: C
  • Rated voltage: 230 Vac
  • Rated frequency: 50/60 Hz
  • Isolation voltage: 500 Vac
  • Impulse voltage: 6 kV
  • Rated breaking capacity: 6 kA
  • Extreme breaking capacity: 10 kA
  • Rated service interrupting capacity: 6 kA
  • Power Dissipation: 10.5 W
  • Number of DIN modules (1 DIN = 18 mm): 2
  • Degree of protection: IP20
  • Dimensions: 86x36x77 mm (HxWxD)

There are no reviews

Data sheet

Voltage:
230VAC
Modules:
2
Poles:
1P+N
Curve:
C
Breaking capacity:
6KA
RCD Type:
AC
Differential current :
0.03A
Degree of protection:
IP20
Amps:
40A
Circuit Protections:
RCBO
