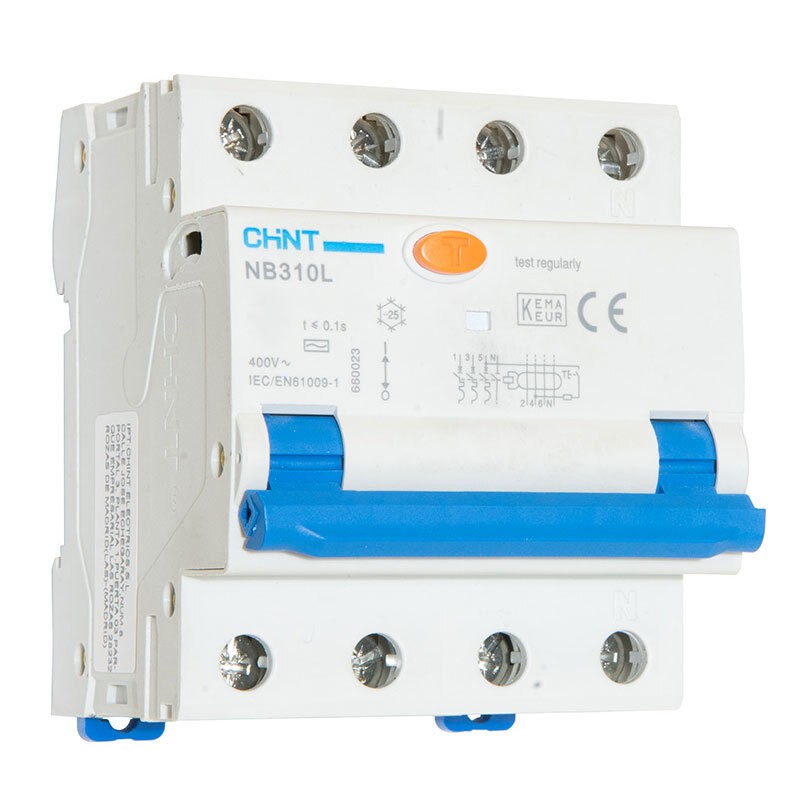

Chint Residual Current Operated Circuit Breaker NB310L-3PN 40A 3P+N 6KA 300MA 4 Modules 255675

Chint
CHT 255675 6941498999459

Chint NB310L-3PN Residual Current Operated Circuit Breaker with the following characteristics:



  • Number of Poles: 3P+N
  • Rated current: 40A
  • Type: A
  • Curve C
  • Rated differential current: 300 mA
  • Rated breaking capacity: 6 kA
  • Rated voltage: 400 Vac
  • Number of Modules: 4
  • Degree of protection: IP20
Do you have questions about this product or did you not find what you were looking for? Ask us!
Chint Residual Current Operated Circuit Breaker NB310L-3PN 40A 3P+N 6KA 300MA 4 Modules 255675
€126.88
€126.88

€126.88
Tax included
Items Available: 1
Further availability of the manufacturer
€126.88

Buy it within and receive it from Friday, 14 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The Residual Current Operated Circuit Breaker is located next to the circuit breaker and integrates a magnetic protection to a thermal one, and in case of need it interrupts the electric current. The thermal-magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal features.



The Residual Current Operated Circuit Breaker in the electrical system integrates three different protections:

  • The magnetic one for short circuits that can endanger an entire building with the danger of fire
  • The thermal one for overloads in the power supply (e.g., more than one appliance in operation)
  • The differential one proper to the earth leakage circuit breaker, which protects the subject from a current leakage



The Residual Current Operated Circuit Breaker type A tripping is ensured for alternating sine differential currents and unidirectional pulsating differential currents applied suddenly or slowly increasing (IEC 61008-1).



Compact NB310L series 6kA magnetothermal/differential circuit breakers. Particularly suitable for line protection against overloads and short circuits, as well as against direct contacts. Intended for civil, tertiary and industrial applications.



Features:

  • Reference standard: IEC/EN 61009-1
  • Number of Poles: 3P+N
  • Rated current: 40 A
  • Tripping curve: C
  • Rated voltage: 400 Vac
  • Rated frequency: 50/60 Hz
  • Isolation voltage: 500 Vac
  • Impulse voltage: 4 kV
  • Rated breaking capacity: 6 kA
  • Rated service interrupting capacity: 6 kA
  • Power Dissipation: 17 W
  • Number of DIN modules (1 DIN = 18 mm): 4
  • Degree of protection: IP20
  • Dimensions: 86x72x78 mm (HxWxD)

There are no reviews

Data sheet

Voltage:
400VAC
Modules:
4
Poles:
3P+N
Curve:
C
Breaking capacity:
6KA
RCD Type:
A
Differential current :
0.3A
Degree of protection:
IP20
Amps:
40A
Circuit Protections:
RCBO
