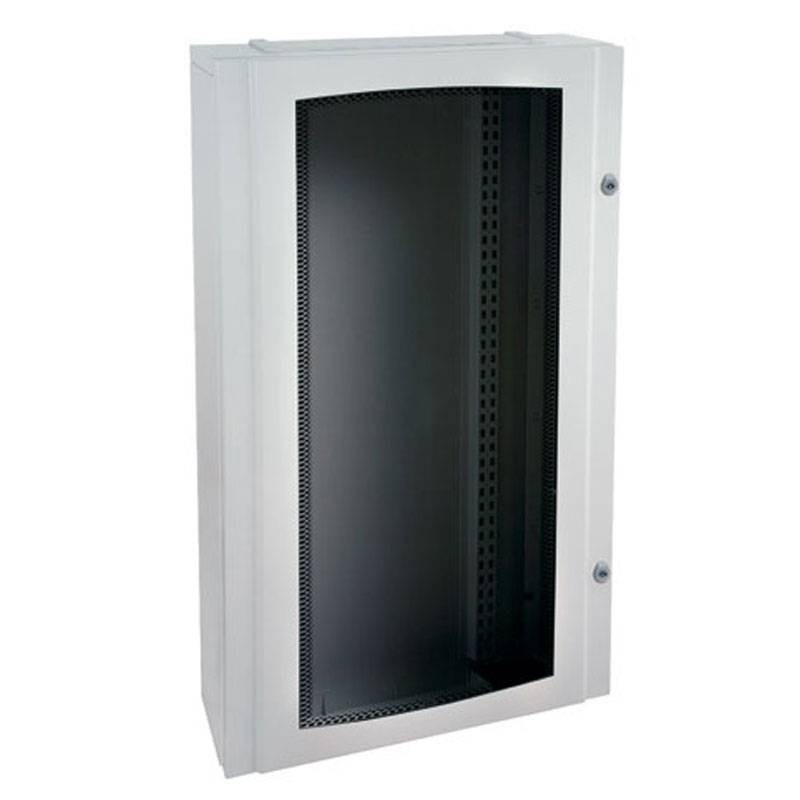

Chint Atlantic 144M Watertight Box Transparent Door CHT28039
CHT CHT28039
8431044074917
Chint Atlantic watertight box with transparent door without accessories with the following features:
- DIN base modularity: 144
- Degree of protection: IP65
- Colour: White
- Dimensions: 1310x670x212 mm (H-L-P)
- Material: Metal (structure and paneling)
Compatible accessories, to be purchased separately codes : CHT28824 - CHT48013 - CHT48427.
€628.43
€597.01
Lowest price in 30 days:
€628.43
Save 5%
€597.01
Tax included
Tax included
Items Available: 2
: 1
Frequently bought together
Atlantic series modular boxes made of metal material and epoxy powder coating, suitable for civil and industrial environment.
Features:
- Operating current Ie at 400V: 630 A
- Insulation voltage: 1000 Vac
- Impulse voltage: 8 kV
- Rated short-time withstand current: 33 kA
- Peak current: 69 kA
- Degree of impact resistance: IK09
- Combination of Numbers of modules with panel height 144 mod. with pann. H=200 mm - 192 mod. with pann. H=150 mm
- With transparent door
- Without accessories
- Ambient temperature in normal operating condition: -25/+40 degrees
- Matching accessories: Blind/modular panel, Adjustable plate, Support and depth adjustment kit, Key lock, Fixing kit
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP65
- Model: Glass Door
