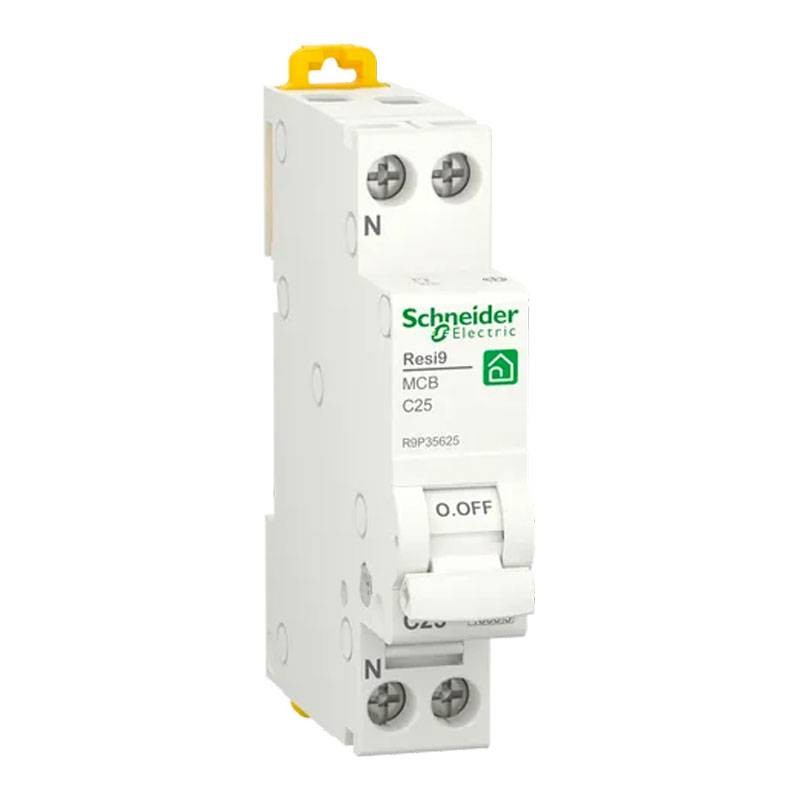

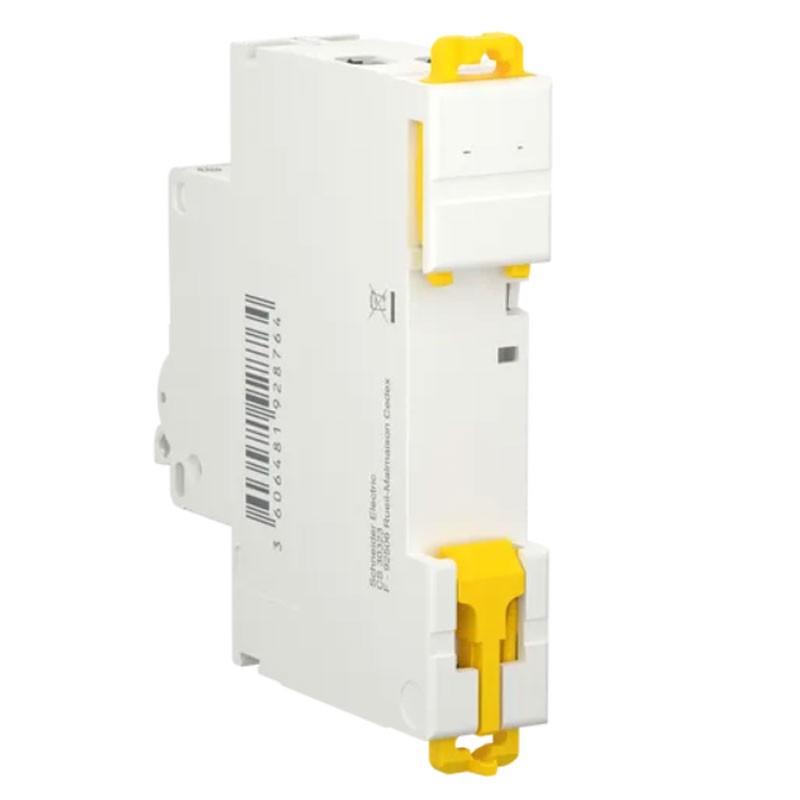

Schneider Circuit Breaker 25A 1P+N 4.5 kA 1M R9P35625
SNR R9P35625
3606481928764
Schneider MCB circuit breaker with the following features:
- Number Of Poles: 1P + N
- Rated Current: 25 Amps
- Breaking Capacity: 4.5 kA
- Network Type: AC
- Curve C
- Number Of Modules: 1
Schneider Circuit Breaker 25A 1P+N 4.5 kA 1M R9P35625
€6.04
€6.04
Tax included
Tax included
Items Available: 78
: 20
Further Schneider circuit breaker combinations:
Curve C, trip threshold 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic systems, residential and functional buildings.
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
Characteristics:
- Mains frequency: 50/60 Hz
- Rated operating voltage: 230V AC
- Control type: Lever
- ON/OFF indication
- Installation: Hook-on
- DIN rail installation
- Dimensions: 81x18x70.5 (H-L-P)
- Color: White
- Mechanical life span: 20000 cycles
- Electrical durability: 7500 cycles
- Tightening torque: 2 Nm upper or lower part
- Degree of protection: IP20
- Ambient temperature: -25/+60 °C
- Storage temperature: -40/+60 °C
El artículo llegó de forma correcta. Todo como se describía.
Precio-calidad excelente.
Todavía no lo he probado, pero me ha gustado su aspecto.
Envío rapidísimo.
Pienso que el embalaje es un poco flojo.
Producto de calidad,nuevo y en perfecto estado
Data sheet
- Voltage:
- 230VAC
- Modules:
- 1
- Poles:
- 1P+N
- Curve:
- C
- Breaking capacity:
- 4.5KA
- Amps:
- 25A
- Circuit Protections:
- Circuit breakers
