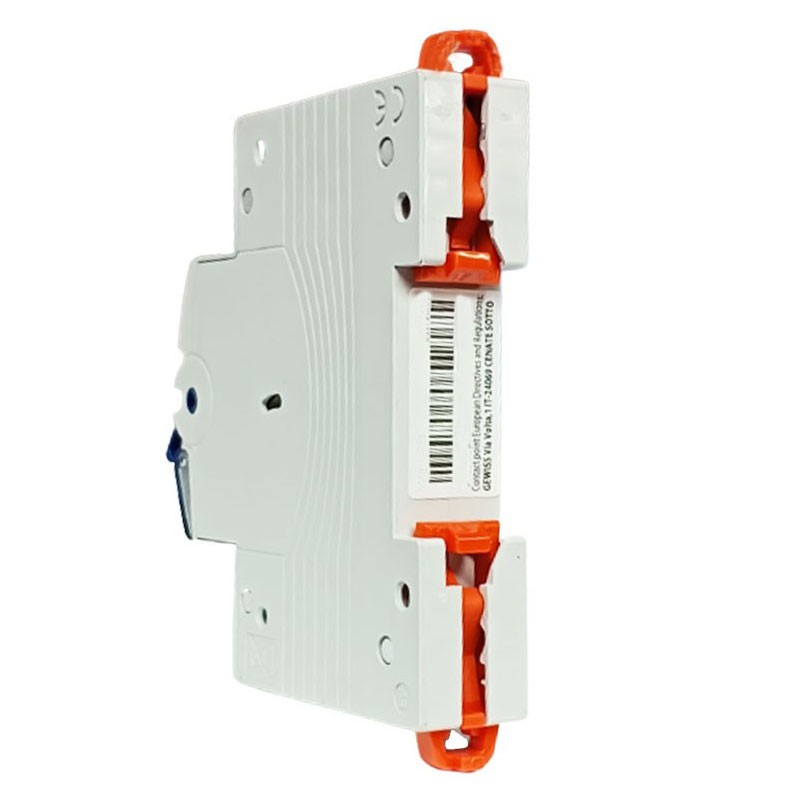

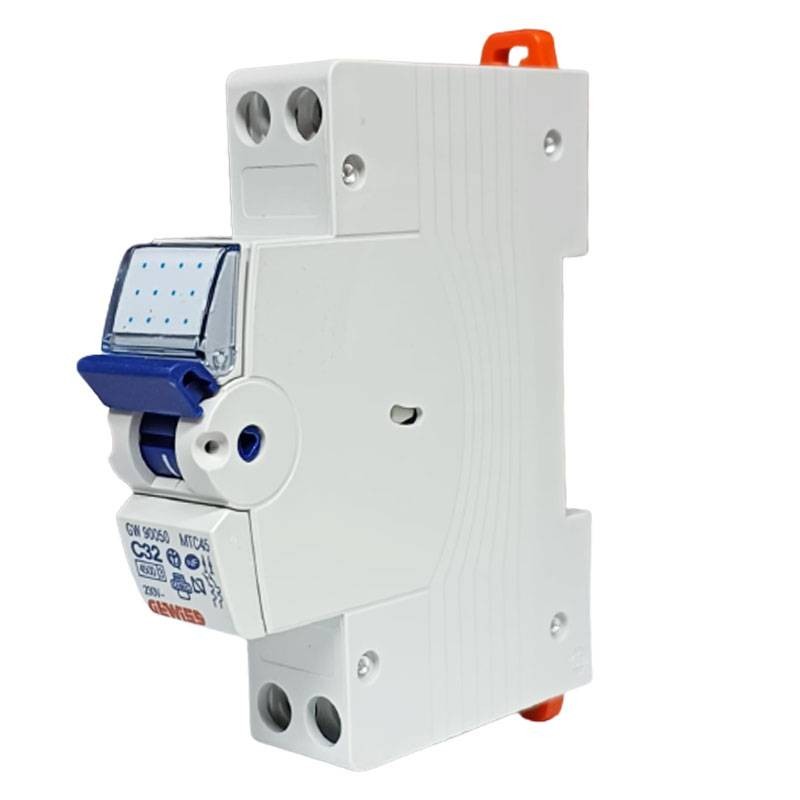

Gewiss Magnetothermal Circuit Breaker 32A 2P 4.5KA C 1 Module GW90050

Gewiss
GEW GW90050 8011564056558

Gewiss Magnetothermal Circuit Breaker 32A 2P 4.5KA C 1 Module with the following characteristics:

  • Symbol: MTC 45
  • Number of poles: 2P
  • Number of modules: 1
  • Rated current: 32A
  • Curve C
  • Rated voltage: 230V
  • Interrupting power: 4500A
Do you have questions about this product or did you not find what you were looking for? Ask us!

Gewiss Magnetothermal Circuit Breaker 32A 2P 4.5KA C 1 Module GW90050

€9.68
€9.68

Gewiss Magnetothermal Circuit Breaker 32A 2P 4.5KA C 1 Module GW90050

€9.68
Tax included
Items Available: 34
Further availability of the manufacturer

Gewiss Magnetothermal Circuit Breaker 32A 2P 4.5KA C 1 Module GW90050

€9.68

Buy it within and receive it from Thursday, 19 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Further Gewiss circuit breaker combinations:

Curve C can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic systems.


A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.

The MCB Series 90 meets any requirement for overload and short-circuit protection, for all civil, tertiary and industrial applications. The range consists of MTC, compact circuit breakers (2 to 32A, curves B and C up to 10kA) MT traditional circuit breakers (1 to 63A, curves B, C and D up to 25kA) MTHP high performance circuit breakers (20 to 125A, curves C and D up to 25kA).

Features:

  • Reference standard: EN 60898, EN 60947-2
  • Rated frequency: 50/60 Hz
  • Interrupting capacity EN 60898 230V (Icn): 4500 A
  • Interrupting capacity EN 60898 (Ics): 1 x Icn
  • Interrupting capacity EN 60947-2 230V (Icu): 7.5 kA
  • Interrupting capacity EN 60947-2 (Ics): 100% Icu
  • Isolation voltage: 500V
  • Rated impulse withstand voltage: 4 kV
  • Minimum operating voltage: 12 V ac/dc
  • Maximum operating voltage: 440 V ac / 220 V dc
  • Number of electrical maneuvers: 10,000
  • Number of mechanical maneuvers: 20,000
  • Rigid cable cross section: <=1x16 - <=1x10+1x6 mm²
  • Flexible cable cross section: <=1x10 - <=2x6 mm²
  • Nominal tightening torque: 1.2 Nm
  • Operating temperature: -25/+60 degrees
  • Storage temperature: -40/+70 degrees

There are no reviews

Data sheet

Voltage:
230VAC
Modules:
1
Poles:
1P+N
Curve:
C
Breaking capacity:
4.5KA
Amps:
32A
Circuit Protections:
Circuit breakers
