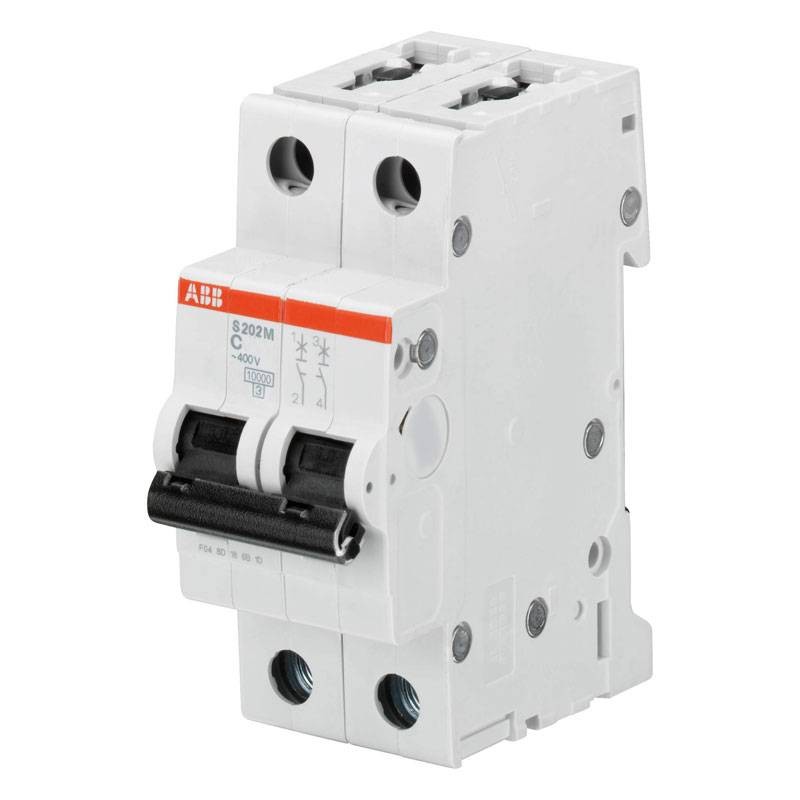

Abb Circuit breaker S202M 50A 2P 10KA C 2 Modules S543972
ABB S543972
4016779605793
Abb series S202M Circuit breaker:
- 50A rated current
- 2 Poles
- Rated short-circuit capacity 10KA
- Type C
- 2 Modules
- Rated operating voltage: 400V
Abb Circuit breaker S202M 50A 2P 10KA C 2 Modules S543972
€73.52
€73.52
Tax included
Tax included
Items Available: 3
Frequently bought together
System pro M compact S200 circuit breakers protect installations from overloads and short circuits, ensuring reliability and safe operations.
All circuit breakers in the S200 range comply with CEI-EN 60898-1, CEI- EN 60947-2 and UL1077 and CSA 22.2 No. 235 (except the 4.5kA version), allowing use in residential, commercial and industrial applications.
Can be associated with DDA 200 series differential blocks.
Curve C can tolerate short-duration overcurrents up to five to ten times the rated current and is widely used in domestic installations.
Features:
- Reference Standards: IEC/EN 60898-1 - CSA 22.2 No. 235 - IEC/EN 60947-2 - UL 1077
- Tripping characteristic: C
- Rated operating voltage: according to IEC 60898-1 400 V AC - according to IEC 60898-1 400 V - according to IEC 60947-2 440 V AC
- Operating voltage: Maximum (Incl. Tolerance) 125 V DC - Maximum (Incl. Tolerance) 440 V AC - Minimum 12 V AC - Minimum 12 V DC
- Rated insulation voltage (Ui): according to IEC/EN 60664-1 440 V
- Impulse withstand voltage (Uimp): 4 kV - at 2000 m 5 kV - at Sea Level 6.2 kV
- Dielectric proof voltage: 50/60 Hz, 1 min: 2 kV
- Input voltage type: AC/DC
- Rated current (In): 50 A
- Rated short-circuit capacity: (AC) 10 kA - (230 V AC) 10 kA - (400 V AC) 10 kA
- Rated extreme short-circuit capacity (Icu): (230 V AC) 25 kA - (400 V AC) 15 kA - (440 V AC) 15 kA - (230 V) 25 kA - (400 V) 15 kA
- Rated conditional short-circuit current (Inc): (230 V) 10 kA - (400 V) 20 kA
- Rated service short-circuit capacity (Ics): (133 V AC) 15 kA - (230 V AC) 7.5 kA
- requency (f): 50 Hz
- Rated frequency (f): 50 / 60 Hz
- Power loss: 6.5 W at Rated Operating Conditions per pole 3.25 W
- Power supply voltage connection: Arbitrary
- Contact position indication: Red ON / Green OFF
- Energy limitation class: 3
- Electrical resistance: 10000 AC cycle(s)
- Mechanical resistance: 20000 cycle(s)
- Number of protected poles: 2
- Number of poles: 2
- Overvoltage category: III
- Tightening torque: 2.8 N-m
- Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal
- Actuator Marking: I / O
- Actuator Material: Insulation Group II, Black, Sealable
- Enclosure Material: Insulation Class II, RAL 7035
- DIN Rail Mounting: TH35-15 (35 x 15 mm Mounting Rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm Mounting Rail) according to IEC 60715
- Mounting Position: Any
- Recommended Screwdriver: Pozidriv 2
- Accessories Available: Yes
- Connection Capacity: Busbar 10 / 10 mm² - Flexible with Ferrule 0.75 ... 25 mm² - Flexible 0.75 ... 25 mm² - Flexible 0.75 ... 25 mm² - Rigid 0.75 ... 35 mm² - Rigid 0.75 ... 35 mm² - Stranded 0.75 ... 35 mm²
- Installation dimensions: according to DIN 43880 1
- Terminal type: Screw Terminals
- Ambient temperature: In operation -25 ... +55 °C - In storage -40 ... +70 °C
- Ambient air reference temperature: 30 °C
- Degree of protection: IP20
- Width in number of modular intervals: 2.0
- Product width: 35 mm
- Product height: 88 mm
- Product depth: 69 mm
- Product net weight: 0.25 kg
- Net pole weight: 0.125 kg
- Built-in depth (t2): 69 mm.
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 2
- Poles:
- 2P
- Curve:
- C
- Breaking capacity:
- 10KA
- Degree of protection:
- IP20
- Amps:
- 50A
- Circuit Protections:
- Circuit breakers
