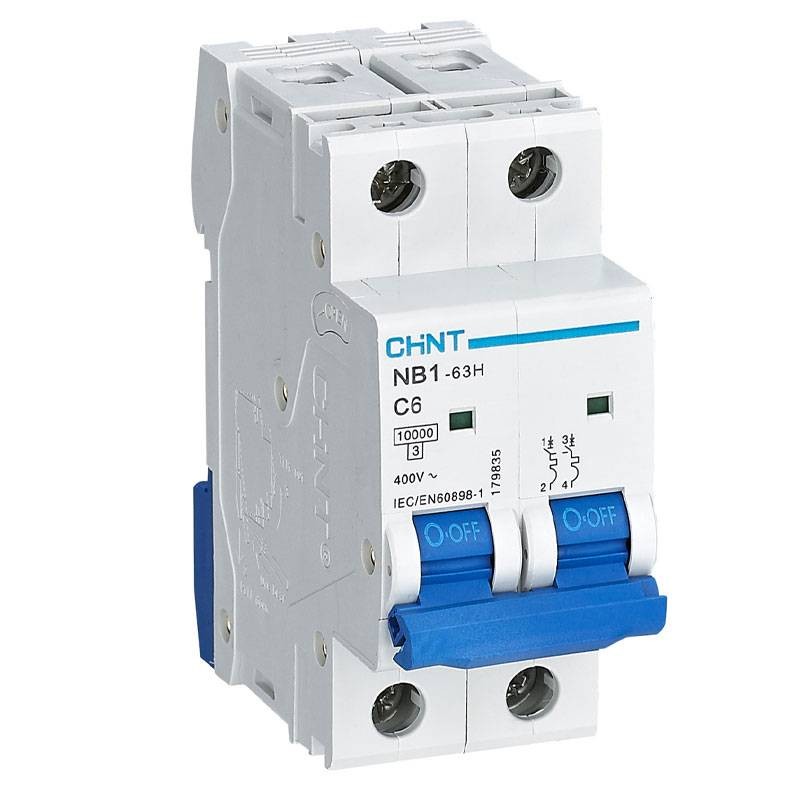

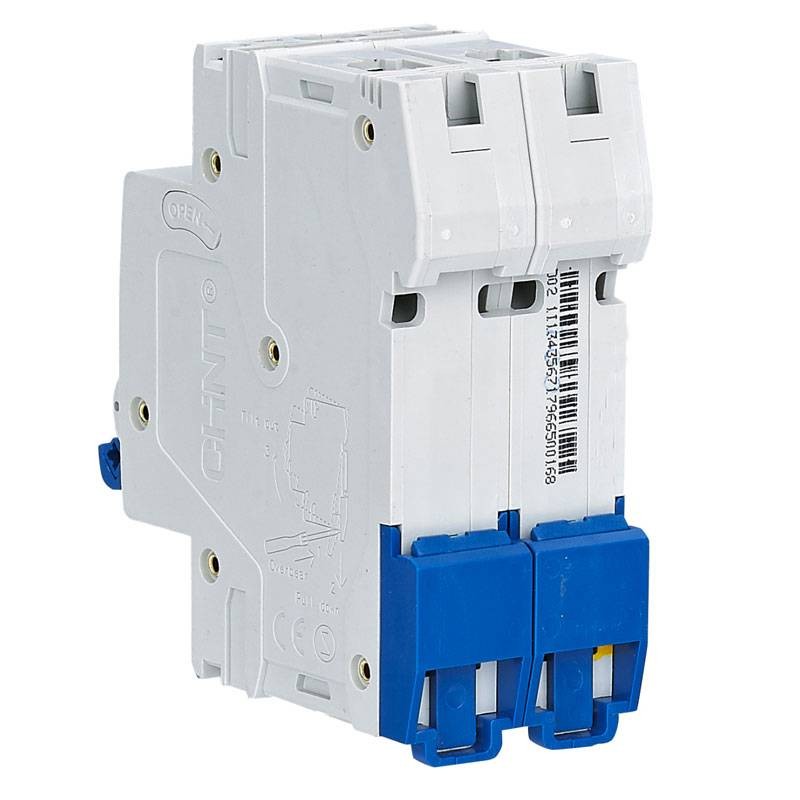

Chint Circuit Breaker NB1-63H 2P 6A 10kA C 2 Modules 179835
CHT 179835
6925808304232
Chint Circuit Breaker NB1-63H with the following characteristics:
- Number of Poles: 2P
- Rated current: 6 A
- Tripping curve C
- Rated voltage: 400 Vac
- Breaking capacity: 10 kA
- Number of Modules: 2
- Degree of protection: IP20
Chint Circuit Breaker NB1-63H 2P 6A 10kA C 2 Modules 179835
€26.84
€26.84
Tax included
Tax included
Items Available: 7
: 4
Frequently bought together
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic systems.
Features:
- Rated frequency: 50/60 Hz
- Isolation voltage: 500 Vac
- Impulse voltage: 6 kV
- Rated breaking capacity Icn: 10 kA
- Extreme breaking capacity Icu: 15 kA
- Rated service interrupting capacity Ics: 7.5 kA
- Class of limitation: 3
- Power Dissipation: 4.8 W
- Number of Modules: 2
- Degree of protection: IP20
- Dimensions: 86x36x78 mm (HxWxD)
- Can be used in systems up to 125 V direct current
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 2
- Poles: 2P
- Curve: C
- Breaking capacity: 10KA
- Degree of protection: IP20
- Amps: 6A
- Circuit Protections: Circuit breakers
