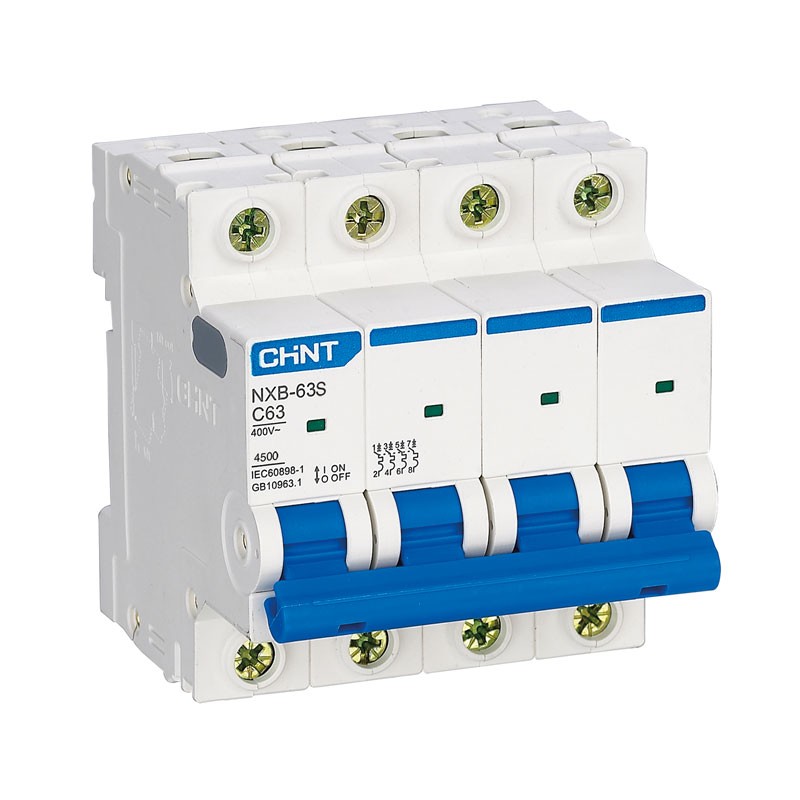

Chint Circuit Breaker EB 4P 63A 4.5kA C 4 Modules 186804
CHT 186804
6925808316129
Chint EB circuit breaker with the following characteristics:
- Number of Poles: 4P
- Rated current: 63 A
- Tripping curve C
- Rated voltage: 400 Vac
- Breaking capacity: 4.5 kA
- Number of Modules: 4
- Degree of protection: IP20
Chint Circuit Breaker EB 4P 63A 4.5kA C 4 Modules 186804
€58.92
€58.92
Tax included
Tax included
Items Available: 2
: 1
Frequently bought together
EB series circuit breakers for overcurrent protection. Especially suitable for overload and short-circuit protection in terminal distribution. Can be accessorized with trip coil and minimum voltage coil. Not accessorizable with auxiliary contacts and differential modules.
A circuit breaker is a safety device capable of automatically (i.e., without external intervention) interrupting the flow of electric current in an electrical circuit in the event of an overcurrent.
The C-curve can tolerate short-duration overcurrents up to five to ten times the rated current and is widely used in domestic systems.
Features:
- Rated frequency: 50/60 Hz
- Isolation voltage: 500 Vac
- Impulse voltage: 4 kV
- Rated breaking capacity Icn: 4.5 kA
- Extreme breaking capacity Icu: 6 kA
- Rated service interrupting capacity Ics: 4.5 kA
- Limitation class: 3
- Power Dissipation: 20 W
- Number of Modules: 4
- Degree of protection: IP20
- Dimensions: 80x72x77.8 mm (HxWxD)
- Can be used in systems up to 125 V direct current
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 4
- Poles:
- 4P
- Curve:
- C
- Breaking capacity:
- 4.5KA
- Degree of protection:
- IP20
- Amps:
- 63A
- Circuit Protections:
- Circuit breakers
