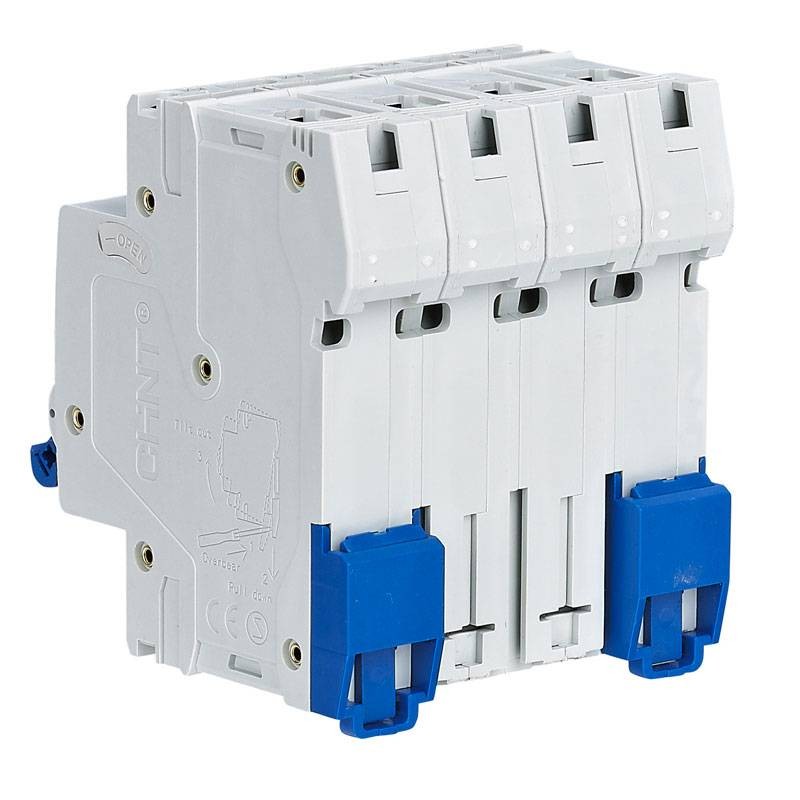

Chint Circuit Breaker NB1-63H 4P 40A 10kA C 4 Modules 179917
CHT 179917
6925808305055
Chint Circuit Breaker NB1-63H with the following characteristics:
- Number of Poles: 4P
- Rated current: 40 A
- Tripping curve C
- Rated voltage: 400 Vac
- Breaking capacity: 10 kA
- Number of Modules: 4
- Degree of protection: IP20
Chint Circuit Breaker NB1-63H 4P 40A 10kA C 4 Modules 179917
€68.38
€68.38
Tax included
Tax included
Items Available: 8
: 4
Frequently bought together
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic systems.
Features:
- Rated frequency: 50/60 Hz
- Isolation voltage: 500 Vac
- Impulse voltage: 6 kV
- Rated breaking capacity Icn: 10 kA
- Extreme breaking capacity Icu: 15 kA
- Rated service interrupting capacity Ics: 7.5 kA
- Class of limitation: 3
- Power Dissipation: 18.4 W
- Number of Modules: 2
- Degree of protection: IP20
- Dimensions: 86x72x78 mm (HxWxD)
- Can be used in systems up to 125 V direct current
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 4
- Poles:
- 4P
- Curve:
- C
- Breaking capacity:
- 10KA
- Degree of protection:
- IP20
- Amps:
- 40A
- Circuit Protections:
- Circuit breakers
