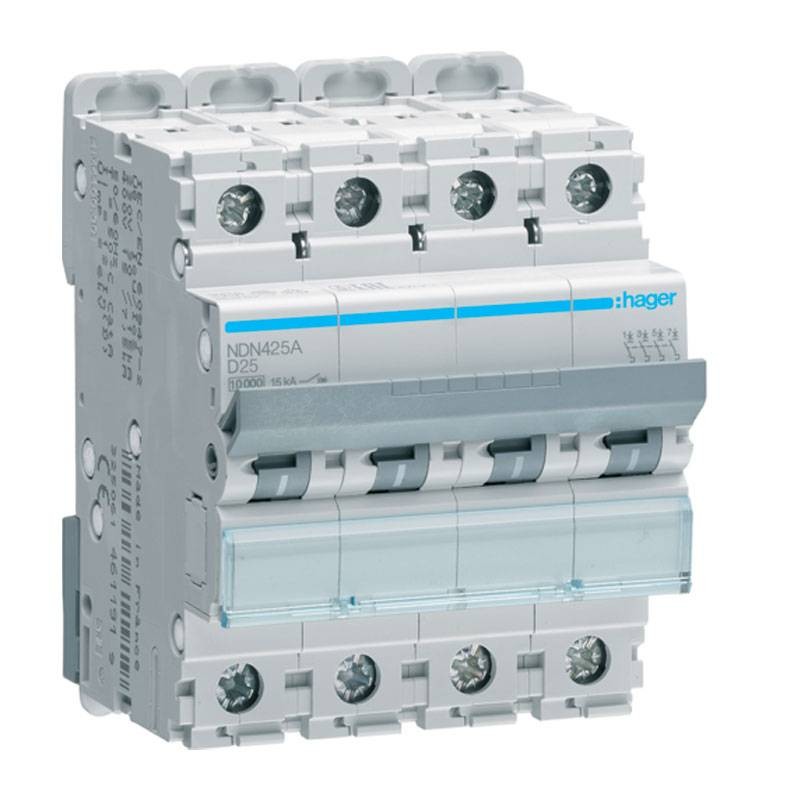

Hager 4P 25A 10KA Automatic Magnetothermal Circuit Breaker Curve D 4M NDN425A

Hager
HAG NDN425A 3250614619410

Hager Automatic Magnetothermal Circuit Breaker with the following features:

  • Number of poles: 4P
  • Rated current: 25 amps
  • Rated breaking capacity: 10 kA
  • Rated operating voltage: 400V
  • Type of supply voltage: AC
  • Curve D
  • Number of modules: 4
  • Tightening torque: 2.8 Nm
  • Enclosure degree of protection: IP20
Do you have questions about this product or did you not find what you were looking for? Ask us!

Hager 4P 25A 10KA Automatic Magnetothermal Circuit Breaker Curve D 4M NDN425A

€120.58
€120.58

Hager 4P 25A 10KA Automatic Magnetothermal Circuit Breaker Curve D 4M NDN425A

€120.58
Tax included
Items Available: 3
Further availability of the manufacturer

Hager 4P 25A 10KA Automatic Magnetothermal Circuit Breaker Curve D 4M NDN425A

€120.58

Buy it within and receive it from Wednesday, 8 January
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.


The D curve, trip threshold of 10 to 20 times In, for application of circuits with high inrush currents (motors, transformers, etc.).


Features:

  • Mounting mode: DIN rail
  • Rated insulation voltage: 500 V
  • Rated fault holding current: 6000 V
  • Minimum threshold voltage (Ue min): 12 V
  • Frequency (ETIM numerical value range): 50 to 60 Hz
  • Maximum power dissipated per pole according to product standard: 4.5 W
  • Total power dissipation: 14.75 W
  • Power dissipation per pole: 3.75 W
  • Electrical life and number of cycles: 4000
  • Number of maneuvers (mechanical lifetime): 20000
  • High connection type for modular products: screw clamp
  • Tightening torque: 2.8 Nm
  • Low connection type for modular products: plastic
  • Low connection type for modular products: quickconnect clamp
  • Top removal for modular fixtures
  • Bottom removal for modular products
  • Suitable for flush mounting
  • Accessory
  • With transparent label holder
  • Operating temperature: -25/+70 °C
  • Storage/transport temperature: -25/+80 °C
  • Calibration temperature: 50 °C
  • Altitude: 2000m
  • Product depth: 70 mm
  • Product height: 83 mm
  • Product width: 70 mm

There are no reviews

Data sheet

Voltage:
400VAC
Modules:
4
Poles:
4P
Curve:
C
Breaking capacity:
10KA
Degree of protection:
IP20
Amps:
25A
Circuit Protections:
Circuit breakers
