Siemens 4P 20A 10KA Circuit Breaker 4M C 5SL44207
SIE 5SL44207
4001869440729
Siemens 5SL4 circuit breaker with the following characteristics:
- Number of poles: 4
- Rated current: 20 amps
- Rated short-circuit rating: 10 kA
- Voltage: 400V AC
- Tripping curve: Curve C (for inductive loads)
- Number of modules: 4
It is suitable for industrial or commercial installations with motors or large electrical equipment. It occupies 4 modules in electrical panels.
€62.45
€59.33
Lowest price in 30 days:
€62.45
Save 5%
€59.33
Tax included
Tax included
Items Available: 106
: 17
Further Siemens circuit breaker combinations:
Frequently bought together
The Siemens circuit breaker, is a 4-pole protective device that supports a rated current of 20A. It has an interrupting capacity of 10KA, which is ideal for circuits with inductive loads due to its tripping curve C, which trips when the current exceeds 5 to 10 times the rated current.
The C trip curve of a circuit breaker is designed to protect circuits that handle inductive loads, such as motors, transformers or equipment with high inrush currents.
This curve is triggered when the current exceeds 5 to 10 times the rated value, allowing the system to tolerate temporary current spikes without tripping the device unnecessarily.
It is ideal for industrial and commercial installations, where temporary overload is common at the startup of energy-intensive devices.
Features:
- Number of poles: 4
- Class of trip characteristic C
- Mechanical service life (trip cycles) typ. 10 000
- Overvoltage category III
- Pollution degree 2
- Insulation voltage at maximum DC rating: 440V
- Protection class: IP20, with conductors connected

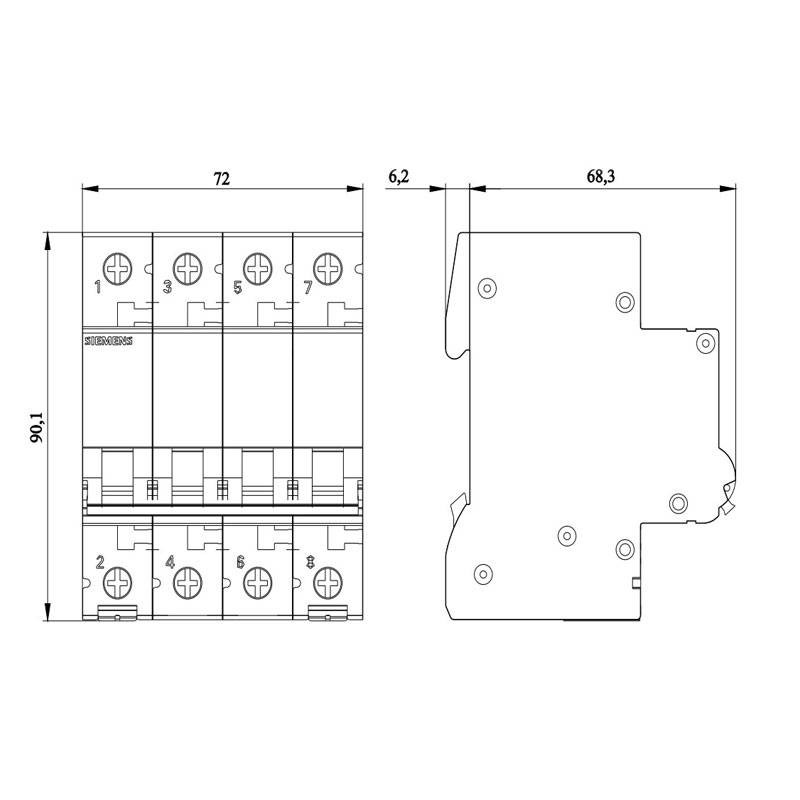

- Height: 90mm
- Width: 72 mm
- Depth 76 mm
- Number of width modular units 4
- Ambient temperature during operation: -25/+55 degrees
- Ambient temperature during storage: -40/+75 degrees
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 4
- Poles: 4P
- Curve: C
- Breaking capacity: 10KA
- Amps: 20A
- Circuit Protections: Circuit breakers
