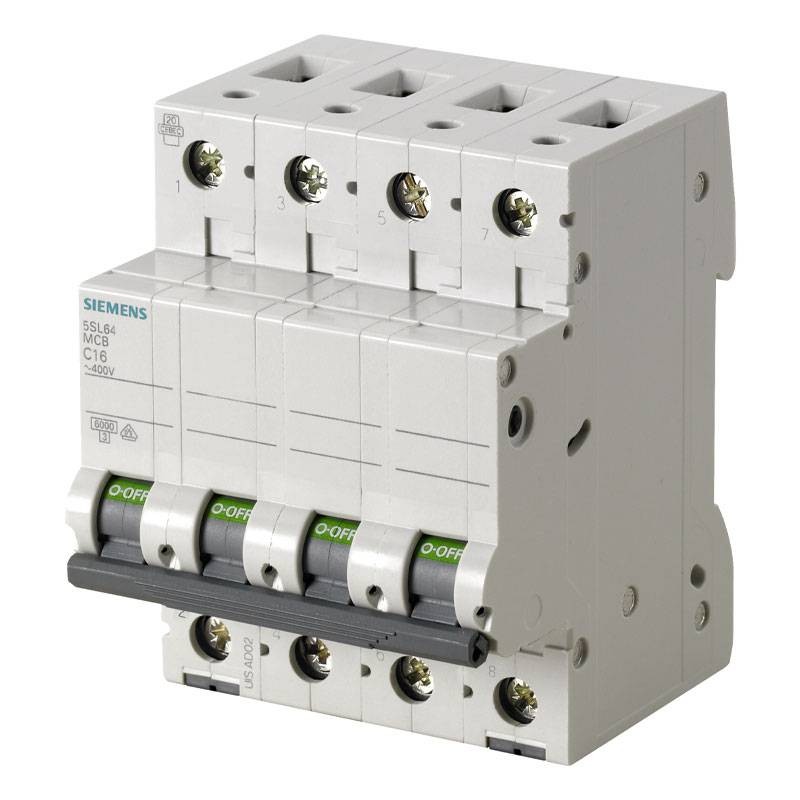

Siemens circuit breaker 4P 25A 6KA 4M B 5SL64256BB
SIE 5SL64256BB
4001869389165
Siemens 5SL6 circuit breaker with the following characteristics:
- Number of poles: 4
- Rated current: 25 amps
- Rated short-circuit rating: 6 kA
- Voltage: 400V AC
- Tripping curve: Curve B (suitable for protecting circuits with normal loads)
- Number of modules: 4
Ideal for overload and short-circuit protection in residential and commercial installations. Easy to mount on modular electrical panels.
€56.25
€53.44
Lowest price in 30 days:
€56.25
Save 5%
€53.44
Tax included
Tax included
Items Available: 3
: 1
Frequently bought together
The circuit breaker is an ideal protective device for residential and commercial electrical systems. Designed to automatically interrupt current flow in the event of an overload or short circuit.
The trip curve B of a circuit breaker is designed to intervene quickly in the event of an overload or short circuit, protecting circuits with normal loads, such as those found in residential or commercial installations. Here are the main features:
- Magnetic trip: Triggers when the current exceeds 3 to 5 times the rated current
- Common use: Circuits with resistive loads, such as lights or small appliances
- Fast tripping time: Ideal for protection of electronic devices sensitive to overcurrents
Features:
- Number of poles: 4
- Class of trip characteristic B
- Mechanical service life (switching cycles) typ. 10 000
- Overvoltage category III
- Pollution degree 2
- Insulation voltage at maximum DC rating: 440V
- Protection class: IP20, with conductors connected

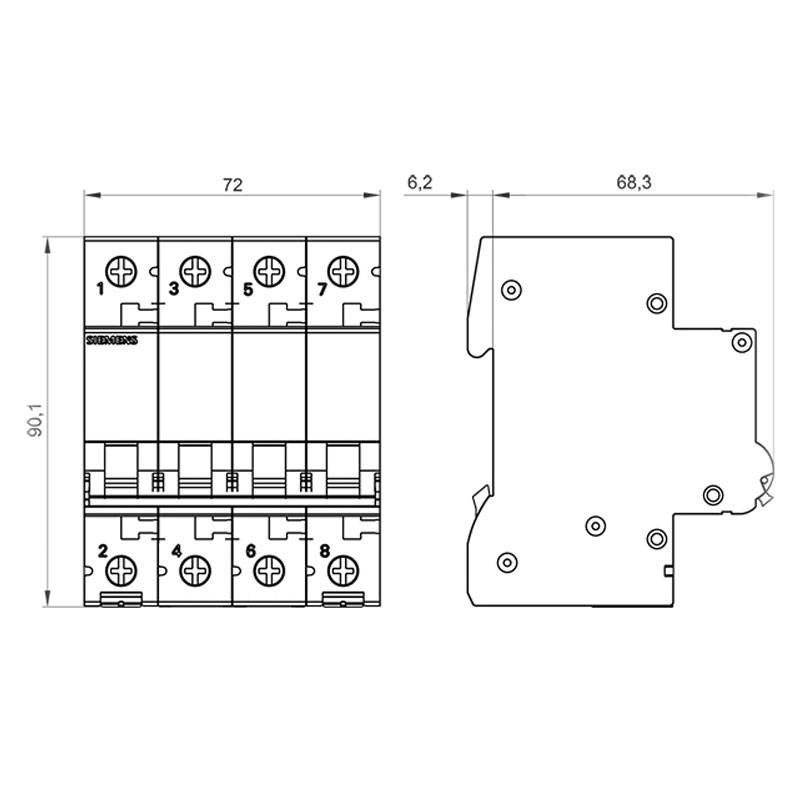

- Height: 90mm
- Width: 72 mm
- Depth 76 mm
- Number of width modular units 4
- Ambient temperature during operation: -25/+45 degrees
- Ambient temperature during storage: -40/+75 degrees
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 4
- Poles: 4P
- Curve: B
- Breaking capacity: 63KA
- Amps: 25A
- Circuit Protections: Circuit breakers
