Siemens circuit breaker 4P 32A 6KA 4M B 5SL64326BB


SIE 5SL64326BB 4001869389172

Siemens 5SL6 circuit breaker with the following characteristics:



  • Number of poles: 4
  • Rated current: 32 amps
  • Rated short-circuit rating: 6 kA
  • Voltage: 400V AC
  • Tripping curve: Curve B (suitable for protecting circuits with normal loads)
  • Number of modules: 4



Ideal for overload and short-circuit protection in residential and commercial installations. Easy to mount on modular electrical panels.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens circuit breaker 4P 32A 6KA 4M B 5SL64326BB
€56.25
€53.44
€53.44

Lowest price in 30 days:
€56.25
Save 5%
€53.44
Tax included

€53.44

Buy it within and receive it from Tuesday, 18 March
Two-year warranty
Easy return within 14 days

The circuit breaker is an ideal protective device for residential and commercial electrical systems. Designed to automatically interrupt current flow in the event of an overload or short circuit.


The trip curve B of a circuit breaker is designed to intervene quickly in the event of an overload or short circuit, protecting circuits with normal loads, such as those found in residential or commercial installations. Here are the main features:

  • Magnetic trip: Triggers when the current exceeds 3 to 5 times the rated current
  • Common use: Circuits with resistive loads, such as lights or small appliances
  • Fast tripping time: Ideal for protection of electronic devices sensitive to overcurrents



Features:

  • Number of poles: 4
  • Class of trip characteristic B
  • Mechanical service life (switching cycles) typ. 10 000
  • Overvoltage category III
  • Pollution degree 2
  • Insulation voltage at maximum DC rating: 440V
  • Protection class: IP20, with conductors connected

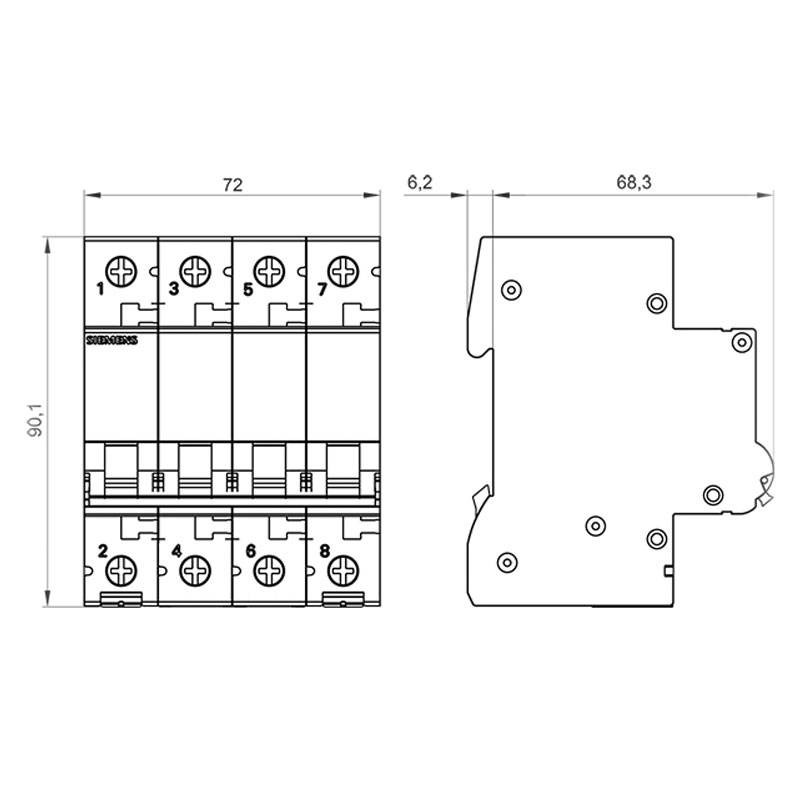

  • Height: 90mm
  • Width: 72 mm
  • Depth 76 mm
  • Number of width modular units 4
  • Ambient temperature during operation: -25/+45 degrees
  • Ambient temperature during storage: -40/+75 degrees

Data sheet

Voltage:
400VAC
Modules:
4
Poles:
4P
Curve:
B
Breaking capacity:
6KA
Amps:
32A
Circuit Protections:
Circuit breakers
