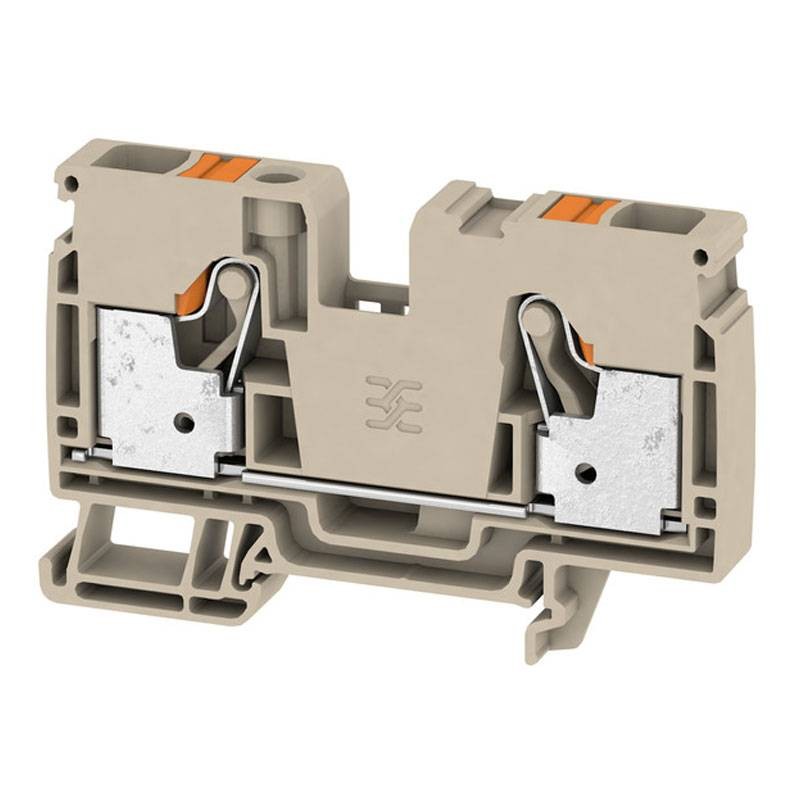

Weidmuller Push-In Through Clamp 10mmq Beige 2490360000
WEI 2490360000
4050118500813
Weidmuller Push-In 1-plane feed-through terminal:
- 10 mm² sizing cross-section
- Rated voltage 1,000 V
- Rated DC voltage 1,000 V
- Rated current 57 A
- Current with conductor max. 57 A
- DIN EN 60947-7-1 Standards
- IEC 60947-7-x-compliant pass resistance 0.56 m ?
- Rated impulse voltage 8 kV
- Power dissipation in accordance with IEC 60947-7-x 1.82 W
- Overvoltage class III
- Corrosion degree 3
Weidmuller Push-In Through Clamp 10mmq Beige 2490360000
€2.16
€2.16
Tax included
Tax included
Items Available: 29
: 20
Power through energy, signal, and data is the classic requirement in electrical engineering and switchboard construction. Insulating material, connection technique and design of modular terminal blocks are distinctive features. A feed-through modular terminal block is suitable for joining and/or connecting one or more conductors. They could have one or more connection levels that have the same potential or only insulated against each other.
Features:
- Depth 51.5 mm
- Depth (inches) 2.028 inch
- Depth including DIN rail 52.5 mm
- Vertical position 80.5 mm
- Height (inches) 3.169 inch
- Width 10 mm
- Width (inches) 0.394 inch
- Net weight 32.315 g
- Storage temperature -25 °C...55 °C
- Continuous operating temperature, min. -60 °C
- Continuous operating temperature, max. 130 °C
- Explosion-proof design Yes
- Mounting instructions Supporting rail
- Right open sides
- Type of mounting pluggable
- Mounting type TS 35
- lockable No
- With stop pin No
- End plate (required) Yes
- Number of potentials 1
- Number of planes 1
- Number of clamping points per floor 2
- Number of potentials per floor 1
- TS 35 rail
- Material Wemid
- Colors Dark beige
- Drive element color orange
- Flammability rating UL 94 V-0.
