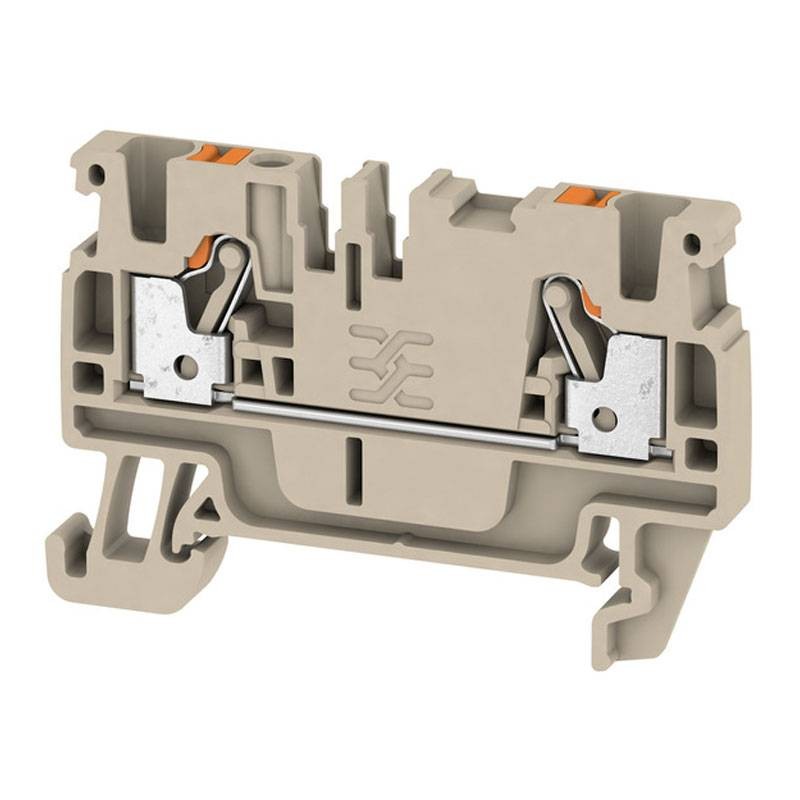

Weidmuller Push-In Through Clamp 2.5mmq Beige 1521850000
WEI 1521850000
4050118328080
Weidmuller Push-In Feed-through Clamp:
- 2.5 mm² sizing cross-section
- Rated voltage 800 V
- Nominal DC voltage 800 V
- Rated current 24 A
- Current with conductor max. 24 A
- IEC 60947-7-1 Standards
- IEC 60947-7-x compliant crossing resistance 1.33 m?
- Rated impulse voltage 8 kV
- Power dissipation in accordance with IEC 60947-7-x 0.77 W
- Overvoltage class III
- Corrosion degree 3
To be purchased separately: terminal plate Weidmuller A-Series Push-In 2 ,5mmq part number 1514400000.
Weidmuller Push-In Through Clamp 2.5mmq Beige 1521850000
€0.84
€0.84
Tax included
Tax included
Items Available: 64
: 2
Frequently bought together
Features:
- Depth 36.5 mm
- Depth (inches) 1.437 inch
- Depth including DIN rail 37 mm
- Vertical position 55 mm
- Height (inches) 2.165 inch
- Width 5.1 mm
- Width (inches) 0.201 inch
- Net weight 6.4 g
- Storage temperature -25 °C...55 °C
- Continuous operating temperature, min. -60 °C
- Continuous operating temperature, max. 130 °C
- Explosion-proof design Yes
- Mounting instructions Supporting rail
- Right open sides
- Type of mounting pluggable
- Mounting type TS 35
- lockable No
- With stop pin No
- End plate (required) Yes
- Number of potentials 1
- Number of planes 1
- Number of clamping points per floor 2
- Number of potentials per floor 1
- PE connection No
- TS 35 Guide
- N function No
- PE function No
- PEN Function No
- Material Wemid
- Color Dark beige
- Drive element color orange
- Flammability rating UL 94 V-0
