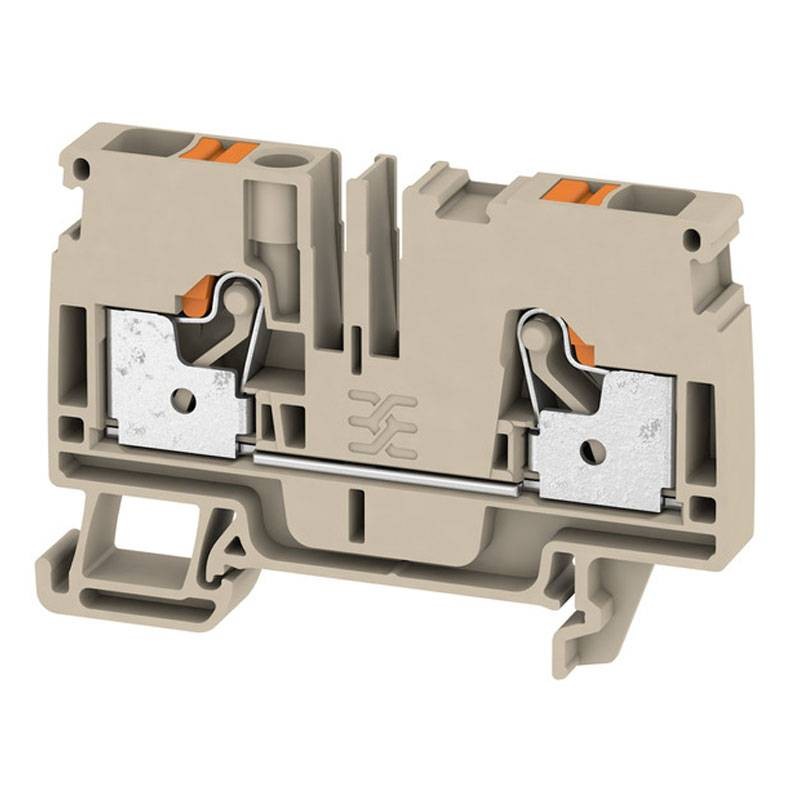

Weidmuller Push-In Through Clamp 6mmq Beige 1992110000
WEI 1992110000
4050118377064
Weidmuller Push-In Feed-through Clamp:
- 6 mm² sizing cross section
- Rated voltage 800 V
- Nominal DC voltage 800 V
- Rated current 41 A
- Current with conductor max. 41 A
- IEC 60947-7-1 Standards
- IEC 60947-7-x-compliant pass resistance 0.78 m?
- Rated impulse voltage 8 kV
- Power dissipation in accordance with IEC 60947-7-x 1.31 W
- Overvoltage class III
- Corrosion degree 3
Weidmuller Push-In Through Clamp 6mmq Beige 1992110000
€1.58
€1.58
Tax included
Tax included
Items Available: 250
: 120
Power through energy, signal, and data is the classic requirement in electrical engineering and switchboard construction. Insulating material, connection technique and design of modular terminal blocks are distinctive features. A feed-through modular terminal block is suitable for joining and/or connecting one or more conductors. They could have one or more connection levels that have the same potential or only insulated against each other.
Features:
- Depth 45.5 mm
- Depth (inches) 1.791 inch
- Depth including DIN rail 46 mm
- Vertical position 66.5 mm
- Height (inches) 2.618 inch
- Width 8.1 mm
- Width (inches) 0.319 inch
- Net weight 16.37 g
- Storage temperature -25 °C...55 °C
- Continuous operating temperature, min. -60 °C
- Continuous operating temperature, max. 130 °C
- Explosion-proof design Yes
- Mounting instructions Supporting rail
- Right open sides
- Type of mounting pluggable
- Mounting type TS 35
- lockable No
- With stop pin No
- End plate (required) Yes
- Number of potentials 1
- Number of planes 1
- Number of clamping points per floor 2
- Number of potentials per floor 1
- PE connection No
- TS 35 Guide
- N function No
- PE function No
- PEN Function No
- Material Wemid
- Color Dark beige
- Drive element color orange
- Flammability rating UL 94 V-0.
