Clivet EZCool Quadri Split Inverter Air Conditioner 12+12+12+12BTU R32 A++/A+


KIT CLVEZ2222

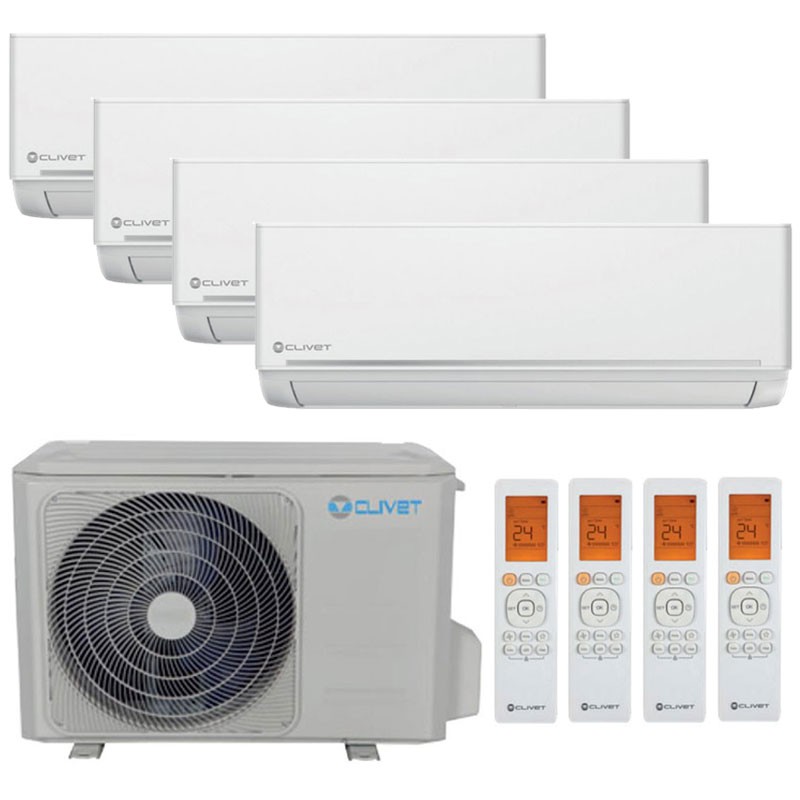

Clivet EZCool Quadri Split inverter air conditioner 12000+12000+12000+12000BTU composed of:



  • 1 outdoor unit 10.5KW (36000BTU) with 4 connections MU2-Y105M

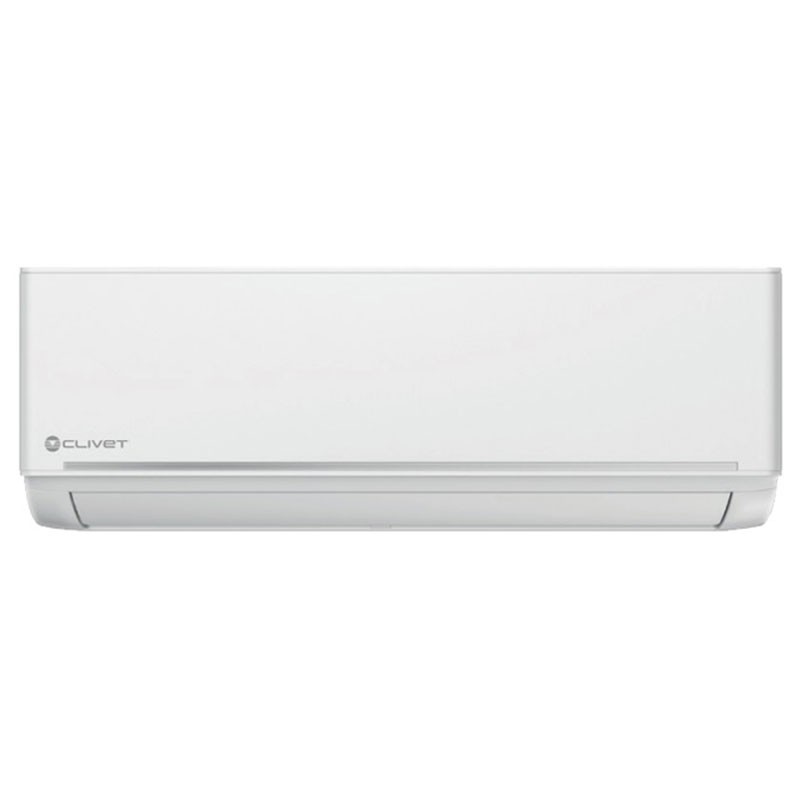

  • 4 indoor split units EZCool Series 12000BTU 3.5KW ILA1-Y35M
  • 4 infrared remote controls (RG10A-D2S-BGEF).




Ability to manage Smart: via smartphone with The NetHome Plus app and provision for voice control with Amazon Alexa and Google Assistant (Wifi to be purchased separately code NWMX).

  • r32
  • taga+v
  • taga++v
  • The air conditioner will be delivered pre-charged with gas R32
    For four rooms of approx. 35m²
    The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
    Do you have questions about this product or did you not find what you were looking for? Ask us!

    Clivet EZCool Quadri Split Inverter Air Conditioner 12+12+12+12BTU R32 A++/A+

    €2,834.97
    €2,749.92
    €2,749.92

    Clivet EZCool Quadri Split Inverter Air Conditioner 12+12+12+12BTU R32 A++/A+

    Lowest price in 30 days:
    €2,834.97
    Save 3%
    €2,749.92
    Tax included
    Free Shipping

    Clivet EZCool Quadri Split Inverter Air Conditioner 12+12+12+12BTU R32 A++/A+

    €2,749.92

    Buy it within and receive it from Friday, 15 November
    Two-year warranty
    Easy return within 14 days

    Thanks to the optional accessory Wifi Kit (not included) code NWMX you can adjust the temperature, On/OFF and timer of the indoor unit from your smartphone.




    Advantages:

    • Quiet operation and low power consumption
    • MONOSplit/MULTISplit compatible
    • Follow-me function: the system gives priority to the temperature sensor in the remote control and adjusts accordingly


    Comfort:

    • Continuously regulated indoor ventilation
    • Super quiet
    • Anti Cold Air
    • Multi-directional flow


    Reliability:

    • Self diagnosis
    • Emergency function
    • Opposing fan rotation


    Practicality:

    • Universal Mono/Multi Split Indoor Units
    • Auto-Restart


    Energy Saving:

    • 1W Standby
    • Sleep Function
    • Gear Function (for Multi)


    Health:

    • High Density Filter
    • Cold Catalyst Filter.




    Specifications Clivet EZCool 12000 3.5KW



    Cooling:

    • Min/Max Capacity: 12000 Btu (3800-14200) KW 3.5 (1.1-4.2)
    • Rated input power: Min/Max 1088W (130-1580)
    • SEER 6.10
    • Energy class: A++
    • EER 3.23
    • Indicative annual energy consumption kW/a 201

    Heating:

    • Min/Max capacity: 13000 Btu (3700-14400) KW 3.8 (1.1-4.2)
    • Rated power consumption Min/Max 1018W (100-1680)
    • SCOP: 4.00
    • Seasonal energy efficiency class A+
    • COP 3.74
    • Indicative annual energy consumption: kWh/a 906

    Indoor Unit Features:

    • Dimensions: (WxDxH) 835x208x295mm
    • Weight 8.4Kg
    • CCF Air Filter
    • Treated air Max cubic meters/min Hi/Mid/Lo 575/493/454
    • Dehumidification capacity l/hr 1.2
    • Sound pressure level Hi/Mid/Lo dBa 38/29/25
    • Sound Power Level dBA 54
    • Infrared remote control included with settable temperature from 17 to 30 degrees
    • Power Supply 230V - 50Hz - 1 Phase



    Features Quadri Outdoor Unit 10.5kW (MU2-Y105M):

    • Dimensions: (WxDxH) 946x410x810mm
    • Weight 68.8kg
    • 4 connections
    • Cooling Capacity 10.5kW (2.1-10.5)
    • Heating Capacity 10.8kW (2.3-11.1)
    • Sound Pressure Level dBa 62
    • Sound Power Level dBA 70
    • Power Supply Single-phase 220-240 / 50Hz Phases 1
    • Gas piping 3 x (Φ9.52 - 3/8") + 1 x (Φ12.7 - 1/2")
    • Liquid piping 4 x (Φ6.35 - 1/4")
    • Max/min piping length (each branch) 35 meters
    • Max piping length (Total) 80 meters
    • Refrigerant Type: R32 Gas
    • Max ODU/IDU height difference 15 meters
    • Max height difference IDU/IDU 10 meters
    • Refrigerant precharge Kg/m 2.1/4x7.5)
    • Additional refrigerant charge g/m 12
    • Cooling operating range -15-50 Degrees (Outdoor)
    • Heating operating range -15-24 Degrees (Outdoor)

    Data sheet

    Air conditioners:
    Quadrisplit
    Gas:
    R32
    Power:
    12+12+12+12 BTU
    Room Size:
    35m²+35m²+35m²+35m²
    Energy class:
    A++
    Series:
    EZCool
