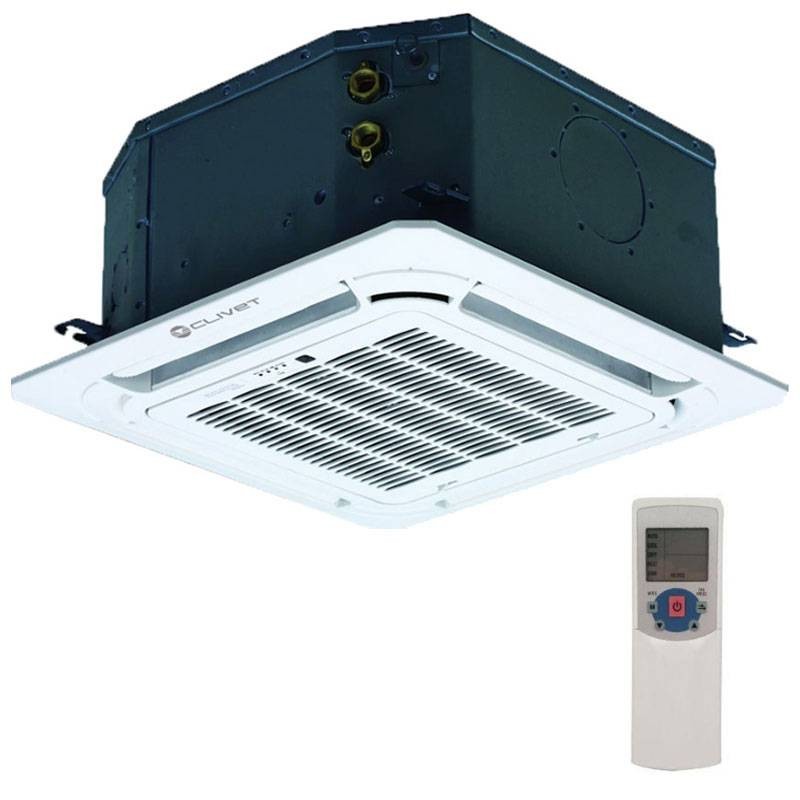

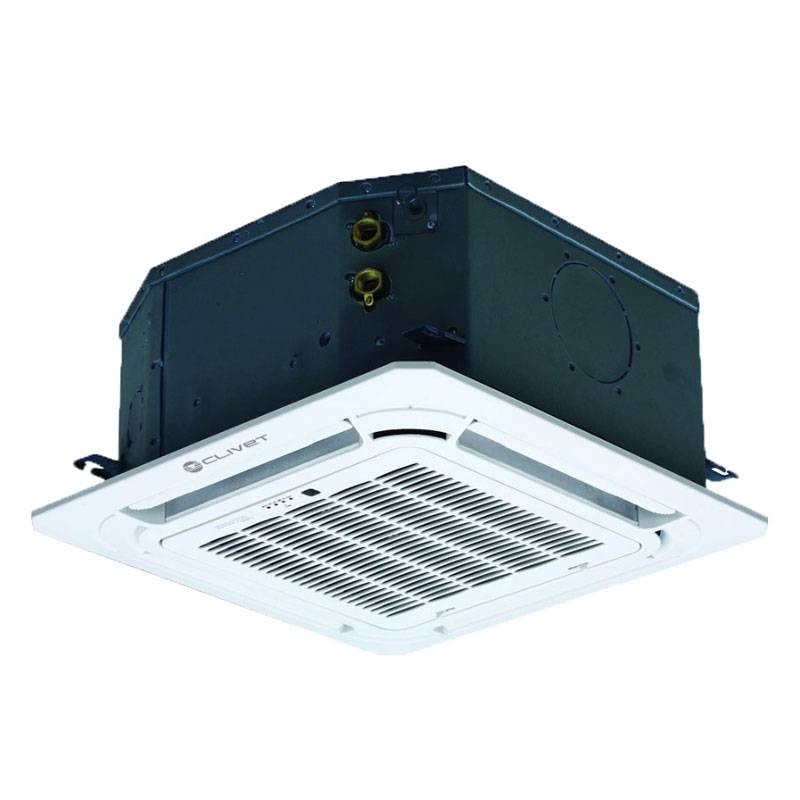

Clivet 4-Way Cassette Fan Coil Unit 5.93KWF Elfospace Box CFKA021.0
CLV 38062218
Clivet 4-Way Elfospace Box series cassette fan coil unit with inverter motor for heating and cooling:
- Maximum Cooling Capacity 5.93 kW
- Maximum Heating Capacity 7.01 kW
- Management with dry contact input or 0-10V input, alarm output
- Quiet and efficient, thanks to brushless DC fan motor
- Horizontal and vertical multi-directional function thanks to the remote control for remote control
- Auto Restart function, which repositions the fins to the last recorded position
- On-board condensate drain pump as standard
- Infrared remote control
- Management via Modbus port with connection to BMS or CONTROL4 NRG system
- Dimensions: 950 x 950 mm
Not included to be purchased separately Fancoil 90x90 panel code 87002245 and 3-way 3V2X ON/OFF valve kit code 89152227.
Clivet 4-Way Cassette Fan Coil Unit 5.93KWF Elfospace Box CFKA021.0
€662.31
€642.44
Lowest price in 30 days:
€662.31
Save 3%
€642.44
Tax included
Tax included
Items Available: 2
: 1
Frequently bought together
Advantages:
- Management with dry contact input or 0-10V input, alarm output
- Quiet and efficient, thanks to brushless DC fan motor
- Infrared remote control provided as standard
- On-board condensate drain pump provided as standard
- Management via Modbus port with connection to BMS or Control4 NRG system
Efficient and quiet:
- ELFOSpace BOX3 is equipped with brushless DC fan motor as standard, featuring advanced high-efficiency technology that ensures high quietness and smooth and precise room temperature control. Thanks to this, they are suitable for many applications in commercial and industrial settings but also for special situations such as hospitals or airports. The power consumption of fancoils with brushless DC fan motor is reduced by up to 60 percent compared to the corresponding models with asynchronous motor, while the noise level is 2-5 dB(A) lower, making the environment more comfortable with lower costs.
Sizes:
- Unit size 840x230x840mm
- Panel (to be purchased separately) 950x45x950mm
- Weight 16.5 + panel 2.5Kg
- External diameters: water 3/4" Inch - condensate drain 32mm
Features:
Cooling:
- Total output 5.93 kW
- Sensible output 5.00 kWWater flow rate 1020 l/hWater pressure drop 23.8 kPA
Heating:
- Yield (Water 45/40 degrees) 6.06 kW
- Water flow rate (ambient air 20 degrees) 1040 l/h
- Water pressure drop (Maximum fan speed) 12.8 kPA
Features:
- Min.Max power consumption 20/41W
- Max operating pressure 16 bar
- Air flow Min/Nom/Max 768/987/1175 cubic meters/h
- Sound power Min/Max 45/55 dB(A)
- Sound pressure @1M Min/Max 33/43
- Power supply 230V 50 Hz Phases 1.
There are no reviews
Data sheet
- Type:
- Fan-Coils
- Power:
- 5,93/7,01KW
- Installation:
- Cassette
- Connection:
- Single-phase
- Series:
- ElfoSpace
