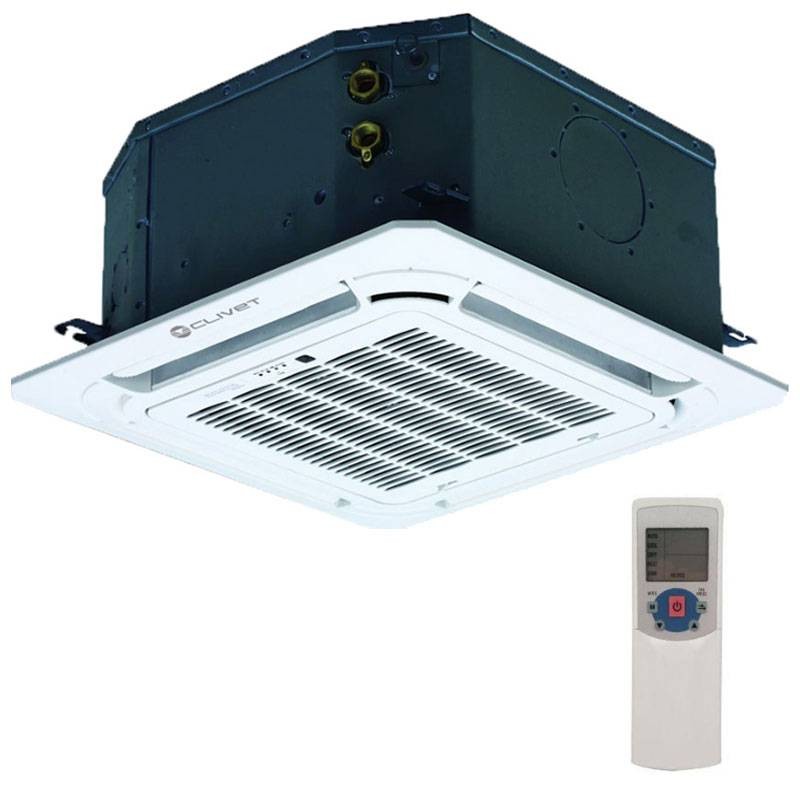

Clivet ElfoSpace 4-way cassette Fancoil unit CFK 007.0 37022210
CLV 37022210
Clivet ElfoSpace CFK 007.0 4-way cassette fancoil unit:
- Management with dry contact input or 0-10V input, alarm output
- Quiet and efficient, thanks to brushless DC fan motor
- Infrared remote control provided as standard
- On-board condensate drain pump provided as standard
- Management via Modbus port with connection to BMS or Control4 NRG system
Optional accessories to be purchased separately Wall-mounted thermostat for Fancoil Clivet KJR90X 87022211 - 360-degree air supply and return ceiling light 360PX 87002225.
Clivet ElfoSpace 4-way cassette Fancoil unit CFK 007.0 37022210
€594.51
€576.68
Lowest price in 30 days:
€594.51
Save 3%
€576.68
Tax included
Tax included
Items Available: 4
: 2
Frequently bought together
ELFOSpace BOX3 is equipped with a brushless DC fan motor as standard, featuring advanced high-efficiency technology, which can ensure high quietness and smooth and precise room temperature control. Thanks to this, they are suitable for many applications in commercial and industrial settings but also for special situations such as hospitals or airports. The power consumption of fancoils with brushless DC fan motor is reduced by up to 60 percent compared to corresponding models with asynchronous motor, while the noise level is 2÷5 dB(A) lower, making the environment more comfortable with lower costs.
Features:
High Speed:
- Air flow rate 493 m3/h
- Cooling capacity 2.16 kW
- Sensible capacity 1.86 kW
- Water flow rate 372 l/h
- Water pressure drop 17.4 kPa
- Heating capacity 3.13 kW
- Water flow rate 269 l/h
- Water pressure drop 23.5 kPa
- Total power consumption 24 W
Medium speed:
- Air flow rate 395 m3/h
- Cooling capacity 1.86 kW
- Sensible capacity 1.58 kW
- Water flow rate 320 l/h
- Water pressure drop 13.5 kPa
- Heating capacity 2.63 kW
- Water flow rate 226 l/h
- Water pressure drop 17.1 kpa
- Total power consumption 18 W
Minimum speed:
- Air flow 295 m3/h
- Cooling capacity 1.49 kW
- Sensible capacity 1.24 kW
- Water flow rate 256 l/h
- Water pressure drop 9.3 kPa
- Heating capacity 2.08 kW
- Water flow rate 179 l/h
- Water pressure drop 11.3 kPa
- Total power consumption 14 W
Features:
- Standard power supply 220-240V/1/50 Hz
- CFG discharge fan type
- Supply fan number 1
- Sound pressure level (H/M/L) 39/33/27 dBA
- Sound power level (H/M/L) 51/45/39 dBA
There are no reviews
Data sheet
- Type:
- Fan-Coils
- Power:
- 2,16/3,13KW
- Installation:
- Cassette
- Connection:
- Single-phase
- Series:
- ElfoSpace
