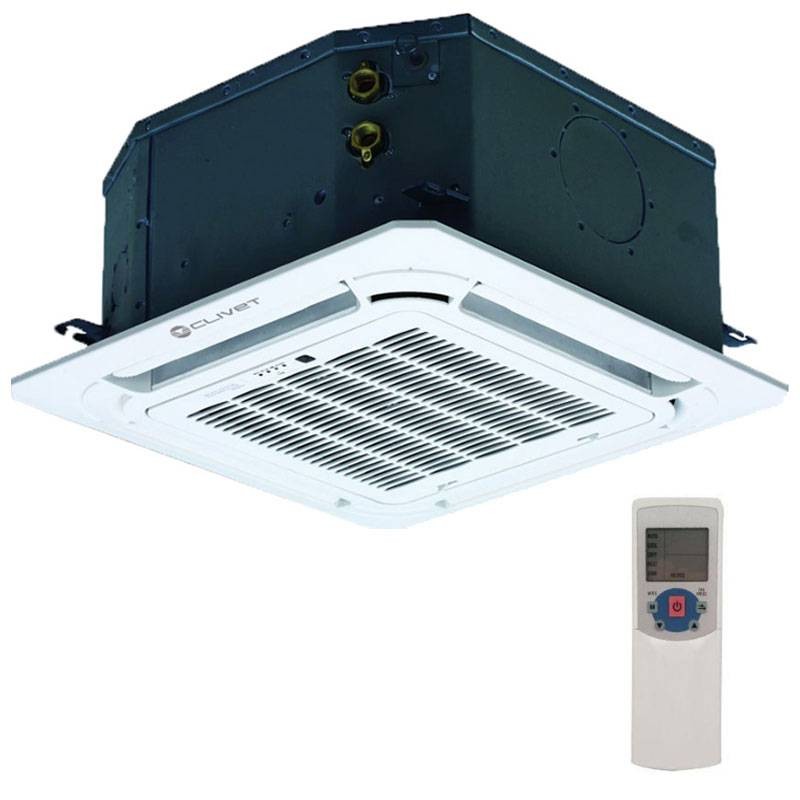

Clivet ElfoSpace 4-way cassette Fancoil unit CFK 011.0 38052294
CLV 38052294
Clivet ElfoSpace 4-way cassette fancoil unit CFK 011.0:
- Management with dry contact input or 0-10V input, alarm output
- Quiet and efficient, thanks to brushless DC fan motor
- Infrared remote control provided as standard
- On-board condensate drain pump provided as standard
- Management via Modbus port with connection to BMS or Control4 NRG system
Optional accessories to be purchased separately Wall-mounted thermostat for Fancoil Clivet KJR90X 87022211 - 360-degree air supply and return ceiling light 360PX 87002225.
Clivet ElfoSpace 4-way cassette Fancoil unit CFK 011.0 38052294
€622.35
€603.68
Lowest price in 30 days:
€622.35
Save 3%
€603.68
Tax included
Tax included
Items Available: 5
: 3
Frequently bought together
ELFOSpace BOX3 is equipped with a brushless DC fan motor as standard, featuring advanced high-efficiency technology, which can ensure high quietness and smooth and precise room temperature control. Thanks to this, they are suitable for many applications in commercial and industrial settings but also for special situations such as hospitals or airports. The power consumption of fancoils with brushless DC fan motor is reduced by up to 60 percent compared to corresponding models with asynchronous motor, while the noise level is 2÷5 dB(A) lower, making the environment more comfortable with lower costs.
Features:
High Speed:
- Air flow rate 669 m3/h
- Cooling capacity 2.78 kW
- Sensible capacity 2.4 kW
- Water flow rate 478 l/h
- Water pressure drop 13.15 kPa
- Heating capacity 3.71 kW
- Water flow rate 319 l/h
- Water pressure drop 24.1 kPa
- Total power consumption 38 W
Medium speed:
- Air flow rate 523 m3/h
- Figurative power 2.38 kW
- Sensible power 2 kW
- Water flow rate 409 l/h
- Water pressure drop 9.4 kPa
- Heating capacity 3.14 kW
- Water flow rate 270 l/h
- Water pressure drop 17.9 kpa
- Total power consumption 35 W
Minimum speed:
- Air flow rate 415 m3/h
- Cooling capacity 2.05 kW
- Sensible capacity 1.67 kW
- Water flow rate 353 l/h
- Water pressure drop 7 kPa
- Heating capacity 2.65 kW
- Water flow rate 228 l/h
- Water pressure drop 13.1 kPa
- Total power consumption 30 W
Features:
- Standard power supply 220-240V/1/50 Hz
- CFG discharge fan type
- Supply fan number 1
- Sound pressure level (H/M/L) 42/36/30 dBA
- Sound power level (H/M/L) 54/48/42 dBA
There are no reviews
Data sheet
- Type:
- Fan-Coils
- Power:
- 2,78/3,71KW
- Installation:
- Cassette
- Connection:
- Single-phase
- Series:
- ElfoSpace
