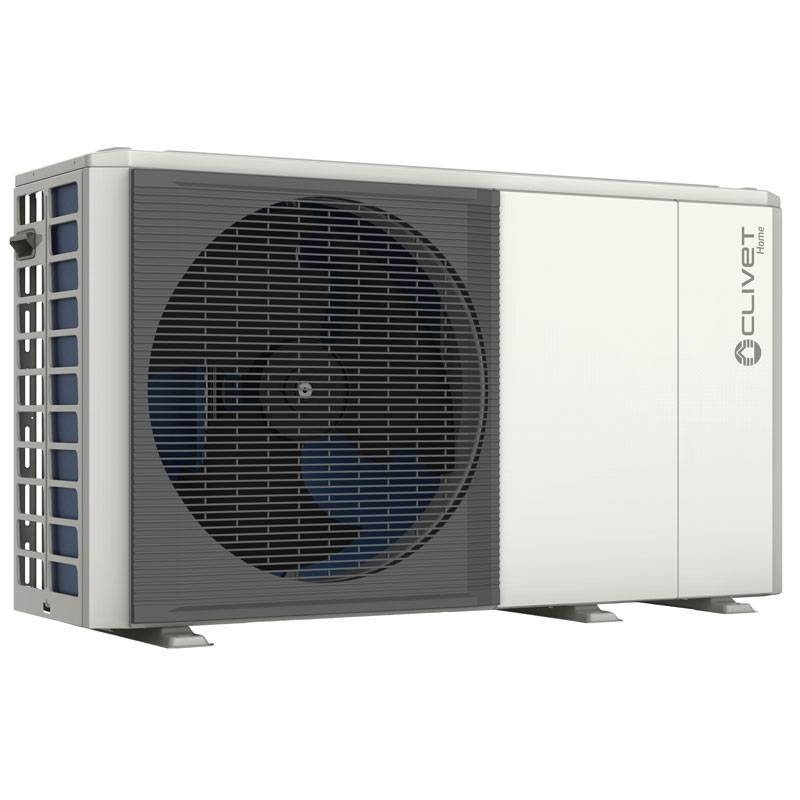

Clivet Monoblock Heat Pump 15.9kW Edge EVO WISAN-YME 1S 8.1

Clivet by Midea
CLV 38042235

Clivet Edge EVO 2.0 EXC series Monoblock Heat Pump WISAN-YME 1S, air-water for heating, cooling and domestic hot water production:



  • Supply voltage 230/1/50
  • Heating Capacity Water 35/30°C - Outside air 7°C nominal/Max 15.90/16.80 kW
  • Cooling Capacity Water 18/23°C - Outside air 35°C Nominal/Max 14.20/16.40 kW
  • Energy Class Heating 55°C A++
  • Energy Class Heating 35°C A+++
  • taga+++v
  • r32
  • taga++v
    • The air conditioner will be delivered pre-charged with gas R32
    Do you have questions about this product or did you not find what you were looking for? Ask us!

    Clivet Monoblock Heat Pump 15.9kW Edge EVO WISAN-YME 1S 8.1

    €5,068.28
    €4,916.23
    €4,916.23

    Clivet Monoblock Heat Pump 15.9kW Edge EVO WISAN-YME 1S 8.1

    Lowest price in 30 days:
    €5,068.28
    Save 3%
    €4,916.23
    Tax included
    Items Available: 1
    Further availability of the manufacturer

    Clivet Monoblock Heat Pump 15.9kW Edge EVO WISAN-YME 1S 8.1

    €4,916.23

    Buy it within and receive it from Friday, 15 November
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Frequently bought together

    Performing even in winter: Edge EVO 2.0 - EXC is suitable for every climate and weather condition. It is designed to be efficient and provide high-temperature water even in harsh winters down to -25°C: in particular, it can produce water at 60°C down to -15°C outside air. For even harsher applications, an additional electrical heating element can be selected to ensure that it does not lose yield even under the most extreme conditions



    Advantages:

    • Space-saving: installed outdoors, requires no indoor unit
    • Designed for harsh climates: excellent performance at low temperatures and optional auxiliary heaters from 3 to 9kW
    • Allows high temperature distribution: water up to 65°C
    • Modular: combines up to 6 units in cascade for powers up to 180kW
    • Advanced connectivity: management via dedicated MSmartLife App or via Modbus port with ELFOControl3 EVO included as standard



    Energy Savings:

    • Solar DHW integration (DHW tank - optional)
    • Cascade
    • Smart Grid ready
    • €-Switch

    Comfort:

    • Hot Cold
    • ACS
    • Silent
    • High Temperature



    Reliability:

    • Support heater (optional)
    • Products ClimateHouse Quality
    • Keymark




    Health:

    • Environmentally friendly refrigerant R32
    • Renewable energy (full electric version)




    Convenience:

    • Weekly scheduling
    • Boiler integration



    Management and Connectivity:

    • Input ON/OFF
    • User interface/thermostat
    • Modbus port
    • Control via App
    • Control4 NRG management
    • Clivet Eye monitoring
    • Energy metering



    Features:



    Heating:

    • Capacity Water 35/30°C - Outdoor Air 7°C Nominal/Max 15.90/16.80 kW
    • COP 4.50
    • Water capacity 35/30°C - Outside air -7°C Nominal/Max 13.10/13.90kW
    • COP 2.70
    • Water capacity 45/40°C - Outside air 7°C Nominal/Max 16.00/16.60 kW
    • COP 3.50



    Cooling:

    • Water capacity 18/23°C - Outside air 35°C Nominal/Max 14.20/16.40 kW
    • EER 3.61
    • Water Capacity 7/12°C - Outside Air 35°C Nominal/Max 14.00/14.00 kW
    • EER 2.50
    • Electrical power for meter sizing 6.50 kW
    • Seasonal Eff. Average Climate



    Heating 55°C:

    • Energy class A++
    • Annual energy input 7,213 kWh/year
    • SCOP 3.41
    • (seasonal efficiency) 133%



    Heating 35°C:

    • Energy class A+++
    • Annual energy input 6,011 kWh/year
    • SCOP 4.62
    • (seasonal efficiency) 182%



    Outdoor unit:

    • Power Supply Voltage/Frequency/Phases 230/50/1 V/Hz/n°.
    • Water flow rate Water 35/30°C - Outdoor air 7°C 0.76 l/s Nominal
    • Useful pump head Water 35/30°C - Outdoor air 7°C 87 kPa Nominal
    • Minimum system water content 70 liters
    • Expansion tank capacity 4.8 liters
    • Sound power 59/68 dB(A)
    • Sound pressure @1m 44/53 dB(A)
    • Dimensions Width x Height x Depth 1,385x864x445
    • Weight 129 kg
    • Type/GWP R-32 / 675
    • Refrigerant charge Kg 1.75 - CO2 tons 1.18
    • External diameters Water 1"1/4 Inch



    Operating range:



    Water supply temperature:

    • Heating Minimum / Maximum 25 / 65 degrees
    • Cooling Minimum / Maximum 5 / 25 degrees
    • DHW Minimum / Maximum 30 / 60 degrees



    Operating range (Outside air):

    • Heating Minimum / Maximum -25 / 35 degrees
    • Cooling Minimum / Maximum -5 / 43 degrees
    • DHW Minimum / Maximum -25 / 43 degrees

    There are no reviews

    Data sheet

    Type:
    Monoblock units
    Gas:
    R32
    Thermal power:
    15,9 KW
    Energy class:
    A+++
    Connection:
    Single-phase
    Series:
    Edge EVO WISAN-YME
