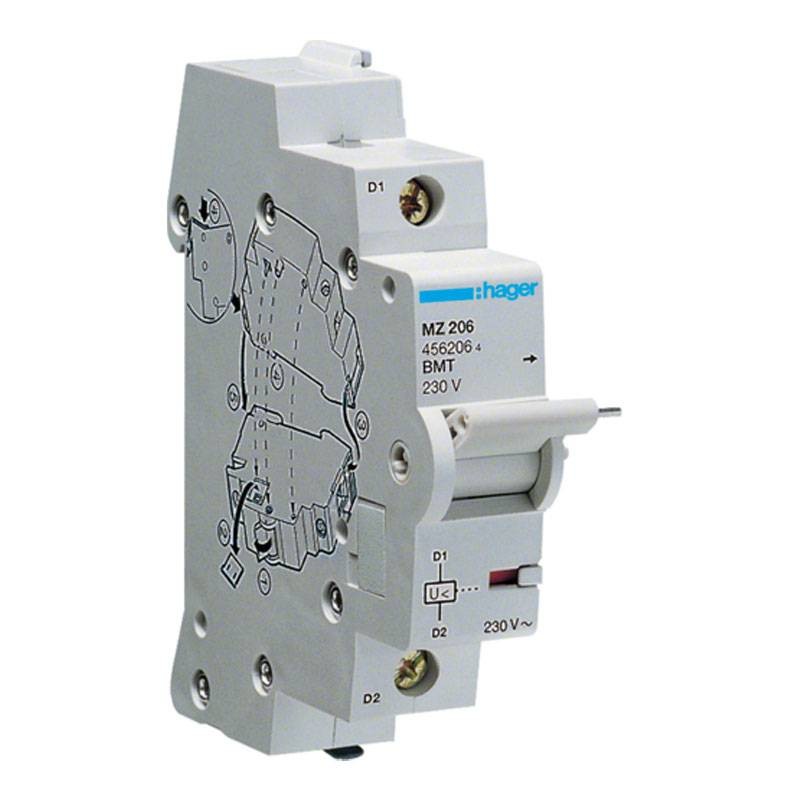

Hager Minimum Voltage Coil 230V Ac 1 Module MZ206
HAG MZ206
3250614562068
Hager Minimum Voltage Coil with the following characteristics:
- Rated operating voltage AC 230V
- AC supply voltage type
- Rated frequency 50/60 Hz
- DIN rail mounting
- Rated insulation voltage 4000 Vac
- Tightening torque 1.2 Nm
- Operating temperature -25/+60 °C
- Storage/transport temperature -40/+80 °C
Hager Minimum Voltage Coil 230V Ac 1 Module MZ206
€50.72
€50.72
Tax included
Tax included
Items Available: 7
: 3
Frequently bought together
Auxiliary contacts are secondary switching devices that work in conjunction with primary switching equipment such as circuit breakers, relays, and contactors. These contacts are physically connected to the primary switching mechanism and are activated simultaneously.
What are they used for? Auxiliary contacts are used for various functions, e.g., self-holding, consent/block, signaling, interlocking.
A circuit breakerequipped with an electronic protectiverelease (also called a current-throwing coil) is a circuit breaker that is opened, in the event of a fault, by an electromechanical actuator (opening solenoid) activated by an electronic device that can process a signal proportional to the current flowing through the power contacts.
Features:
- Control circuit voltage in AC 230V
- Rated operating current in AC1: 15 mA
- Power consumption at attraction: 3.5 VA
- Total power dissipation: 2 W
- Response time to opening: 200 ms
- Operating voltage Ue: 35 / 70 %
- Minimum cross-section with flexible cable: 6 mm²
- Minimum cross-section with rigid cable: 10mm²
- Product depth: 68 mm
- Product width: 17.5 mm
There are no reviews
Data sheet
- Type: Coils
- Model: Minimum Voltage
