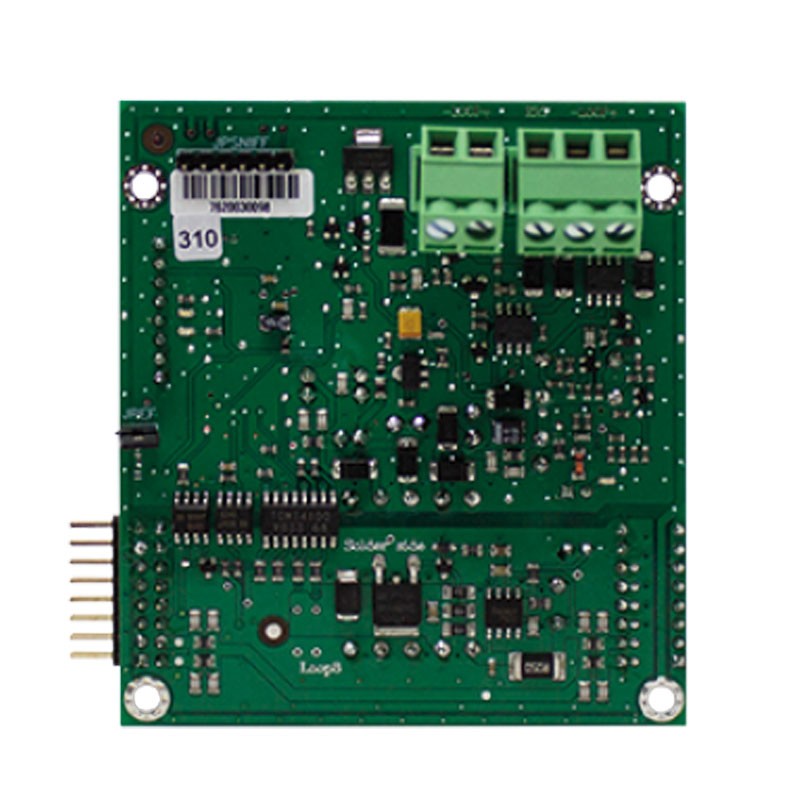

Comelit 1 Loop Expansion Board for Addressable Control Panel 41ECL220

Comelit
COE 41ECL220 8023903420647

1 Loop expansion board for Comelit LogiFire addressed control panel code 41CPE118 and expansion box code 41CPE104 (back compatible with ATENA control panel code 41CPE024):



  • Maximum number of devices that can be connected on each board: 250
  • Equipped with removable terminal block
  • Maximum current 700mA (525mA available for connecting loop devices, the remainder dedicated to management and communication with the various devices on the control panel)
  • Section of cables that can be used: 0.5 ÷ 2.5 mm2
  • Operating temperature: -10/+65°C
  • Operating relative humidity: (93 ± 3%) @ 40 °C
  • Dimensions: 75x80mm
  • Weight: 30 grams
Do you have questions about this product or did you not find what you were looking for? Ask us!
Comelit 1 Loop Expansion Board for Addressable Control Panel 41ECL220
€247.04
€247.04

€247.04
Tax included
Items Available: 11
Further availability of the manufacturer
€247.04

Buy it within and receive it from Tuesday, 18 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks
