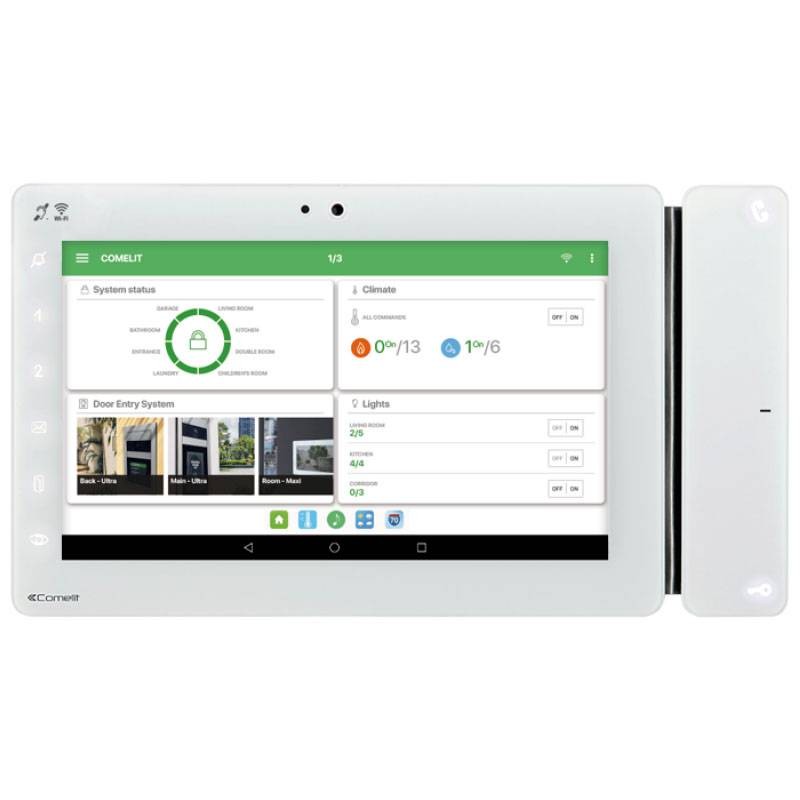

Strengths:

• 7 capacitive touch screen display with gesture recognition for easy navigation within menus
• Equipped as standard with Sensitive Touch controls for door opener, phonic activation, auto switch-on, privacy service and 3 other controls for programmable functions, door open and new message LEDs
• Handles out-of-door call and redial as standard, provides for alarm and panic inputs
• Equipped with magnetic induction circuit for the hearing impaired
• Built-in temperature and humidity sensor
• RFID reader for input and output scenario activation
• Supervisor allows control of lights, shutters, automated openings, zone temperature control with customized schedules, irrigation management, display of power consumption, water, gas, etc., management of electrical load shedding, management and control of burglar alarm system, display of cameras on IP network
• Power supply from POE



Features:

• Height (mm) 124
• Width (mm) 223
• Depth (mm) 27
• Product weight (g) 700
• Product color White RAL9003, gray base RAL7001
• Type coating materials ABS, Glass




Compatibility:

• Simplebus 2 system with interface art. 20005000 Yes
• ViP Yes
• Home automation system Yes
• Burglar alarm system Yes



Display:

• 16:9 aspect ratio
• Touch screen Yes, capacitive
• Resolution (pixels) 1024x600
• On-screen menu (OSD) Yes



Audio features:

• Speakerphone Type
• Magnetic induction function Yes
• Microphone 4mm (ø), Omnidirectional
• Speaker 40mm (ø) x 28.4mm (H), 4 Ohm, 2W
• Implemented Technologies Full-Duplex



Camera features:

• 1/5" CMOS sensor type
• Lens size fixed optics (mm) 2.7
• Viewing angle (H x V - °) 83 x 66



Electrical Characteristics:

• PoE power supply type
• Power supply voltage Standard IEEE 802.3af, Comelit PoE (48÷56VDC)
• PoE Class 3
• Standby power consumption (W) 4.2
• Maximum power consumption (W) 7.8



Hardware Features:

• Type of buttons Capacitive
• Service buttons Door open, Answer, Silent (Privacy), Menu, Message, Door open
• No. of programmable buttons for additional functions 2
• Terminals S- S+ OUT1 IN4 PAN CFP 0V AL
• No. of inputs (no.) 4
• Type of inputs Internal pull-up
• Number of outputs (no.) 1
• Type of outputs Open Collector
• Micro-SD memory card supported (not supplied)
• Communication ports RJ45 (Ethernet)
• Proximity reader type Mifare® (13.56 MHz)
• Temperature sensor Yes



Adjustments:

• Speaker volume Yes
• Microphone volume Yes
• Ring volume Yes
• Screen backlighting Yes
• Network Type LAN Ethernet 10/100 Mbit/s, IEEE 802.3, IEEE 802.3u (Fast Ethernet)
• Wi-Fi connection type IEEE 802.11 b/g/n, 2.4 Ghz, 13 channels
• IoT connection to Comelit Cloud Yes
• Firmware update via
• Comelit Cloud Yes
• Android operating system (v. 7.1)



Environmental features:

• IP30 degree of protection
• Operating temperature (°C) -5 ÷ 40
• Operating humidity (RH max) (%) 20 ÷ 90
• Environmental class II
• RoHS II certifications - 2011/65/EU (EN IEC 63000:2018), RED 2014/53/EU (EN 62311:2008, EN 62368-1:2014, EN 61000-6-1:2007, EN 61000-6-3:2007 + A1:2011, ETSI EN 301 489-1 V2.2.0, ETSI EN 301 489-17 V3.2.0, ETSI EN 300 328 V2.1.1)



Home Automation Functions:

• Light management ON/OFF, Dimmer, RGB, Dali, DMX
• Roller shutter/veneer management Yes
• Shutter/Venetian blinds percentage position management Yes
• Temperature and humidity management Multizone, ON/OFF, Fancoil, Modbus
• Scenario management Instantaneous, Scheduled, Conditioned
• Energy consumption display Yes
• Logic rules management Enabling/Disabling
• Irrigation management Yes
• Generic outputs management Yes



Video Door Phone Functions:

• Door Opener Yes
• Auto Power On Yes
• Intercom calls Yes
• Actuator control Yes
• Call to switchboard Yes
• Outside call input Yes
• Repeat call output Yes
• Silent Mode (Privacy) Yes
• Video Memo Yes
• IP camera display (RTSP stream) Yes
• Automatic door opener on call (Doctor) Yes
• Auto answer (hands-free) Yes
• Door open notification Yes
• Call forwarding Yes
• Date/time display Yes
• Sending alarm calls Yes
• Sending e-mail on event Yes
• Message for absent Yes
• Receive ViP messages Yes
• ViP anti-theft function Yes
• Customizable ringtone Yes



Security functions:

• Management of Total, Partial, Custom engage/disengage.
• System status display Yes
• Video verification in case of alarm Images, Video, Live
• Quick command activation Yes
• Event history display Yes



General:

• Max power consumption (W) 7.8
• Desktop base mounting Yes, with dedicated accessory
• Display size (") 7
• Removable terminals Yes
• Built-in humidity sensor Yes
• Flush mounting Yes, with dedicated accessory
• Wall mounting Yes, with dedicated accessory
• Automation management Yes
• Load management Yes
• Scheduling management Yes
