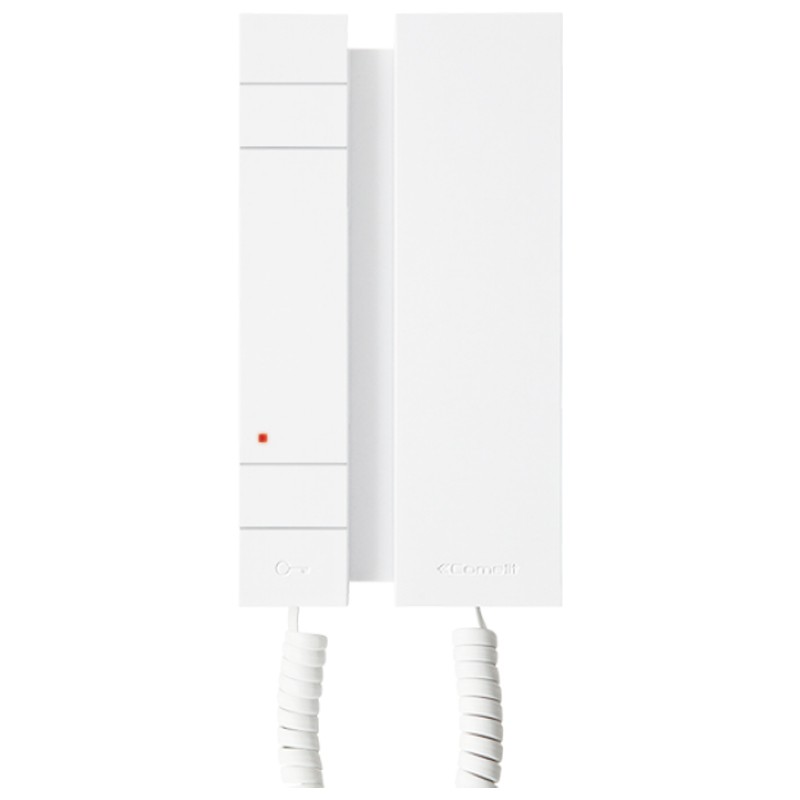

Comelit Mini SIMPLEBUS 2 intercom with handset White 2738W/A
COE 2738W/A
8023903396454
Comelit Mini intercom for SIMPLEBUS 2 audio systems with handset White
€39.04
€39.04
Tax included
Tax included
Items Available: 557
: 70
Frequently bought together
Advantages:
- Equipped with door opener button
- Button for additional services such as calls to concierge switchboard, etc.
- Adjustment of the call volume, Silent mode (Privacy) and input for the call to the floor
- The hooking of the handset to the base plate is facilitated by invisible magnetic inserts.
- It is possible to purchase separately the additional card art. 2735 to have an additional button with voltage-free contacts and call repetition.
Characteristics:
- Dimensions: Product height (mm) 190 - Product width (mm) 103 - Product depth (mm) 28
- ABS material
- Product weight (g) 300
- Product colour White RAL9003
- Technologies implemented Audio Full-Duplex
- Power supply from video door phone bus
- Type of buttons Mechanical
- Service buttons Door opener
- Number of inputs (n°) 1
- Ringer volume
- Operating humidity (RH max - %) 25 ÷ 75
- Environmental class III
- Wall mounting
- Table base mounting Yes, with dedicated accessory
- Power supply voltage 22÷35VDC
- Maximum absorption (W) 0.8
- Microphone 9.6 (ø) x 6.9mm, omnidirectional
- Speaker 50mm (Ø), 50 Ohm, 0.25W
- Operating temperature (°C) -5 ÷ 40

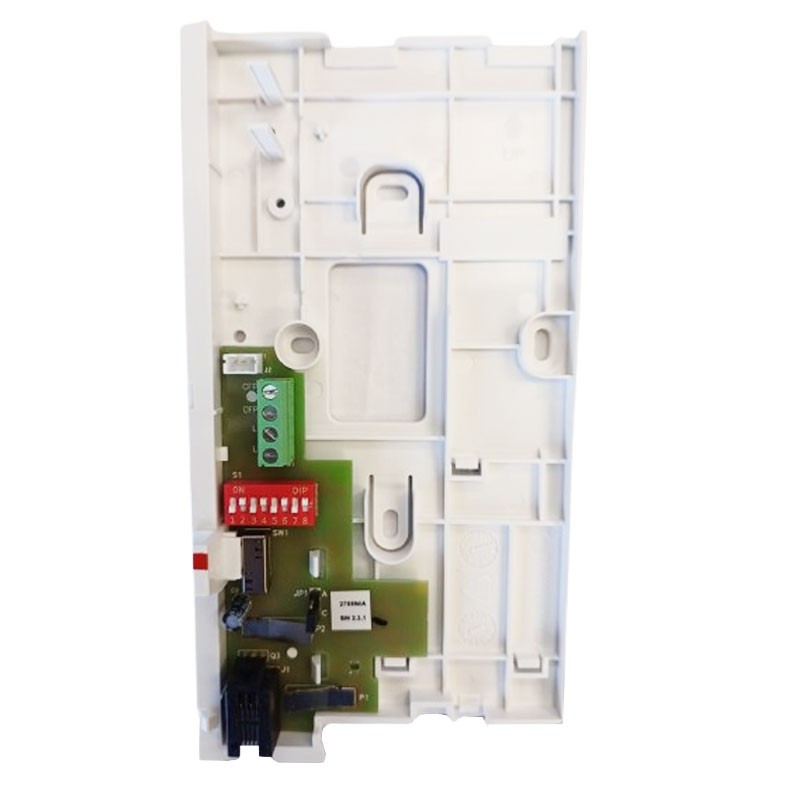

- Terminals L L CFP CFP.
Main functions
- Door opener Yes
- Actuator control Yes
- Call to switchboard Yes
- Off-door call input Yes
- Silent Mode (Privacy) Yes
Compatible systems
- Audio/video Simplebus 2 with power supply unit Art. 4888C
- Audio/video Simplebus 2 with power supply unit art. 1210/1210A
- Audio/video Simplebus 2 kit with power supply unit art. 1209
- Audio Simplebus 2 with power supply unit art. 1210/1210A.
Citofono come d foto conforme e nuovo,
Ottimo prodotto, facile istallazione. Consigliato
E' andato tutto bene.
il pacco è arrivato in tempo e senza problemi.
Data sheet
- Type: Intercoms
