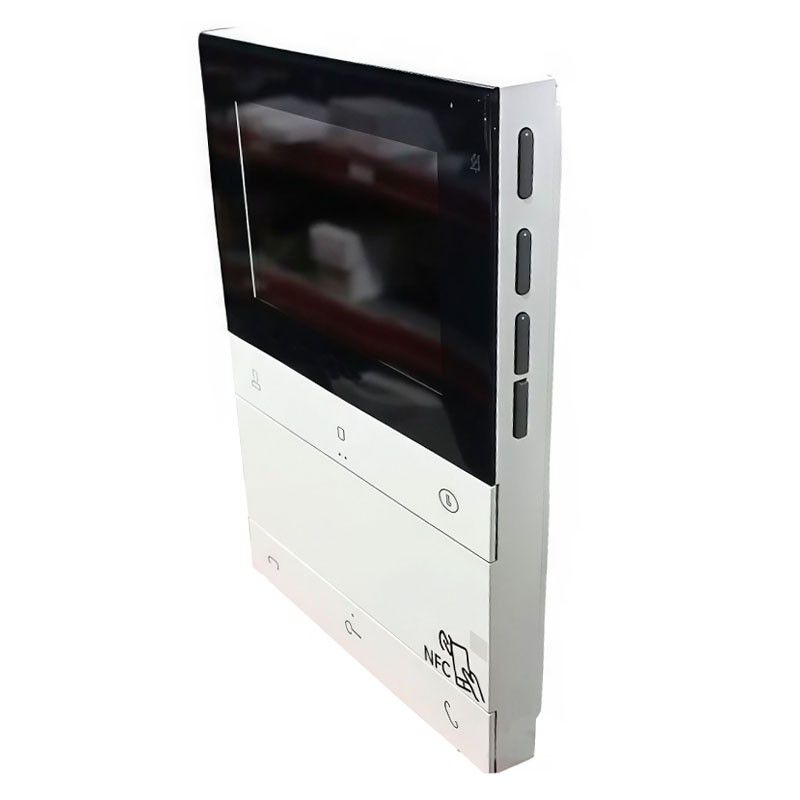

Comelit People Monitor Handsfree Color for Video Door Phone 4.3 PL6721
COE PL6721
8023903437584
Comelit People series color video door phone for Simplebus 2 system, with the following features:
- Power supply type Power supply from video intercom bus
- Display size: 4.3 inches
- Power supply voltage 33VDC
- Stand-by power consumption (W) 0.03
- Maximum power consumption (W) 9.2
- Type of buttons Mechanical Total buttons 6
- Backlight color: Green, White, Red
- Clamps L L CFP CFP
- Removable terminals Yes
- Number of inputs 1

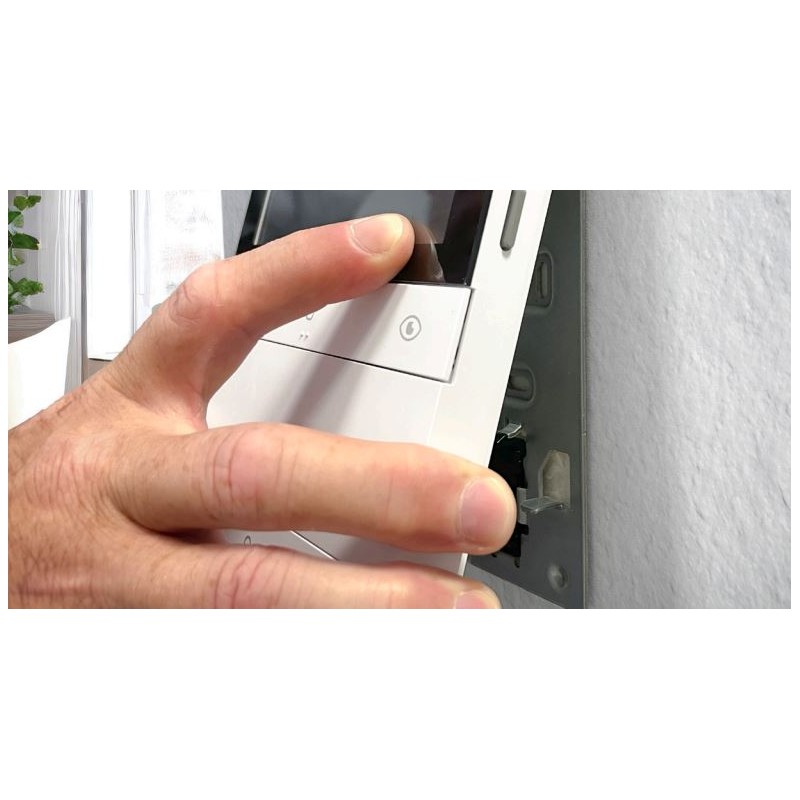

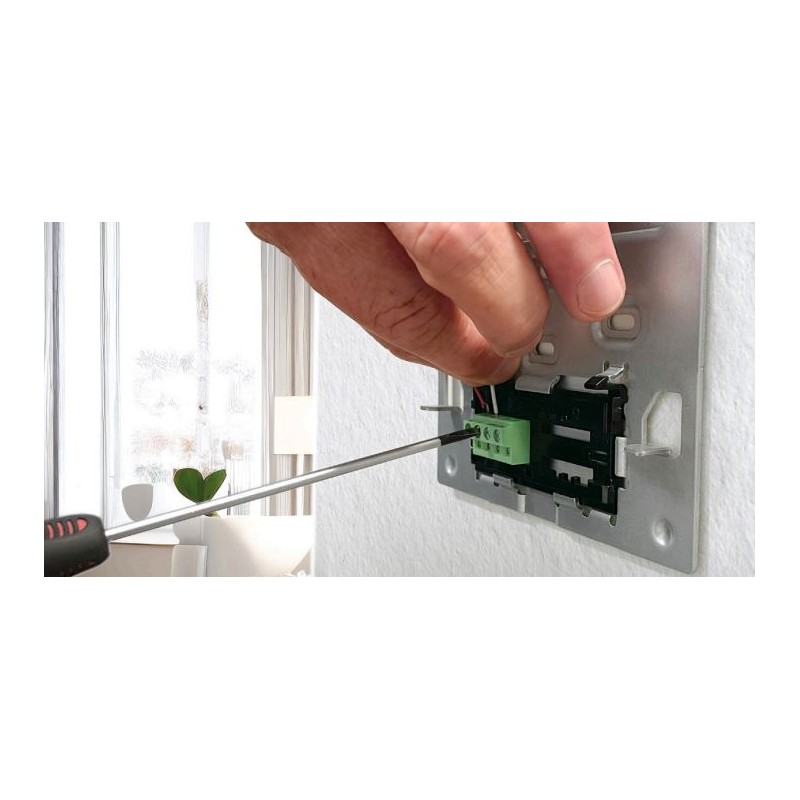

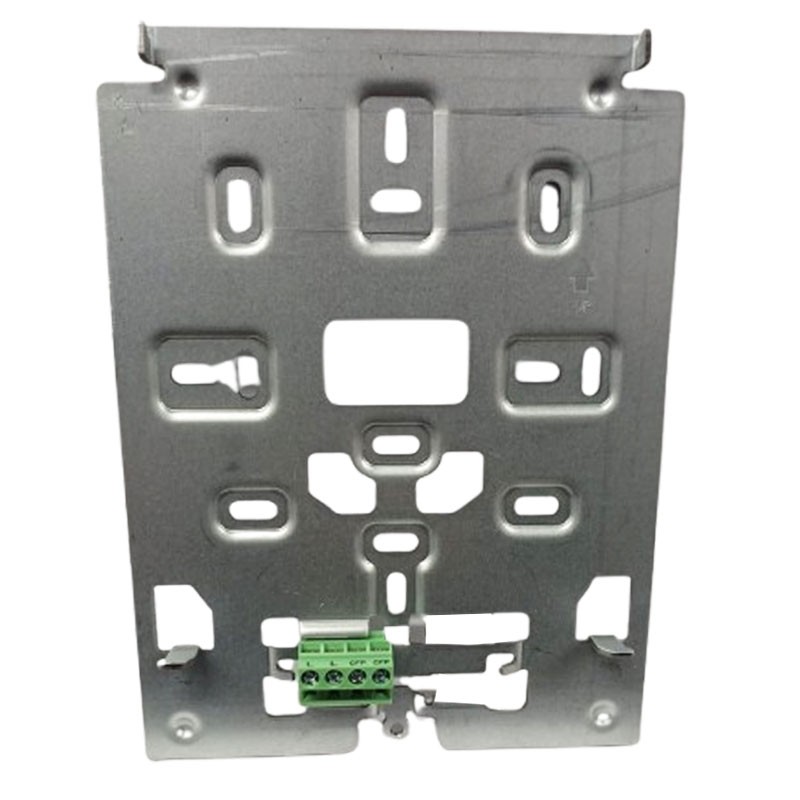

Hands-free version with 4.3" / 16:9 screen. The video intercom can be programmed, even when off, from a smartphone using the free downloadable MyComelit app. It comes with metal wall mounting bracket for stable and strong anchorage and line branch terminal.
It replaces the old model (code 6721W).
Comelit People Monitor Handsfree Color for Video Door Phone 4.3 PL6721
€175.38
€175.38
Tax included
Tax included
Items Available: 76
: 4
This Comelit article is also included in the following kit:
Frequently bought together

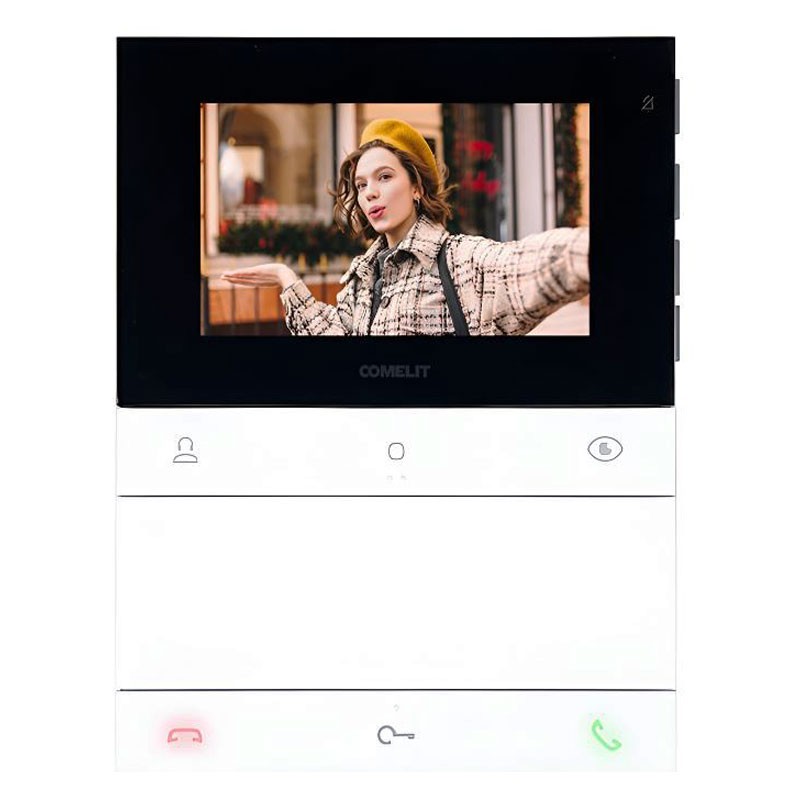

It is equipped with 6 mechanical buttons on the front with icons identifying its factory-set function. 3 buttons are backlit for easy operation: green color for "phonic socket" function, red color for "end communication" function, and white color for "electric lock" function. 3 pushbuttons are programmable and already configured to call the concierge switchboard, control an actuator, and perform auto switch-on. The center buttons in each row are equipped with tactile guides for the blind. On the right side of the video intercom, on the other hand, there are buttons to activate the Silent mode with a red indicator light and corresponding icon, and buttons to access the menu to adjust brightness, contrast, color and ringer volume values. As standard, it is equipped with out-of-door call that can also be programmed for other functions. Dimensions (W x H x D): 135 x 170 x 23 mm.
Other Specifications:
- Height (mm) 170
- Width (mm) 135
- Depth (mm) 23
- Product weight (g) 430
- Product color White RAL9003 - Black RAL9005
- Type coating materials ABS, PMMA
- Wall mounting Yes
- Table base mounting Yes, with dedicated accessory
- Compatible systems: Audio/video Simplebus 2 with power supply item 4888C Yes, Audio/video Simplebus 2 with power supply item 1210/1210A Yes, Audio/video Simplebus 2 kit with power supply item 1209 Yes
- Display type TFT
- Aspect ratio 16:9
- Resolution (pixels) display 480x272
- On screen menu (OSD) Yes
- Microphone 6mm (ø), Omnidirectional
- Speaker 36mm (ø), 40 Ohm, 1W
- Adjustments: Volume, Speaker, Ring Volume Yes, Screen Brightness Yes, Screen Contrast Yes, Screen Color Yes
- Network and communication protocols: User function programming via OSD menu Yes, Installer function programming via OSD menu Yes, Function programming via NFC and MyComelit app Yes
- Degree of protection IP30
- Operating temperature: -5/+40°C
- Operating humidity (RH max) (%) 25 ÷ 75
- Environmental Class I (B1)
- Certifications CE RoHS II - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU(EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
General features:
- Door opener Yes
- Automatic Door Opener on Call (Doctor) Yes
- Silent Mode (Privacy) Yes
- Auto Power On Yes
- Call to switchboard Yes
- Intercom Calling Yes
- Selective Intercom Call Yes
- Panic Call Yes
- Out-of-door call input Yes
- Customizable ringtone Yes
- Auto answer (hands-free) Yes
- Actuator control Yes
- Door open signaling Yes
- Audible signaling Yes
- Visual signaling Yes
Data sheet
- Type:
- Video Intercoms
- Model:
- Intercom function
- System:
- 2-Wire
