Comelit QUADRA Videointercom Kit and 7TOP VIP Single-Family WI-FI IP KVQ8570

Comelit
COE KVQ8570 8023903471847

Comelit QUADRA and 7TOP VIP Video Intercom Kit is a complete, pre-programmed solution for access control via video door phone. Thanks to its built-in Wi-Fi connection and Comelit app, it allows calls to be answered directly from a smartphone or tablet, even remotely. The system is expandable with other products in the ViP range, ensuring maximum flexibility.

The kit consists of:

  • 1 7TOP 7-inch hands-free Wi-Fi video intercom (art. TP6842)

  • 1 Quadra push-button door station (art. 4899M)

  • 1 30W power supply unit (art. 1441B)

  • 1 Power injector for kit (art. 1488)

  • wifi
Do you have questions about this product or did you not find what you were looking for? Ask us!
Comelit QUADRA Videointercom Kit and 7TOP VIP Single-Family WI-FI IP KVQ8570
€466.80
€466.80

€466.80
Tax included
Items Available: 6
Further availability of the manufacturer
€466.80

Buy it within and receive it from Thursday, 20 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Comelit QUADRA and 7TOP VIP Wifi Video Intercom Kits

With built-in Wi-Fi technology and the Comelit app, calls can be answered and access managed from anywhere, turning smartphones and tablets into a full-fledged video intercom. The kit comes pre-programmed, minimizing installation time. It is also expandable, allowing additional video door phones and ViP system accessories to be added. The Quadra door station has a sturdy construction and modern aesthetics, while the 7TOP 7-inch monitor offers a clear and convenient interface with hands-free functionality for convenient use.

Comelit QUADRA and 7TOP VIP Wifi Kit Components


Comelit 7TOP 7-inch Video Intercom Handsfree Wi-Fi VIP

7TOP video intercom for VIP systems with 7-inch color touchscreen, featuring mechanical door opener button with backlit icon. Modern and attractive design to reconcile robustness and usability. It is wall-mountable via metal mounting bracket (included) for strong and stable anchorage, or table-mounted via dedicated stand that can be purchased separately. Power supply via standard POE, 1440A shunt or dedicated 48V power input.

On the side is MicroSD card slot (not included) that allows uploading of custom ringtones. Equipped with programmable local inputs, a programmable output and an output prepared for additional ringer. Connectivity via Ethernet and Wi-Fi allowing connection to Comelit Cloud and receiving calls via APP on Smartphone, even when away from home.

Linux operating system, full-duplex hands-free speech and native support for H.264 and H.265 video formats. New icon-based, user- or installer-friendly, customizable graphical user interface. Many built-in features, including Automatic Update, Memovideo, Alarm Management, Automatic Door Opener (Doctor), Silent Mode (Privacy), Automatic Answer (Hands Free), Call Forwarding.

Video Intercom Technical Specifications

General Data

Feature Value
Height 120 mm
Width 210 mm
Depth 21 mm
Product color White/Black
Coating materials ABS, Glass
Wall mounting Yes


Display

Feature Value
Display size 7 inches
Display type TFT
Aspect ratio 16:9
Touch screen Yes, capacitive
Resolution 1024x600 pixels


Audio Features

Feature Value
Type Speakerphone
Microphone D 6 mm, Omni-directional
Speaker D 36 mm, 8 Ohm, 1W
Technologies implemented Full-Duplex


Electrical Characteristics

Feature Value
Power supply type PoE
Supply voltage 37-57 VDC (ViP)
PoE Power Supply IEEE 802.3af standard, Comelit PoE (56VDC)
Standby power consumption 2,4 W
Maximum power consumption 6 W


Hardware Features

Feature Value
Button type Mechanical
Service buttons Door opener
Terminals AL, GND, CFP, PAN, IN1, OUT1, S+, S-/GND, V+, V-
Removable terminals Yes
Number of inputs 4
Number of outputs 1
Memory card supported Micro-SD (not provided)
Ethernet ports 1 (RJ45)
LED signaling 1


Adjustments

Feature Value
Speaker volume Yes
Microphone volume Yes
Ring volume Yes
Screen brightness Yes
Screen contrast Yes


Network and Communication Protocols

Feature Value
LAN network type Ethernet 10/100 Mbit/s
Wi-Fi connection type 2.4 GHz
IP address assignment DHCP, AUTO IP, static IP
IoT connection to Comelit Cloud Yes
Operating system Embedded Linux
Comelit App Compatibility Yes


Environmental Features

Feature Value
Degree of protection IP30
Operating temperature +5/+40 degrees


General Features

Functionality Availability
Door opener Yes
Silent Mode (Privacy) Yes
Panic Call Yes
Call Forwarding Yes
Memovideo Yes
Customizable ringtone Yes
Date/time display Yes


Quadra Video Intercom for VIP Kits

The Comelit Quadra door intercom is a pre-programmed device for ViP video door phone kits, designed for easy and immediate installation. Equipped with a color camera, LEDs for night lighting and configurable capacitive buttons, it offers a reliable and modern access control system. Die-cast aluminum construction ensures strength and durability.

Technical Specifications Outdoor Intercom

Feature Value
Type Monoblock
Wall mounting Yes
Terminals NO C V- RTE DO SE+ SE- CN1
Operating temperature range -25/+55 degrees

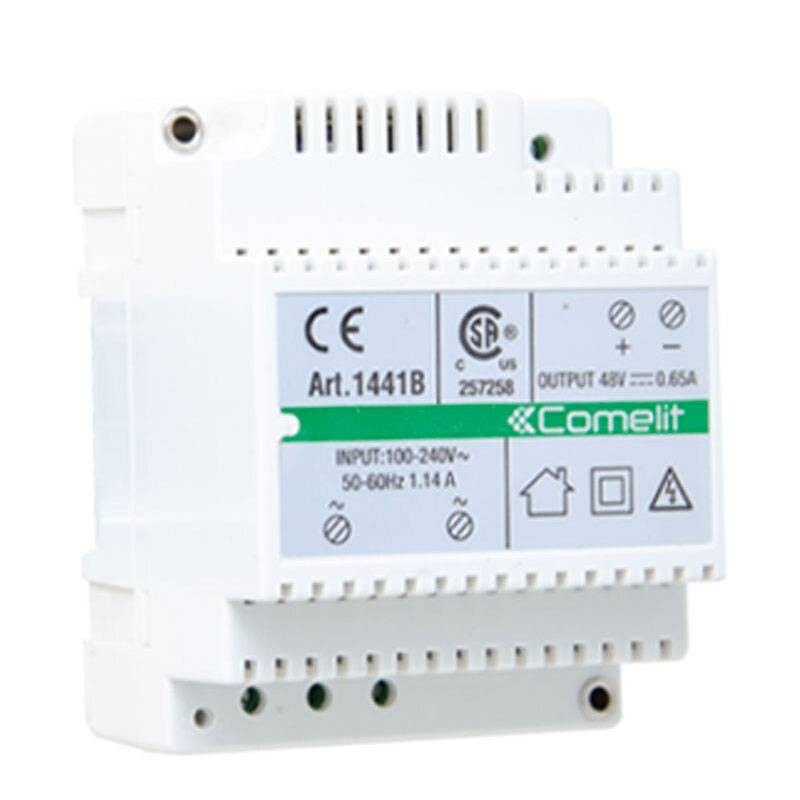

Comelit 30W 48Vdc Power Supply for ViP Systems

The Comelit power supply is a device designed to provide stable and efficient power supply to ViP video door phone systems. With a 48Vdc output and 30W power, it provides reliability and safety for powering systems. The 4-module DIN format makes it easy to install in electrical panels.

Technical Specifications Power Supply

Main Features

Feature Value
Supply voltage 110-240 V AC
Output supply voltage 48V DC
Input connector Terminal block
Applicable to DIN rail Yes
Number of DIN modules 4


General Data

Feature Value
Height 62 mm
Width 90 mm
Depth 70 mm
Coating material ABS
Color White
Operating temperature -10/+50 degrees


Electrical Characteristics

Feature Value
Power supply 100 - 240 VAC
Switching power supply Yes
Maximum current consumption 900 mA
Maximum power output 30 W


General Characteristics

Feature Value
DIN modules 6
DIN rail mounting Yes
Visual signals Yes

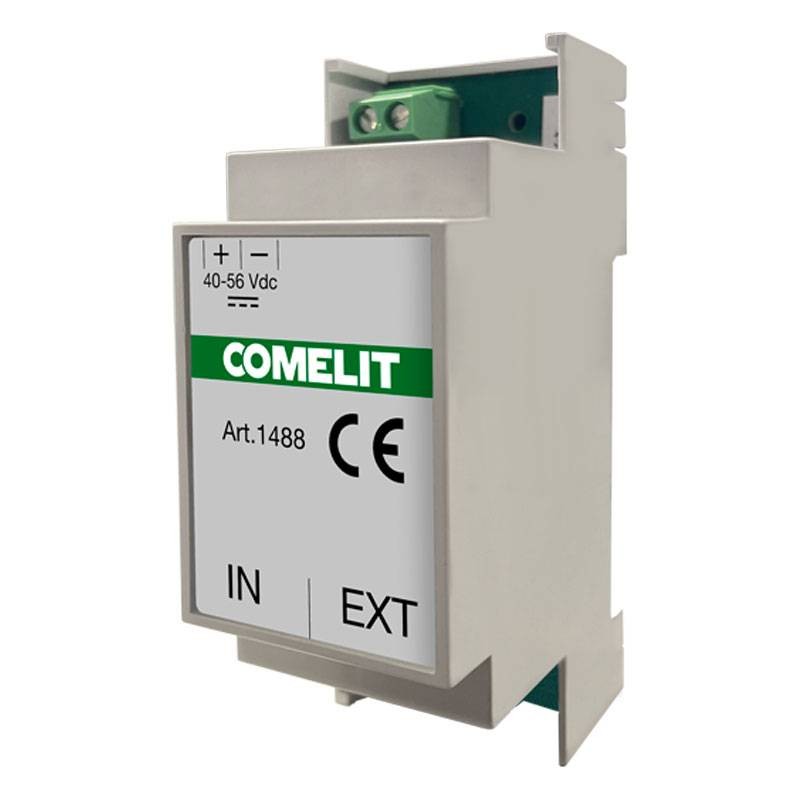

Comelit Power Injector for ViP Kit

The Comelit Power Injector is an essential device for managing and powering the ViP Kit. Designed to ensure stable power supply and efficient network management, it is equipped with two RJ45 Ethernet ports for indoor and outdoor station connection. The 2-module DIN format makes it easy to install in electrical panels.

Technical Specifications Comelit Injector

Feature Value
Power supply 48-56V DC
Ethernet Ports 2 (RJ45) - EXT port and INT port
Mounting DIN rail (2 modules)
Dimensions 36x90x58 mm

There are no reviews

Data sheet

KIT:
Video Intercom Kits
Model:
Intercom function
Single-family house
System:
IP
WIFI:
Yes
