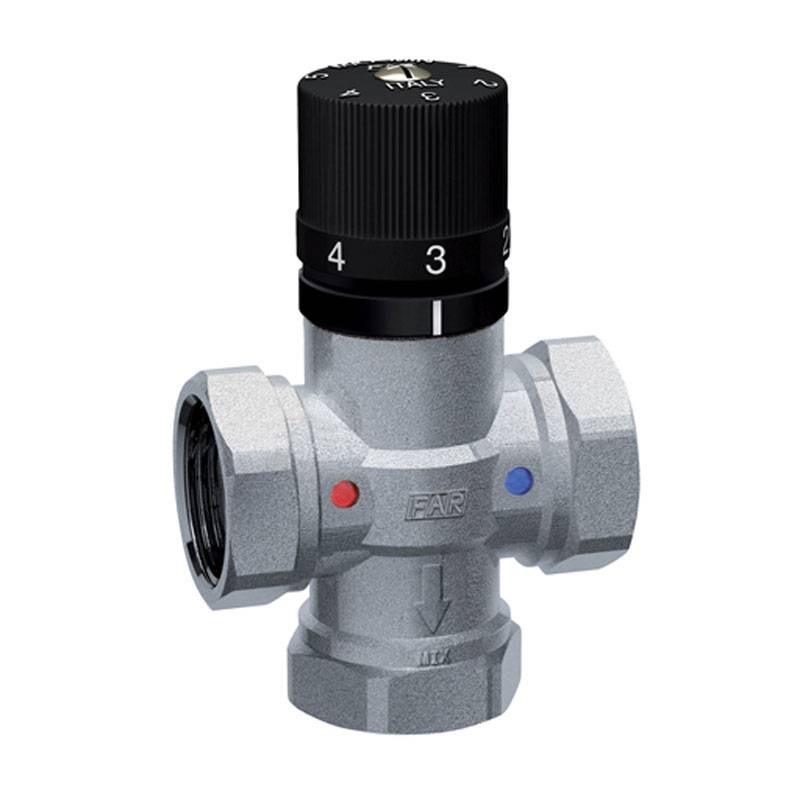

Far chromed thermostatic mixer F 3/4 for plumbing systems 3950 34


RFR 3950 34 8032628358425

Far thermostatic mixer for sanitary systems is designed to ensure a constant temperature of mixed water in sanitary systems, protecting users from sudden temperature changes and reducing the risk of scalding. Thanks to the anti-scalding function, the device automatically stops hot water supply in the absence of cold water, ensuring safe and efficient operation, with the following features:

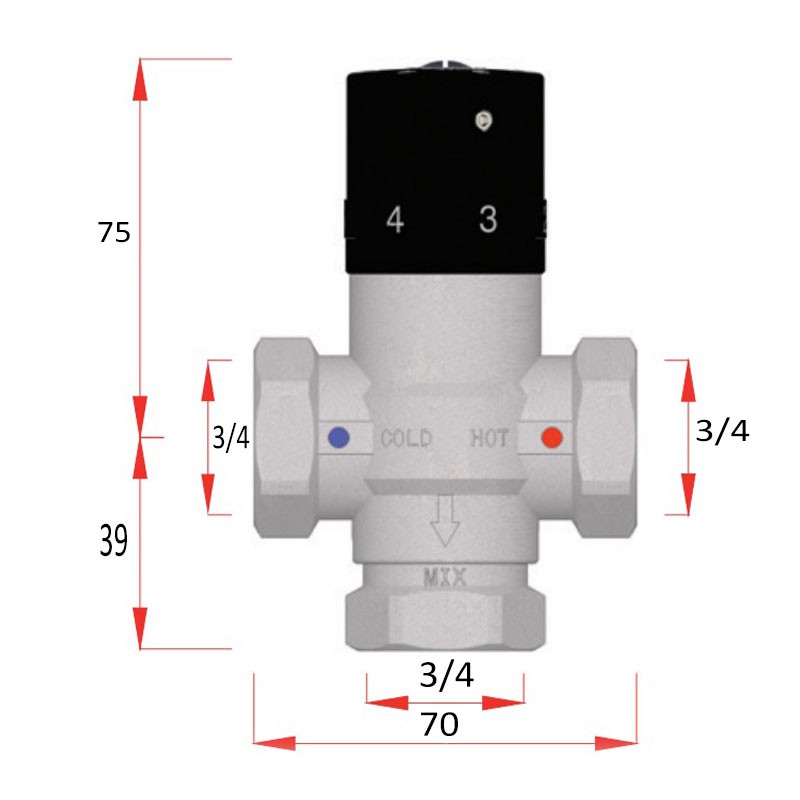

  • Connections: 3/4 inch female

  • Operating pressure: 10 bar

  • Maximum differential pressure: 3 bar

  • Material: Chrome-plated brass

  • Versatile installation: Can be installed in any position, respecting the HOT (hot water), COLD (cold water) and MIX (mixed water outlet) connections

  • Minimum operating flow rate: Ensures reliable performance even at low water flows

Do you have questions about this product or did you not find what you were looking for? Ask us!
Far chromed thermostatic mixer F 3/4 for plumbing systems 3950 34
€47.62
€47.62

€47.62
Tax included

€47.62

Buy it within and receive it from Tuesday, 18 March
Two-year warranty
Easy return within 14 days

Far F 1/2 chrome-plated thermostatic mixer for sanitary installations

Installation and recommendations

  • Preliminary flushing: Prior to installation, it is essential to thoroughly flush the piping to remove impurities such as sand, metal shavings or rust
  • Installation of filters: Recommended installation of filters to prevent the passage of impurities that could affect the operation of the mixer
  • Check valves: Required to prevent unwanted flow backflow in hydraulic systems
  • Pressure reducer: To be installed if the water supply pressure exceeds 5 bar

Advantages of the Far thermostatic mixer

  • Safety: Anti-scald function to prevent accidents caused by water that is too hot
  • Reliability: Constant temperature regulation, even with changes in pressure and flow
  • Versatility: Easy installation in any location with clear and intuitive connections
  • Durability: High-quality materials that ensure durability and optimal performance

Applications

  • Domestic and commercial plumbing systems
  • Central heating systems with mixed water distribution
  • Systems requiring constant control of water temperature to avoid temperature swings

Data sheet

Type:
Thermostatic mixers
Connection:
F
Connections:
3/4 inches
