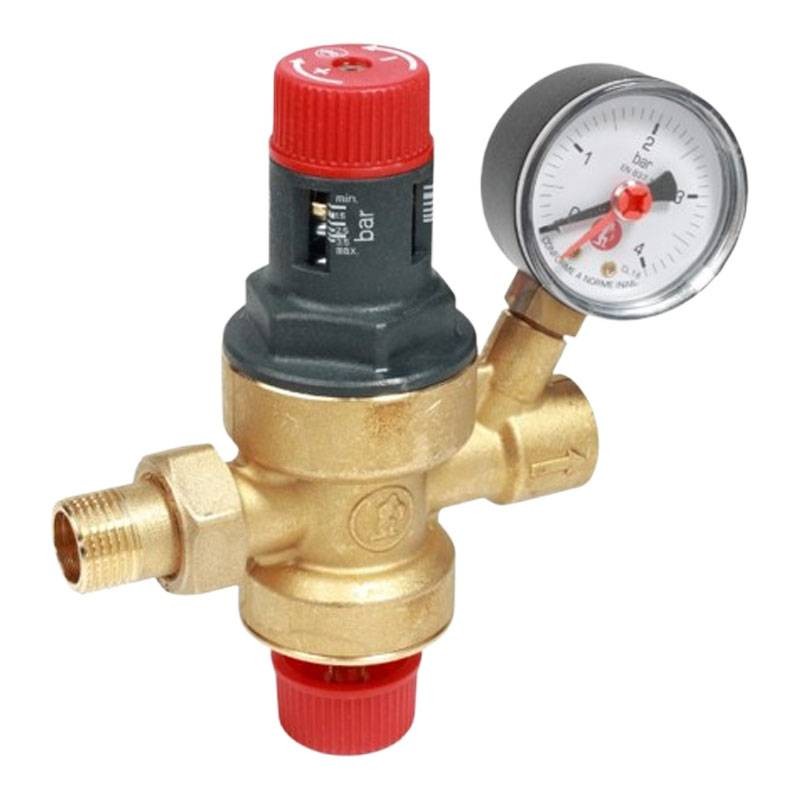

Giacomini M/F 1/2 automatic filling unit with pressure gauge R150MY003

Giacomini
GIA R150MY003 8009902312206

Giacomini automatic filling unit with pressure gauge is designed to manage water supply in closed-circuit heating and cooling systems. With the ability to preset pressure, this device ensures efficient operation and simplifies commissioning. Equipped with a pressure gauge and anti-scale functions, it is made of high-quality materials to ensure reliability and durability, with the following features:

  • Connections: Male/Female 1/2 inch

  • Material: Brass

  • Adjustment range: 0.3/4 bar (1.5 bar setting)

  • Maximum inlet pressure: 16 bar

  • Strainer: Stainless steel

  • Adjusting rod: Stainless steel

  • Gaskets: EPDM

Do you have questions about this product or did you not find what you were looking for? Ask us!
Giacomini M/F 1/2 automatic filling unit with pressure gauge R150MY003
€47.72
€47.72

€47.72
Tax included
Items Available: 129
Further availability of the manufacturer
€47.72

Buy it within and receive it from Tuesday, 18 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Giacomini M/F 1/2 automatic filling unit with pressure gauge

The ability to preset the pressure allows for faster commissioning of the system, ensuring safe and controlled filling.

Simplified maintenance

Thanks to the removable cartridge and filter, cleaning and maintenance are quick and easy, reducing system downtime.

Durability and reliability

Constructed from high-quality materials such as brass, stainless steel, and POM, the filling unit offers long life and resists wear and tear, ensuring optimal performance over time.

Universal compatibility

Suitable for installation on systems with vertical or horizontal piping, the device easily integrates into existing heating and cooling systems.

Key Features.

  • Automatic filling function: Ideal for maintaining the correct pressure in closed-circuit systems
  • Presetting option: Allows the desired pressure to be set (adjustment range 0.3-4 bar, factory setting 1.5 bar) before filling
  • Removable cartridge and filter: Facilitates cleaning and maintenance operations
  • Anti-scale function: Shutter seat made of synthetic material with low coefficient of friction
  • Temperature range: Operating between 5 and 70 degrees
  • Maximum inlet pressure: Up to 16 bar
  • Compatible with vertical and horizontal piping: Versatile installation, excluding upside-down position

Applications

  • Closed-loop heating and cooling systems
  • Central heating and water systems
  • Residential, commercial and industrial systems

Parfait 👌🏼 Très content

Read all reviews

Data sheet

Type:
Filling units
Connection:
M/F
Connections:
1/2 inches
