Giacomini ball valve F/F 1 inch filter R701FY025
GIA R701FY025
8009902363093

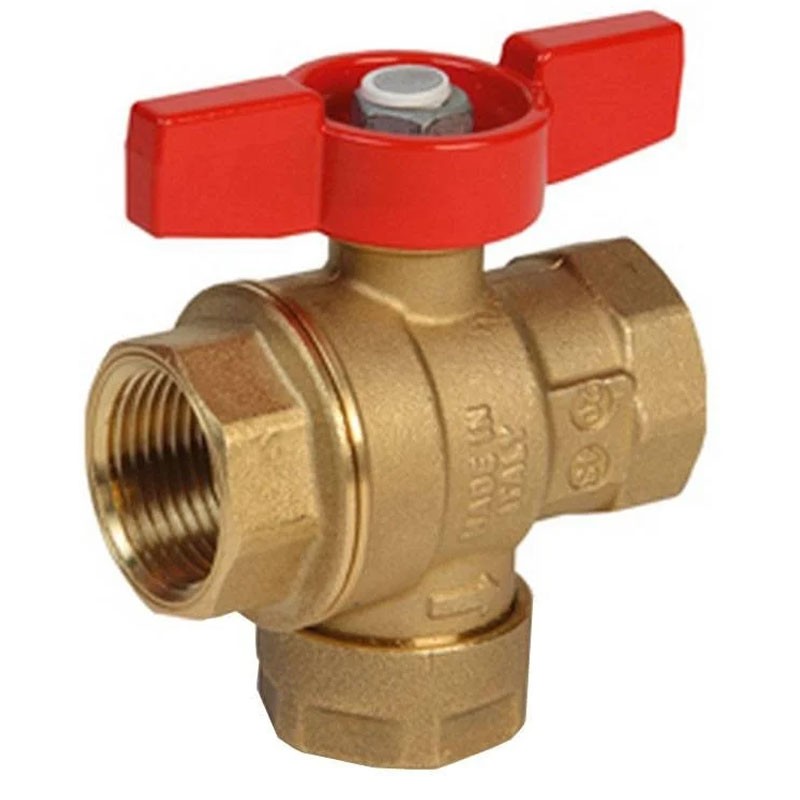

Giacomini ball valve with integrated filter with the following features:
- Connection: Female/Female
- Fittings: 1 inch
- Handle type: Butterfly
- Handle color: Red
- Hole pitch: 1 mm
- Inscribed hole diameter: 500 m
- Number of holes per cm²: 70
- 10 Kv
The R701F valve is particularly used in plumbing systems where there is a need to install a filter and shut-off valves in a limited space (e.g., upstream of energy meters, circulators, and/or on the inlets of boilers and heat pumps).
A magnet can also be installed inside the valve to achieve even more effective filtering.
€18.76
€18.76
Tax included
Tax included
Items Available: 22
: 5
Features:
- Suitable for water for heating/cooling systems and glycol solutions (max. 50 %)
- Full passage
- Brass valve
- Control rod with double O-ring seal
- Nut with anti-corrosion coating, warranty seal and hologram
- Red painted aluminum butterfly handle
- AISI 304 stainless steel filter: filtering capacity 500 ?
- Temperature range: 5/110 degrees
- Maximum operating pressure at 20 °C with water: 3.2 MPa (32 bar)

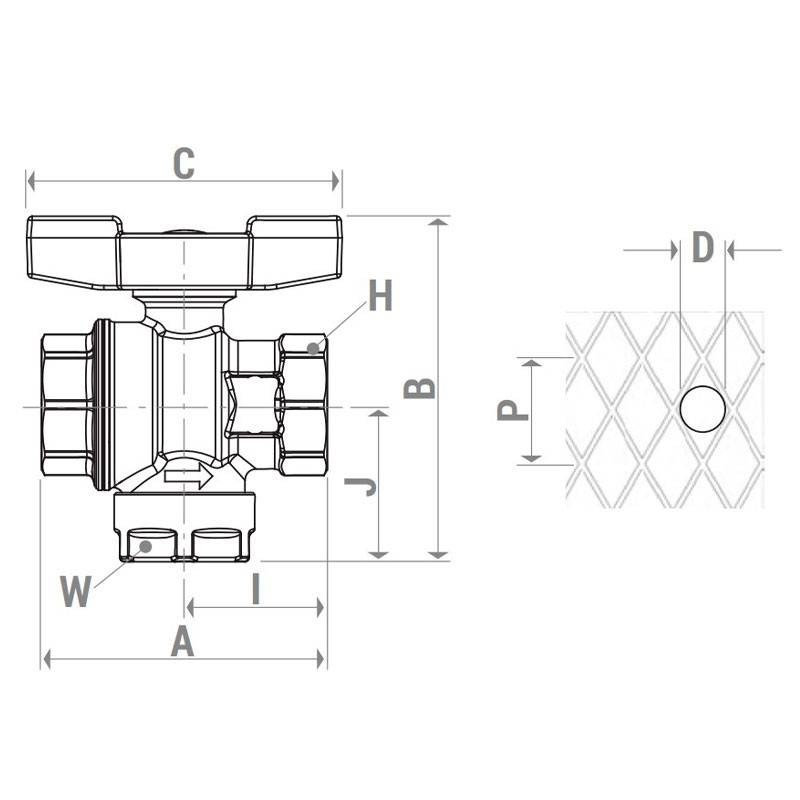

- Dimensions: 79x40x94x46x73xch38xch40 (A-I-B-J-C-H-W
Significantly reduced overall dimensions by integrating 3 hydraulic components into one valve: 1 strainer and 2 shutoff valves.
Minimized errors. The filter is equipped with a plastic guide that, following cleaning and maintenance operations, forces its insertion inside the valve only in the correct direction.
Ease of cleaning. To clean the filter, it is only necessary to close the ball valve, unscrew the cap and manually pull out the filter to be cleaned.
There are no reviews
Data sheet
- Type: Zone valves, diverter valves, actuators
- Connection: F/F
- Connections: 1 inch
