Bosch Condensing Boiler 2200 W 24KW Methane 7736901846
KIT BOSCH2200
4062321102289

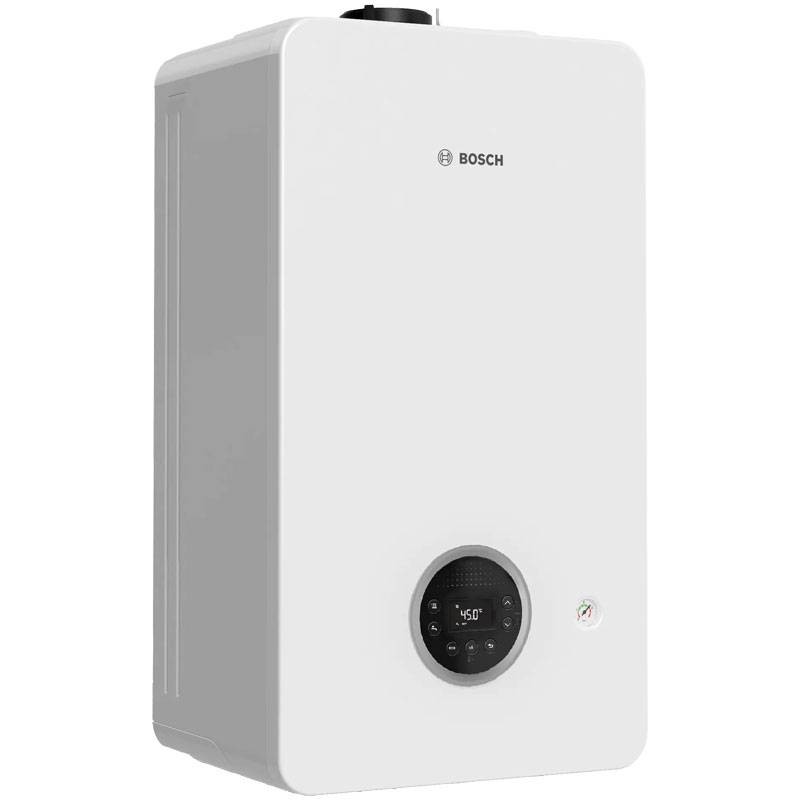

Bosch Wall-mounted condensing boiler 2200 W 24KW, natural gas version, flue kit included, compact and versatile for heating and sanitary hot water production. Energy Class A for heating and sanitary hot water.
Bosch Condensing Boiler 2200 W 24KW Methane 7736901846
€1,061.53
€1,061.53
Tax included
Tax included
Items Available: 12
Frequently bought together
Main Features:
- Small size and new rounded design
- High energy saving thanks to the seasonal efficiency of 94%.
- Perfect for replacement operations
- Modulation range up to 1:5.
Maximum reliability:
- The new Condens 2200 W boiler is distinguished not only by its small size, but also by its high robustness, guaranteed by the primary exchanger made of aluminium alloy Al-Si WB6.
High performance in class A+:
- The new Condens 2200 W guarantees a seasonal efficiency of 94%, the maximum obtainable from a condensing boiler. If combined with a modulating thermoregulator with climatic function it is also able to reach Class A+.
Great efficiency in a small space:
- The compactness and versatility of the new Condens 2200 W boiler make it the ideal solution in case of replacement, because it can adapt to any domestic environment.
Features:
- Max rated heat output. (Pmax) 40/30 °C 25,2 kW
- Max. nominal heat output (Pmax) (Pmax) 50/30 °C 25,0kW
- Max. rated thermal output (Pmax) (Pmax) 80/60 °C 24,0kW
- Max. rated thermal input (Qmax) (Qmax) 24,5kW
- Min. rated heat output (Pmin) (Pmin) 40/30 °C 5,3kW
- Min. rated thermal output (Pmin) (Pmin) 50/30 °C 5,3kW
- Min. rated thermal output (Pmin) 80/60 °C 4,8kW
- Nominal heat output min. (Qmin) 4,9kW
- Max. nominal heat output domestic hot water (PnW) 25,0kW
- Max. nominal heat input of domestic hot water (QnW) 25,5kW
- Efficiency max. power rating thermal curve 40/30 °C 102
- Efficiency of max power 50/30 °C thermal curve 10% Efficiency of max power 50/30 °C thermal curve
- Efficiency of max. power on thermic curve 80/60 °C 98% Efficiency of min. power on thermic curve 36
- Efficiency min. power curve 36/30 °C 109,5% Efficiency min. power curve 40/30 °C
- Efficiency min. thermal curve 40/30 °C 108% Efficiency min. thermal curve 50/30 °C
- Efficiency min. thermal curve 50/30 °C 108% Efficiency min. thermal curve 50/30 °C 108
- Efficiency of min. heating curve 80/60 °C 97,5% Efficiency of min. heating curve 80/60 °C 97,5% Efficiency of min. heating curve 80/60 °C
- Overall efficiency normalized thermal curve 75/60 °C 105% Power output min.
- Overall efficiency standardised thermal curve at 30% load 40/30 °C 108.5% Efficiency
- Methane gas H (Hi(15 °C) = 9,5 kWh/m3) 2,62 m3/h
- Methane gas H 17 - 25 mbar
- Precharge pressure 0,75bar
- Nominal capacity of expansion tank according to EN 13831 6 litres
- DHW flow rate max. 10 litres/min
- DHW temperature 35 - 60 Degrees
- Cold water inlet temperature max. 60 degrees
- Max. permissible DHW pressure 10bar
- Min. dynamic pressure 0.3bar
- Specific flow rate according to EN 13203-1 (?T = 30 K) 12.2 l/min
- Flue gas mass flow rate at max. rated heat output/min. 11.31/2.40 g/s
- Flue gas temperature 80/60 °C at max./min. rated heat output 70/58 degrees
- Gas temperature of products of combustion 40/30 °C at max./min. rated thermal power 50/35 degrees
- Residual head 125PA
- CO2 at nominal heat output max. 9.4%.
- CO2 at min. nominal heat output 8.6%.
- NOx class 6
- Condensate quantity max. (TR = 30 °C) 1.7 l/h
- pH value approx. 4.8
- Approval Product ID no. CE-0085CS0332
- Electrical voltage 230V 50hz
- Max. electrical power consumption (heating operation) 90W
- EMC limit value class B
- Sound pressure level 45 dB(A)
- Protection IP X4D
- Maximum delivery temperature 82 Degrees
- Max. permissible operating pressure (PMS) heating 3 bar
- Permissible ambient temperature 0-50 Degrees
- Heating water content 7 litres
- Weight (without packaging) Kg 35

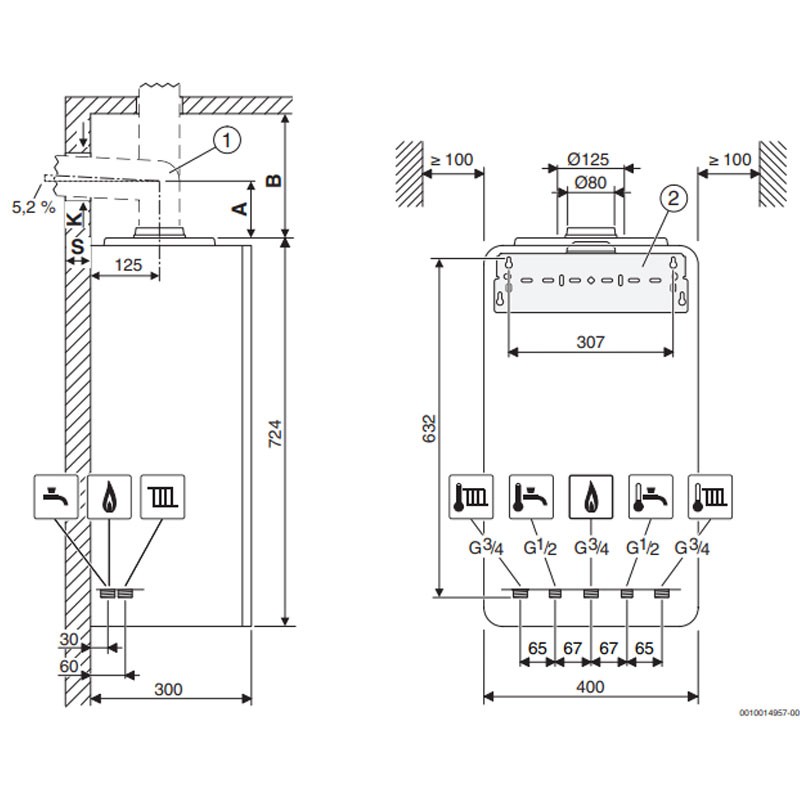

- Dimensions L × H × D 400 × 710 × 300mm
- KIT Flue Gas for Bosch condensing boilers horizontal telescopic terminal diameter 60/100, with starting curve 87 °.
There are no reviews
Data sheet
- Type: Boilers
- Model: Natural gas
- Thermal power: 24 kW
- Energy class: A
- Series: Condens
