Specific characteristics of the components in the KIT

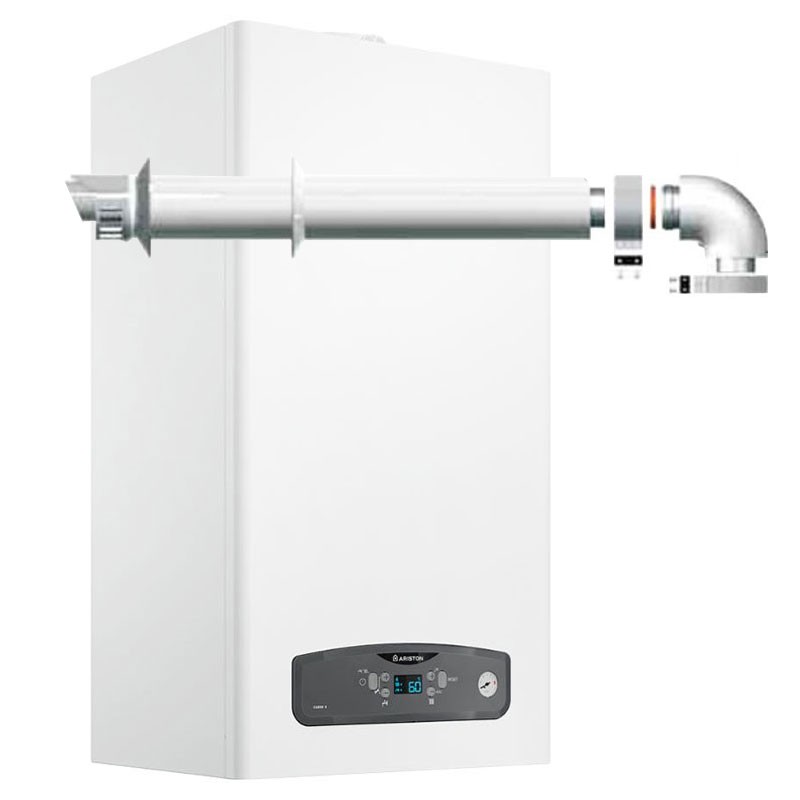

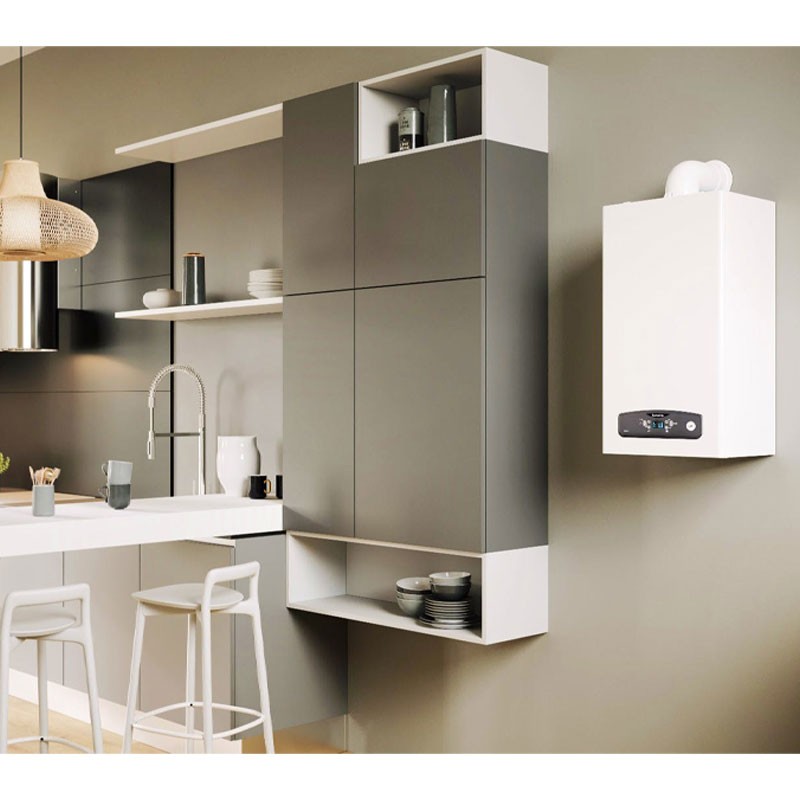

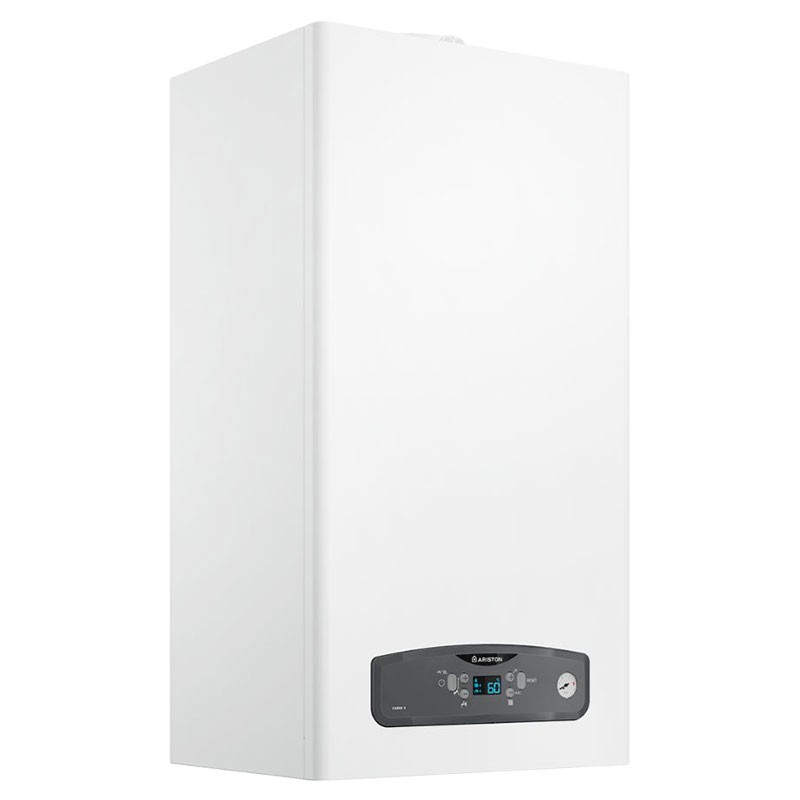

Condensation boiler Ariston CARES S 24kW (3301637)

The condensing boiler suitable for every need, able to combine great performance and high robustness. Thanks to the stainless steel condensing exchanger, CARES S represents the right balance between comfort and performance.

Advantages:

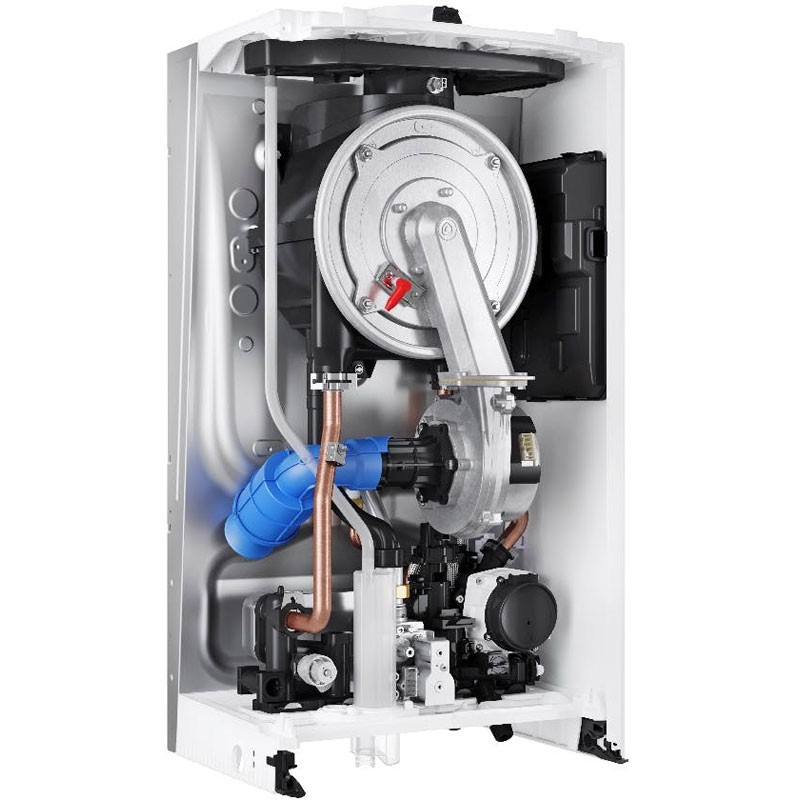

• Stainless steel condensing exchanger

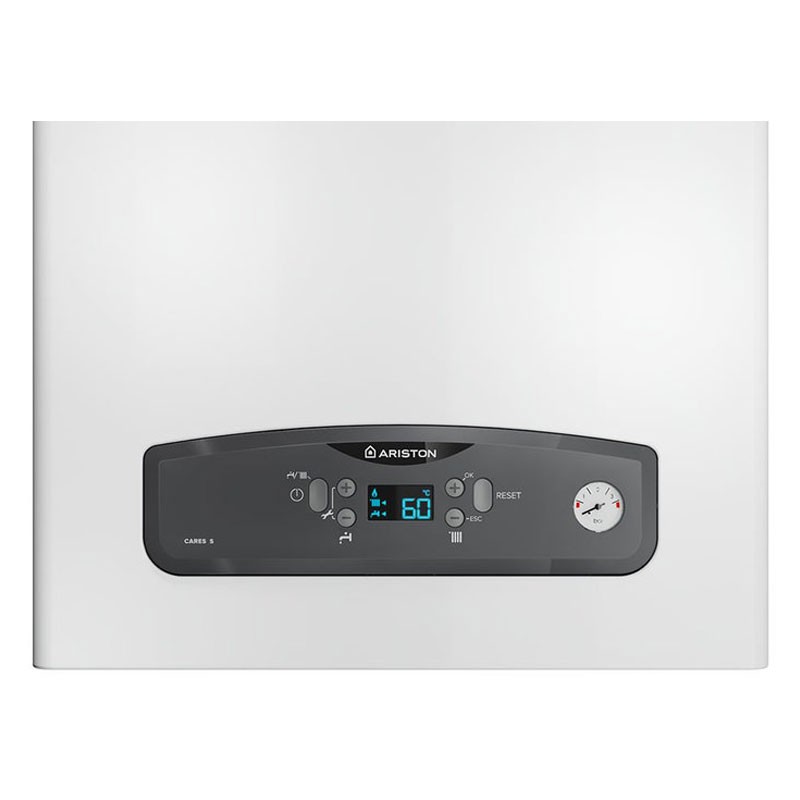

• Mini LCD display
• More robust design thanks to the new metal front panel
• Better accessibility thanks to the front hydrometer
• Modulation ratio 1:5
• Quiet and compact
• BusBridgeNet® communication protocol
• NOx class 6
• Installation in partially protected areas
• Compatibility with positive pressure collective flues (C10)
• MET/LPG operation with standard kit
• AP operation with optional kit
• Heating energy class A
• Sanitary water energy class A



Technical data:

• Max/min nominal heat input (heating) PCI kW 20.0/4.7
• Max/min nominal heat input (domestic hot water) PCI kW 23,5/4,7
• Max. useful heat output/min (heating) (60-80 Degrees) kW 19,6/4,6
• Max. useful heat output/min (heating) (30-50 Degrees) kW 21,0/4,9
• Max. useful heat output/min (heating) kW 23,0/4,6
• Efficiency at nominal heat input (60-80 Degrees) 98%.
• Efficiency at nominal thermal flow (30/50°C) PCI 105%
• Efficiency at 30% at 30°C PCI 108,5%
• Max/min heating temperature (high temp.) °C 82 / 35
• Max/min heating temperature (low temp.) 45 / 20 °C
• Max/min sanitary temperature °C 60 / 36
• Hot water flow rate T=25°C liters/min 13.2
• Hot water quantity T=35°C liters/min 9,43
• Specific flow rate (first 10 with T=30°C) l/min 11,0
• Minimum operating temperature °C > 0°
• Power supply voltage/frequency V/Hz 230/50
• Total absorbed electric power 62W
• Protection rating of electrical system IPX5D
• Heating energy class A
• Sanitary energy class A
• Drawing profile XL
• Dimensions: Height 745 mm - Width 40 mm - Thickness 31.9 mm.



Connections:

• System delivery Ø 3/4 gas
• Sanitary outlet Ø 1/2 gas
• Gas inlet Ø 3/4 gas
• Sanitary inlet Ø 1/2 gas
• System return Ø 3/4 gas
• Flue gas outlet (Ø mm) F1: 60/100-80/125 (FF) - F2: 80/80 (FF).

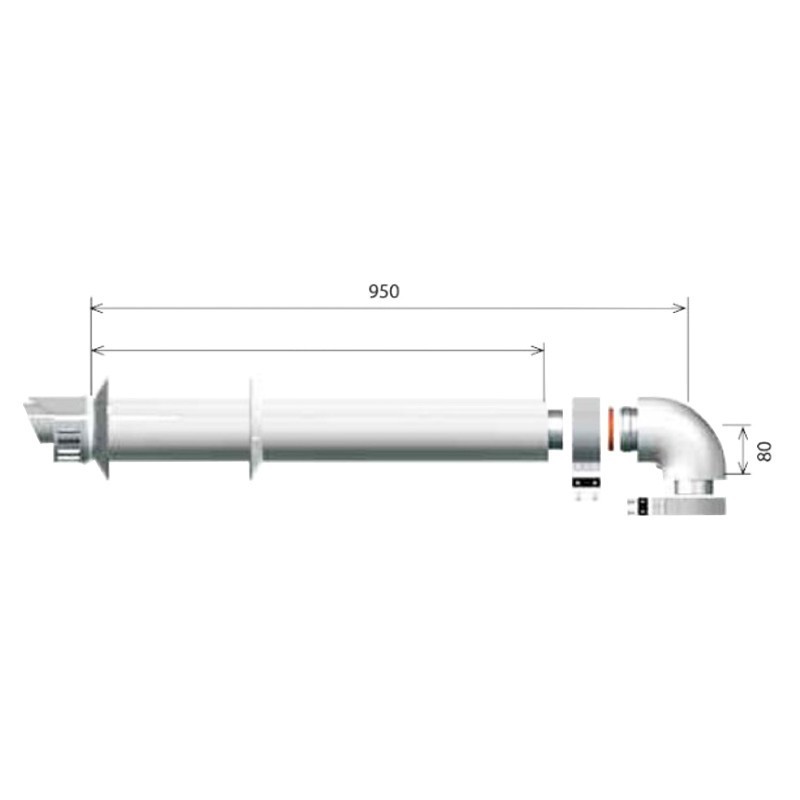

Ariston coaxial exhaust kit 100 cm horizontal 60/100 (3318073)

• Ariston coaxial drain kit pipe length 1 meter, horizontal, diameter 60/100 starting horizontal complete with curve and terminal
• Coaxial kit Ø60/100 L 1000 mm in AL/PPS with horizontal start
• Complete with 90° elbow and wall drainage terminal
• EPDM clamps, gaskets, fixing screws and wall cover ring nuts.
• Necessary to install coaxial systems Ø60/100 with horizontal starting point with curve and wall flue outlet.
