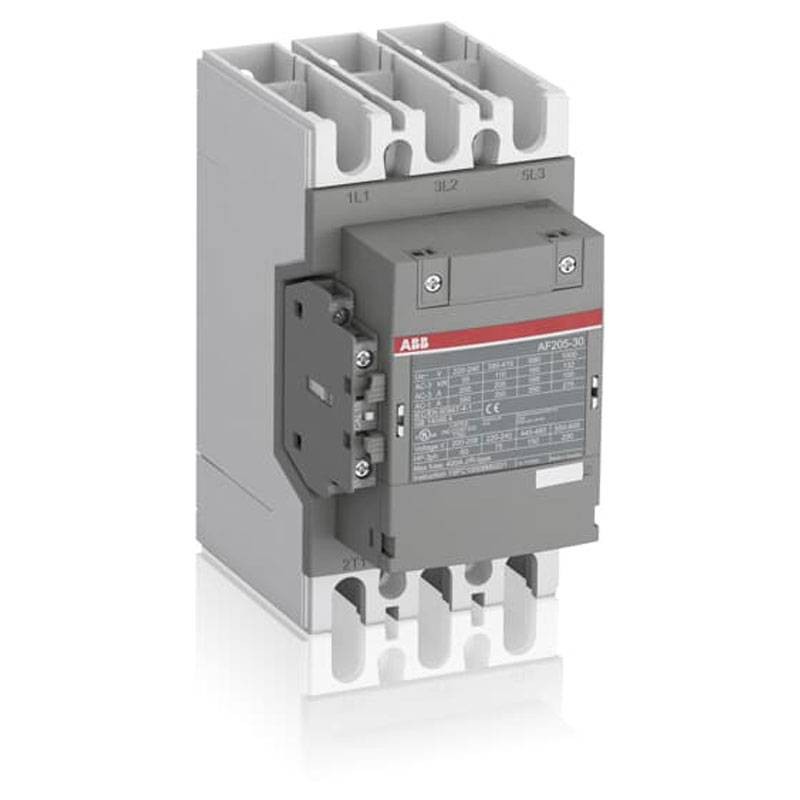

ABB 3P Contactor 205A 100-250V AC/DC 1NA+1NC AF205301113

Abb
ABB AF205301113 7320500480564

Abb contactor, with the following characteristics:

  • Rated main circuit operation voltage 1000 Vac
  • DC operation control circuit rated voltage 100-250 Vac
  • 3 poles
  • DIN connection (universal for any switchboard on the market)
  • Main circuit rated frequency 50/60 Hz
  • Operating current 205 amperes
Do you have questions about this product or did you not find what you were looking for? Ask us!

ABB 3P Contactor 205A 100-250V AC/DC 1NA+1NC AF205301113

€793.64
€769.83
€769.83

ABB 3P Contactor 205A 100-250V AC/DC 1NA+1NC AF205301113

Lowest price in 30 days:
€793.64
Save 3%
€769.83
Tax included
Items Available: 1
Further availability of the manufacturer

ABB 3P Contactor 205A 100-250V AC/DC 1NA+1NC AF205301113

€769.83

Buy it within and receive it from Wednesday, 29 January
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

A contactor is a device for closing and opening electrical circuits, mostly high voltage circuits, by remote control.


IEC 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes contact channels between the system and the power structure. In short, a switch of sorts to be used for all eventualities.


Features:

  • Abb series
  • Rated main circuit operation voltage 1000 Vac
  • Rated control circuit operating voltage DC 100-250 Vac
  • Operating current 205 amps
  • Rated main circuit frequency 50/60 Hz
  • 3 poles
  • Number of NO main contacts 3
  • Number of NC main contacts 0
  • Number of NO auxiliary contacts 1
  • Number of NC auxiliary contacts 1
  • Terminal type: main circuit bars
  • Main terminal degree of protection IP20
  • Width 105 mm
  • Depth 152 mm
  • Height 196 mm
  • Net weight 2.4 kg

There are no reviews

Data sheet

Type:
Contactors
Voltage:
1000VAC
Poles:
3P
Amps:
205A
