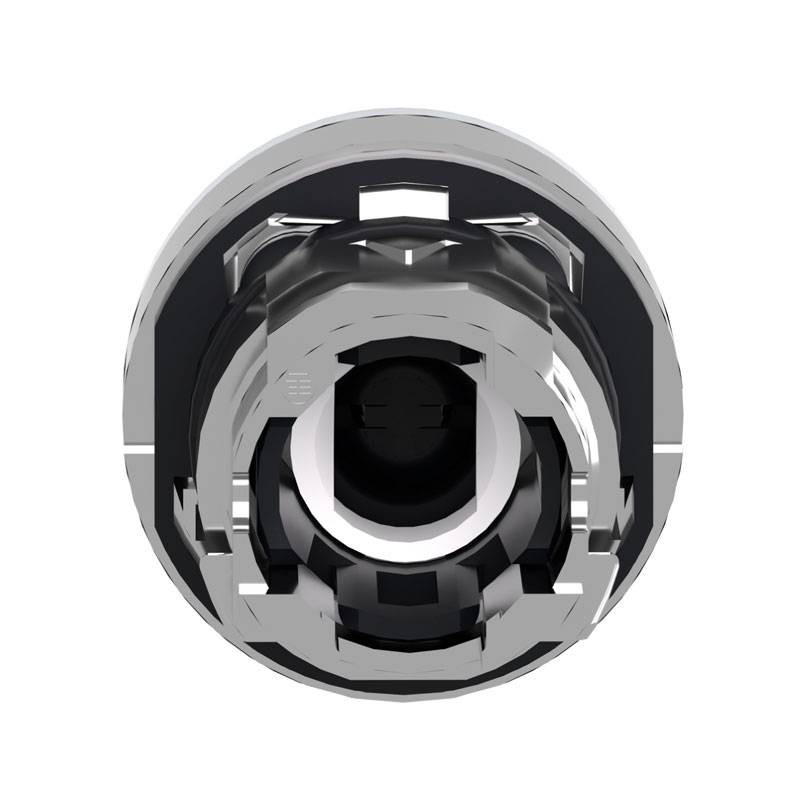

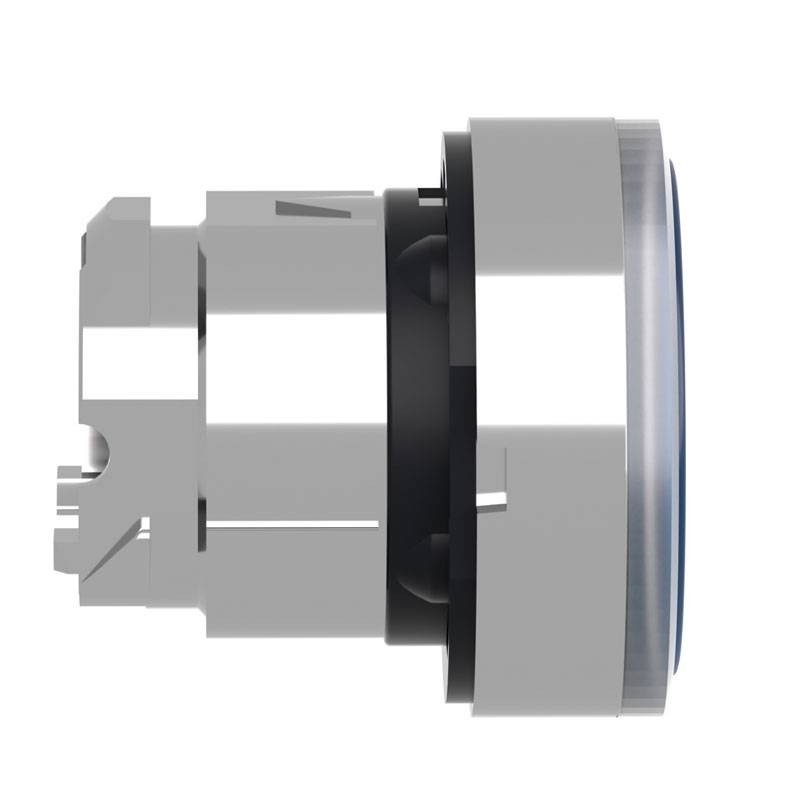

Schneider Light Button Head for LED Ø22 ZB4BW363
SNR ZB4BW363
3389110889833
Schneider luminous button head for LED with the following characteristics:
- Type of product or component: Bright button head
- Device Name: ZB4
- Product compatibility: Universal LED
- Mounting diameter: 22mm
- IP degree of protection IP66 - IP67 - IP69 - IP69K
- IK Degree of Protection: IK06
Schneider Light Button Head for LED Ø22 ZB4BW363
€9.57
€9.57
Tax included
Tax included
Items Available: 76
: 12
Frequently bought together

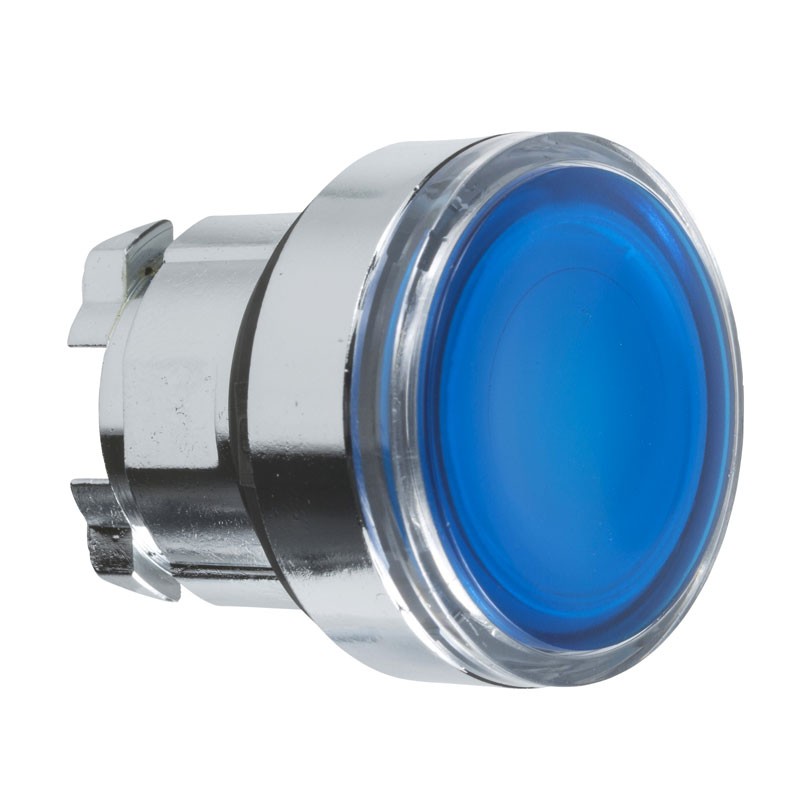

Schneider Electric's Harmony XB4 integrated LED Harmony XB4 flush bezel light button head is blue and operates with an impulse mechanism. It is circular and has a chrome-plated metal ferrule.
This light head for integrated LED provides a versatile interface for machine control. It can be easily installed and replaced on complete pushbutton units compatible with pushbuttons and contact elements by snap-on mounting.
It is clearly distinguishable visually from a distance due to the light head and vivid color, and by touch due to the flush ferrule element, which minimizes machine control errors.
With its IP66 rating, it is resistant to shock and vibration, is protected against dust and liquid ingress, and is ideal for use in harsh environments.
Metal Ferrule. Simple modular design simplifies post-installation maintenance, modification and adaptation of machines.
Designed to fit into a standard 22 mm hole to ensure compatibility in pre-existing machinery.
Wide operating temperature range of -40°C to 70°C ensures versatility of product use.
High brightness for easy identification of functions and operating modes.
Features:
- Head material: Chrome-plated metal
- Head type: Standard
- Head shape: Circular
- Operator Type: Pulse
- Operator Info: With smooth gem
- High pressure washing resistance: 7000000 Pa at 55 °C, distance: 0.1 m
- Mechanical durability: 10000000 cycles
- Storage temperature: -40/+70 °C
- Operating ambient temperature: -40/+70 °C
- Class I in accordance with IEC 60536
- Vibration resistance: 5 gn (F= 2500 Hz) complying with IEC 60068-2-6
- Shock resistance: 30 gn (duration = 18 ms) for half sine wave acceleration complies with IEC 60068-2-27 - 50 gn (duration = 11 ms) for half sine wave acceleration complies with IEC 60068-2-27

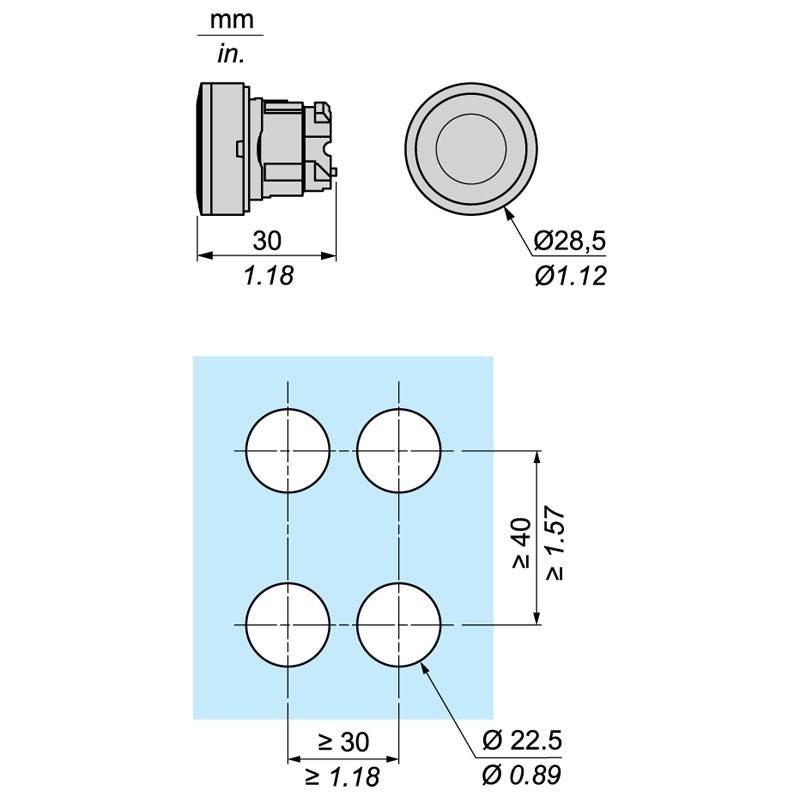

- Dimensions: height 29 mm width 29 mm depth 30 mm
Electrical composition code:
- M1 for <6 single contacts in Front mount direct to pushbutton with LEDs
- M2 for <6 single and double contacts in Direct front mounting on button with LED
- M6 for <2 single contacts in Direct front mounting on button with integrated LED and transformer
- M10 for <2 single contacts in Direct front mounting on button with LED
There are no reviews
Data sheet
- Type: Buttons
