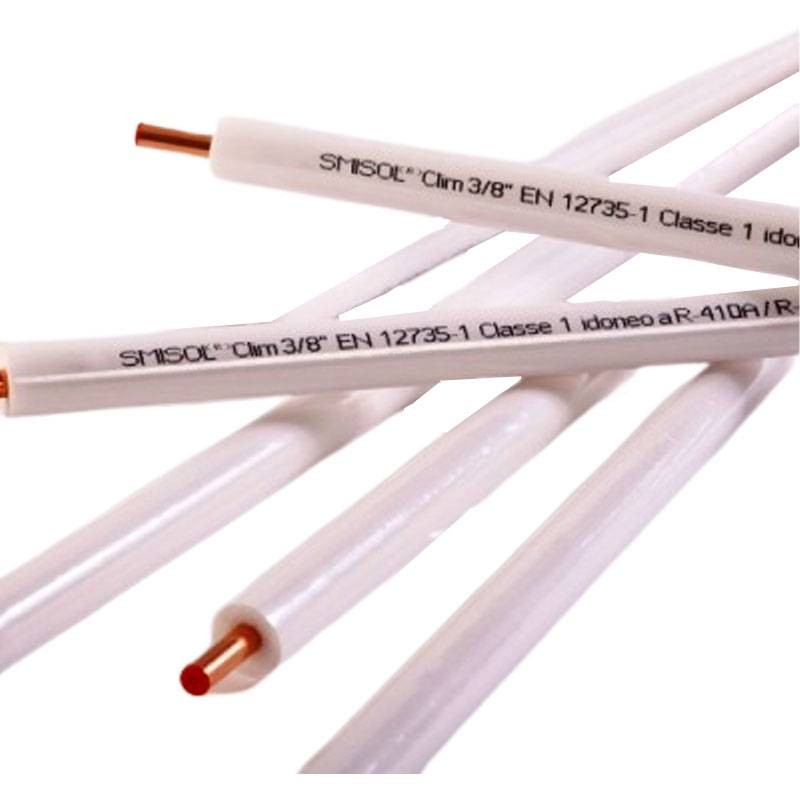

SMISOL CLIM Copper Pipe for Air Conditioning Systems 3/8 inch 50 meters 0079539
04X 0079539
SMISOL CLIM copper pipe for Air Conditioners, Transporting refrigerant gases (R32, R410A, R407) with the following characteristics:
- Outer diameter: 3/8 inch
- Thickness: 8 mm
- Burst pressure: 33 Mpa
- Operating pressure: 8.25 Mpa
- Water content: 0.051 l/m
- Dimensions: 9.52 x 0.7 mm
Fields of use: Air conditioning, Transporting refrigerant gases (R32, R410A, R407).
50 meter long.
SMISOL CLIM Copper Pipe for Air Conditioning Systems 3/8 inch 50 meters 0079539
€4.22
€4.22
Tax included
Tax included
Items Available: 350
: 240
Coating characteristics:
- Thermal conductivity: l 0.038 W/mK at 40°C
- Average value of water vapor diffusion resistance factor ? > 15.000
- Average density of the coating: 33 kg/m3
- Free of ammonia residues
- Excellent resistance to external chemical agents
- Fire behavior: BLs1d0 (EN 13501-1)
- CFC- and HCFC-free (EEC/EU Reg. 2037/2000)
Internal surface: The internal surface of the copper tube is shiny, clean and dry, which are fundamental characteristics of a product normally found on the market for industrial use. This peculiarity allows for an integrated system with the terminal elements of the system. The special internal cleanliness of SMISOL Clim is safeguarded by sealing the ends of each roll by means of plugs, directly during production.
Eccentricity: Eccentricity defines the distance between the center of the outer circumference and the center of the inner circumference, and is a key parameter for the folding operation. Zero eccentricity occurs when the two centers coincide perfectly, while the presence of eccentricity results in a change in wall thickness that is greater the higher it is.
Exterior protection: Closed-cell polyethylene foam sheathing with an average value of water vapor diffusion resistance factor ? greater than 15000. The insulating sheathing is produced in full compliance with European EEC/EU Regulation 2037/2000, which requires the use of expanded insulating sheathing without the use of CFCs and HCFCs, gases that are harmful to health and the environment, and has a fire behavior of class BLs1d0 (EN 13501-1) and class 1 (Ministerial Decree 26/06/84).
There are no reviews
Data sheet
- Diameter:
- 9.52mm
- Type:
- Copper pipes for air conditioning systems
- Length:
- 50 meters
