Bticino Smart Electric Panel Kit for Connected Loads Management FC80KIT
BT1 FC80KIT
8005543647882

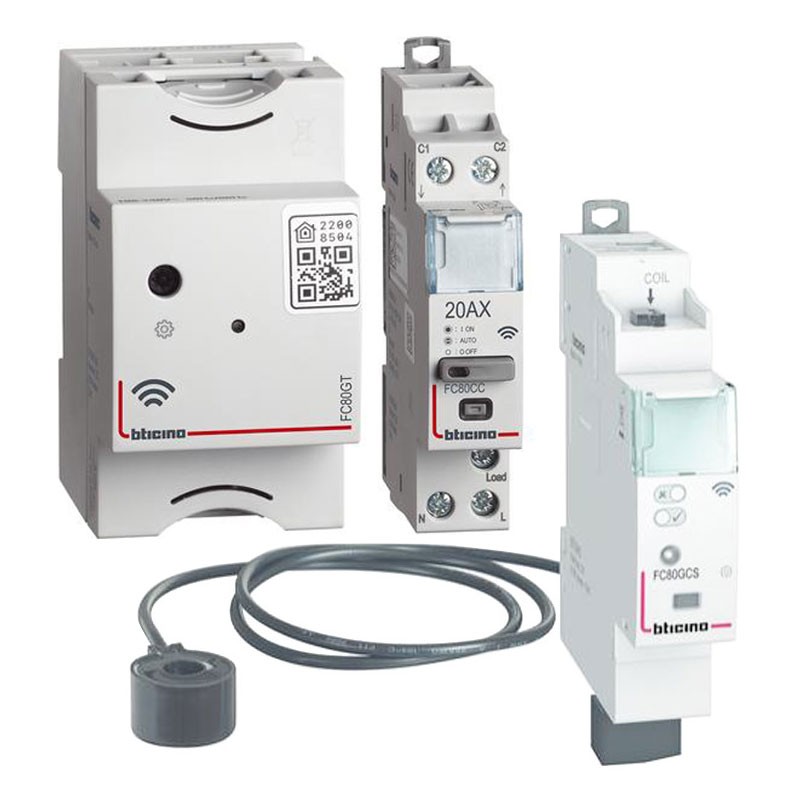

Bticino Smart Electric Panel Kit for the management of connected loads composed of:
- 1 Gateway DIN smart FC80GT
- 1 contactor DIN smart FC80CC
- 1 module for managing loads DIN smart FC80GCS.
Bticino Smart Electric Panel Kit for Connected Loads Management FC80KIT
€289.00
€289.00
Tax included
Tax included
Items Available: 8
: 1
KIT components specifications
- Bticino Smart DIN FC80GCSLoad Management Module to monitor the consumption of the entire electrical system, feed/supply the loads and set scenarios with priority and non-priority loads. When the maximum power foreseen by the user's contract is reached, the non-priority loads will be temporarily disconnected to avoid possible and annoying blackouts. A toroid is supplied for measuring the input current. Power supply 110-230 Va.c. 1 DIN module.
- FC80GT smart DINgateway for the remote control of lights, shutters, sockets and loads powered by the electrical panel through all the connected products of the Living Light with Netatmo, Living Now with Netatmo civil series and DIN devices of the BTDIN with Netatmo range (FC80RC, FC80CC and FC80GCS). Zigbee/IP Wi-Fi communication. It can be used as an alternative to the L/N/NT4500C recessed gateway of the connected Livinglight series and K4500C of the connected Living Now series. Power supply 100-240 Va.c. - Dimensions 2.5 DIN modules.
- FC80CC smart DIN contactor suitable for controlling single-phase loads < 20 A. The smart contactor allows you to remotely control (ON / OFF) loads such as water heaters, pool pumps, induction plates and charging sockets for electric vehicles, from smartphones with the Home + Control App or through a voice assistant. Equipped with load current meter. Dimensions 1 DIN module. Power supply 100-240 Va.c. 50/60 Hz.
I got faulty load measurement unit. Regardless of the consumption, it always show the same kW value
kit connesso, il software può essere migliorato, soprattutto quello per la gestione dei carichi
Data sheet
- KIT: Load Management Kit
