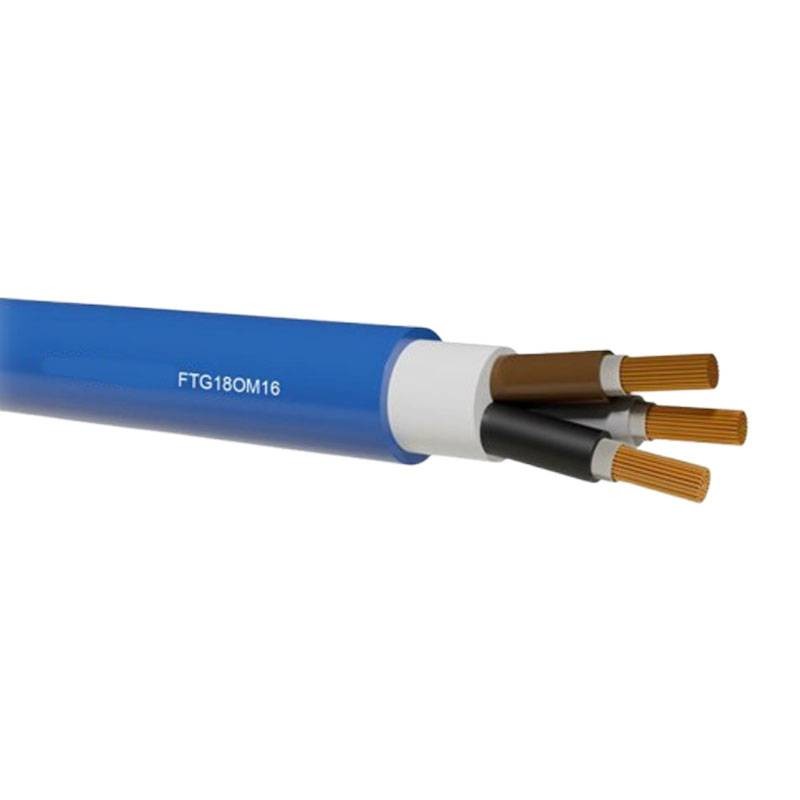

Flexible energy cable FTG18OM16 5G25 0.6/1 kV blue

Brand: Cavi

Code: 9X9 FTG18OM165G25 EAN:

Flexible power cable 5G16 with the following characteristics:

Conductor diameter: 6.2 mm
Insulation thickness: 1.2 mm
Sheath thickness: 2 mm
Max electrical resistance at 20°C: 0.78 ohm/ km
Current carrying capacity in tube in air: 105A
Current carrying capacity in free air: 127A

Flexible fire-resistant energy cable, insulated with G18-quality rubber,under M16-quality special thermoplastic sheath, halogen-free, fire-propagating and low smoke development.

The selling price is intended per meter.

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.

Flexible energy cable FTG18OM16 5G25 0.6/1 kV blue

€26.62

Flexible energy cable FTG18OM16 5G25 0.6/1 kV blue

€26.62
Tax included

Items Available: 154

: 124

Further availability of the manufacturer

Two-year warranty

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Features:

Conductor: Flexible annealed red copper cord, class 5
Ribbon: Glass/mica helically wound
Insulator: Rubber compound, G18 quality
Filler: Compound of non-hygroscopic material
Fire resistance: 120 minutes at 820°C subjected to direct fire and mechanical shock (PH120-F120)
Rated voltage Uo/U: 0.6/1 kV
Maximum operating temperature: 90°C
Minimum operating temperature: -15°C (under no mechanical stress)
Minimum installation temperature: -5°C
Maximum short-circuit temperature: 250°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 14 times the maximum outer diameter

Conditions of use: Suitable for carrying power for electrical systems when maximum safety against fire is required, such as emergency and alarm lights, railway stations, tunnels, subways, air terminals, automatic fire detection systems, fire extinguishing devices, automatic door openers, ventilation and air conditioning systems, emergency telephone systems. For fixed installation inside even wet environments and outdoors. Can be installed on masonry and metal structures, on walkways, pipes, ducts and similar systems. Allowed for underground installation, even unprotected.
