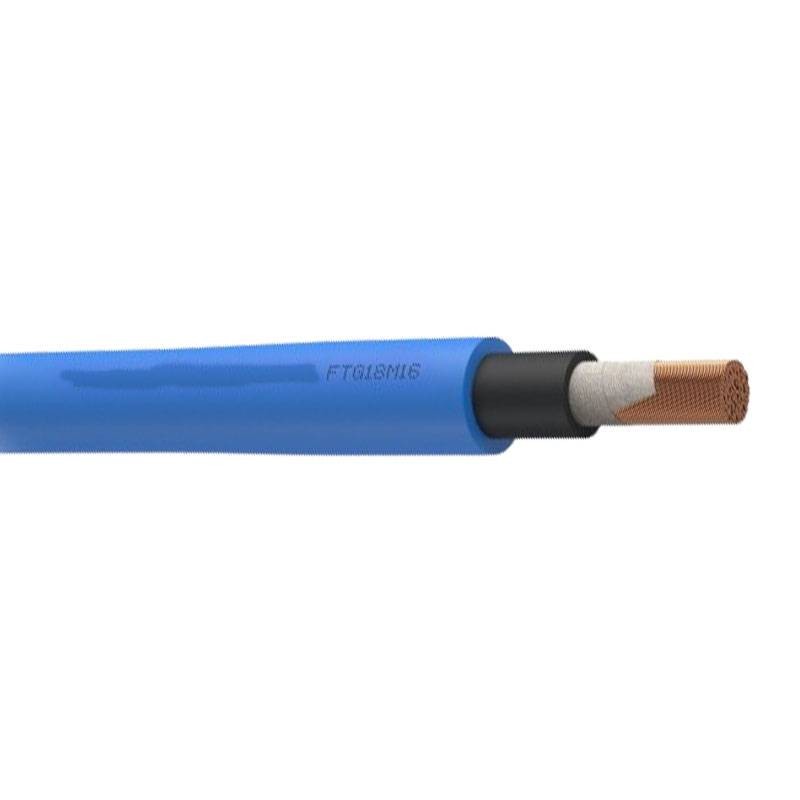

Flexible power cable FTG18M16 1x120 sq. mm 0.6/1 kV blue

Cavi
9X9 FTG18M161X120

FTG18M16 1x120 sq mm flexible cable with the following characteristics:



  • Outer diameter: 22.8 mm
  • Conductor diameter: 13.7 mm
  • Insulation thickness: 1.6 mm
  • Sheath thickness: 2 mm
  • Max electrical resistance at 20°C: 0.161 ohm/ km
  • Current carrying capacity in tube in air: 312 A
  • Current carrying capacity in free air: 383 A



Flexible fire-resistant energy cable, insulated with G18-quality rubber,under M16-quality special thermoplastic sheath, halogen-free, fire-propagating and low smoke development.



The selling price is intended per meter.

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Do you have questions about this product or did you not find what you were looking for? Ask us!

Flexible power cable FTG18M16 1x120 sq. mm 0.6/1 kV blue

€20.70
€20.70

Flexible power cable FTG18M16 1x120 sq. mm 0.6/1 kV blue

€20.70
Tax included
Items Available: 537
Further availability of the manufacturer

Flexible power cable FTG18M16 1x120 sq. mm 0.6/1 kV blue

€20.70

Buy it within and receive it from Monday, 11 November
Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Conductor: Flexible annealed red copper cord, class 5
  • Ribbon: Glass/mica helically wound
  • Insulator: Rubber compound, G18 quality
  • Filler: Compound of non-hygroscopic material
  • Fire resistance: 120 minutes at 820°C subjected to direct fire and mechanical shock (PH120-F120)
  • Rated voltage Uo/U: 0.6/1 kV
  • Maximum operating temperature: 90°C
  • Minimum operating temperature: -15°C (under no mechanical stress)
  • Minimum installation temperature: -5°C
  • Maximum short-circuit temperature: 250°C
  • Maximum tensile stress: 50 N/mm2
  • Minimum bending radius: 14 times the maximum outer diameter



Conditions of use: Suitable for carrying power for electrical systems when maximum safety against fire is required, such as emergency and alarm lights, railway stations, tunnels, subways, air terminals, automatic fire detection systems, fire extinguishing devices, automatic door openers, ventilation and air conditioning systems, emergency telephone systems. For fixed installation inside even wet environments and outdoors. Can be installed on masonry and metal structures, on walkways, pipes, ducts and similar systems. Allowed for underground installation, even unprotected.

There are no reviews

Data sheet

Colour:
Blue
Type:
FTG18M16
Cross-Section:
120mmq
With yellow/green:
No
Number of cables:
1
