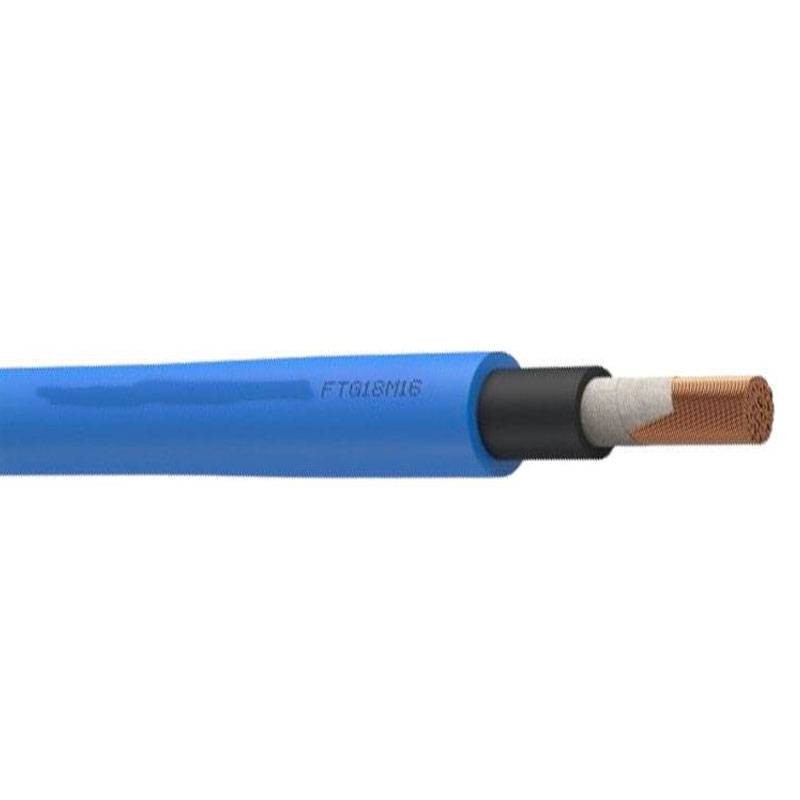

Flexible power cable FTG18M16 1x70 sq. mm 0.6/1 kV blue

Cavi
9X9 FTG18M161X70

Fire-resistant FTG18M16 flexible cable designed for maximum safety in case of fire. Ideal for electrical systems in critical environments. With LS0H sheathing and fire resistance up to 120 minutes at 820°C, it is perfect for emergency and safe power systems, with the following features:

  • Section: 1x70 sq mm

  • Conductor diameter: 10.5 mm

  • Insulation thickness: 1.4 mm

  • Sheath thickness: 1.6 mm

  • Outer diameter: 19.2 mm

  • Electrical resistance: 0.272 ohm/km

  • Current carrying capacity: 222A in pipe, 268A in free air

  • Rated voltage: 0.6/1 kV

The selling price is per meter.

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option has an additional cost, which will be communicated upon completion of the order according to specific requirements.
Do you have questions about this product or did you not find what you were looking for? Ask us!
Flexible power cable FTG18M16 1x70 sq. mm 0.6/1 kV blue
€13.48
€13.48

€13.48
Tax included
Items Available: 498
Further availability of the manufacturer
€13.48

Buy it within and receive it from Tuesday, 18 March
Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

FTG18M16 cable: safety, versatility and high performance

Maximum safety in case of fire

The FTG18M16 cable is designed to maintain power in emergency conditions. It complies with IEC 20-67 standards, providing fire resistance for up to 120 minutes at 820°C, making it ideal for emergency lights, fire extinguishing systems and safety devices.

Versatile for indoor and outdoor installations

Suitable for fixed installation indoors and outdoors, even in wet conditions, it can be installed on masonry, metal structures, catwalks and conduits, as well as buried without additional protection.

High electrical performance

With its low electrical resistance (0.272 ohm/km) and high current carrying capacity, this cable ensures reliability and safety in the most demanding electrical distribution systems.

Technical Specifications Cable FTG18M16

FeatureValue
Conductor Flexible annealed red copper cord, class 5
Tape Glass/mica helically wound
Insulator Rubber compound, G18 quality
Filler Compound of nonhygroscopic material
Outer sheath LS0H compound, M16 quality
Sheath color Blue
Fire resistance 120 minutes at 820°C
Rated voltage Uo/U 0.6/1 kV
Maximum operating temperature 90°C
Minimum operating temperature -15°C
Minimum laying temperature -5°C
Maximum short-circuit temperature 250°C
Maximum tensile stress 50 N/mm²
Minimum bending radius 14 times maximum outer diameter
Conductor diameter 10.5 mm
Insulation thickness 1.4 mm
Sheath thickness 1.6 mm
Outer diameter 19.2 mm
Electrical resistance 0.272 ohm/km
Current flow rate in tube in air 222A
Current flow rate in free air 268A

There are no reviews

Data sheet

Colour:
Blue
Type:
FTG18M16
Cross-Section:
70mmq
With yellow/green:
No
Number of cables:
1
