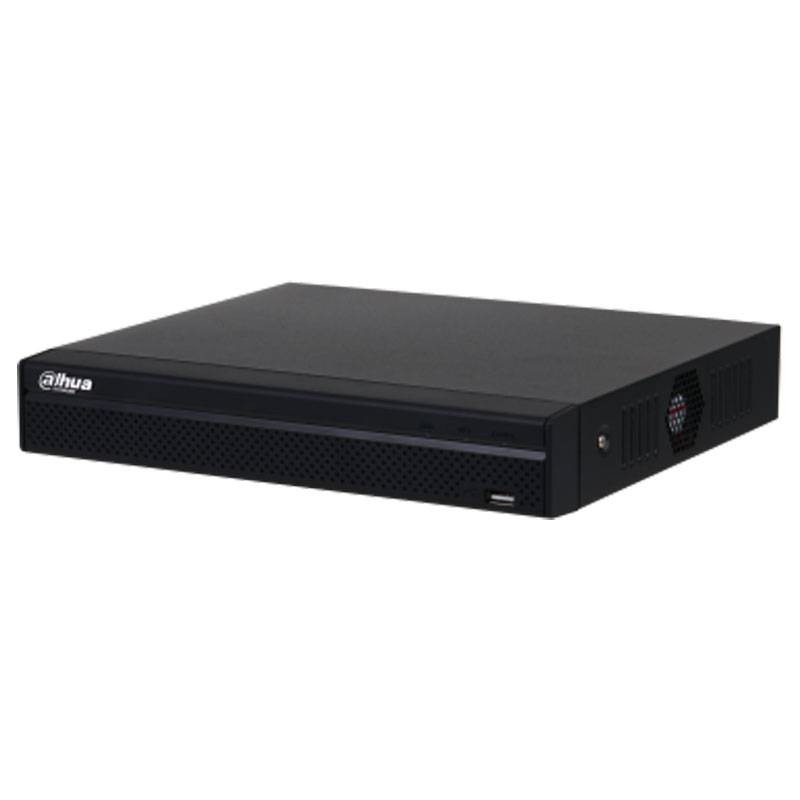

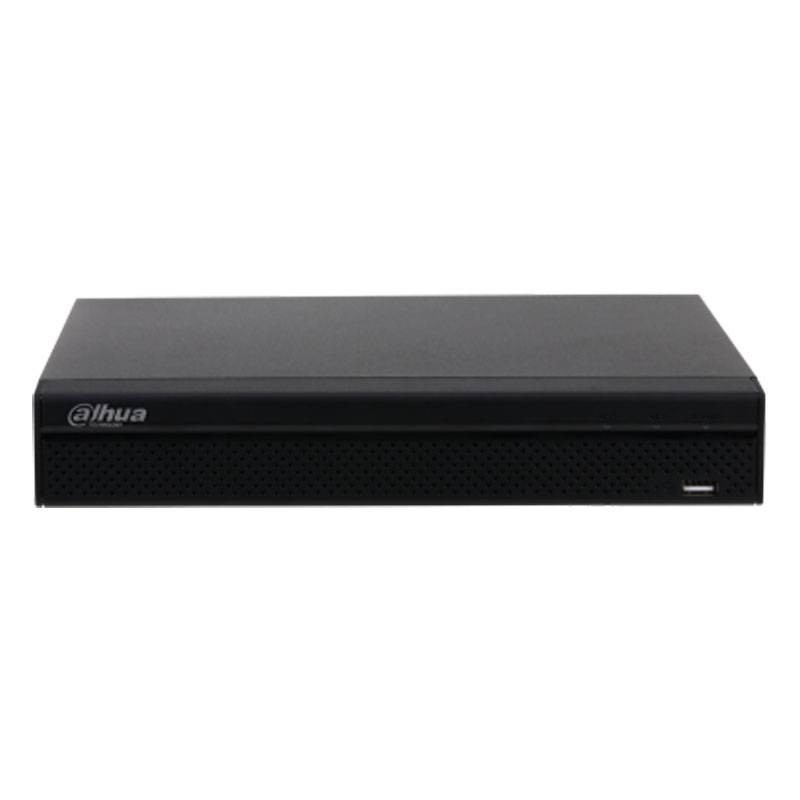

Dahua 8-channel NVR Video Recorder Poe 4K 1HDD Lite M-0032582

Brand: Dahua

Code: DAH M-0032582 EAN: 6923172573827

Dahua NVR video recorder NVR4108HS-8P-4KS3 8-channel Poe 4K 1HDD Lite:

Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats
Maximum decoding capacity: 8 × 1080p@30 fps
Maximum. Input/recording/output bandwidth 160/160/80 Mbps
Supports IP cameras with a resolution of up to 12 MP
AI by Recorder supports 4-channel SMD Plus
AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis, and heat map
Supports EPTZ and one-click activation and deactivation

€252.80

€252.80
Tax included

Items Available: 10

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

System:

AI:

AI via camera Facial recognition; facial recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map.

Perimeterprotection: Artificial intelligence perimeter performance per camera (number of channels) 6 channels.

Facial recognition:

Face attributes Gender; age group; glasses; expressions; mask; beard
Face detection performance of artificial intelligence per camera (number of channels) 6 channels

SMD Plus:

SMD Plus of 4-channel Recorder: secondary filtering for people and motor vehicles, reducing false alarms caused by leaves, rain and changes in lighting conditions
SMD Plus for 6-channel camera

Audio and video:

Access 8-channel
Network bandwidth AI disabled: 160 Mbps input, 160 Mbps recording and 80 Mbps output AI enabled: 80 Mbps input, 80 Mbps recording and 60 Mbps output
Resolution 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF
Decoding capabilities AI disabled: 1 channel 12 MP at 30 fps; 2 channels 8 MP at 30 fps; 3 channels 5 MP at 30 fps; 4 channels 4 MP@30 fps; AI enabled 8 channels 1080p at 30 fps: 1 channel 12 MP at 30 fps; 1 channel 8 MP at 30 fps; 2 channels 5 MP at 30 fps; 3 channels 4 MP at 30 fps; 7 channels 1080p@30 fps
Video output 1 HDMI, 1 VGA Simultaneous: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous: HDMI: 1920 × 1080, 1280 × 1 024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen display Main screen: 1/4/8/9 Sub screen: 1/4/8/9
Third-party camera access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

Compression standard:

Network:

HTTP Network Protocol; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filtering; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Recording; IP Search (supports IP camera, DVR, NVS, etc.).
iOS cell phone access; Android
ONVIF 22.12(Profile T; Profile S; Profile G) interoperability; CGI; SDK
Chrome browser; IOC; Safari; Edge; Firefox

Recording Playback:

Multi-channel playback Up to 8 channels
Recording modes General; motion detection; intelligent; alarm
Backup method USB device and network
Playback mode Instant playback, general playback, event playback, tag playback, intelligent playback

Alarm:

General alarm Motion detection; privacy masking; video loss; scene change; PIR alarm; External IPC alarm
Anomaly Alarm Camera disconnection; storage error; disk full; IP Conflict; MAC Conflict; blocked access; and cyber security related exception
Intelligent alarm Facial recognition; facial recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Alarm connection Documentation; snapshot; IPC external alarm output; Audio; buzzer; tree trunk; preset; e-mail

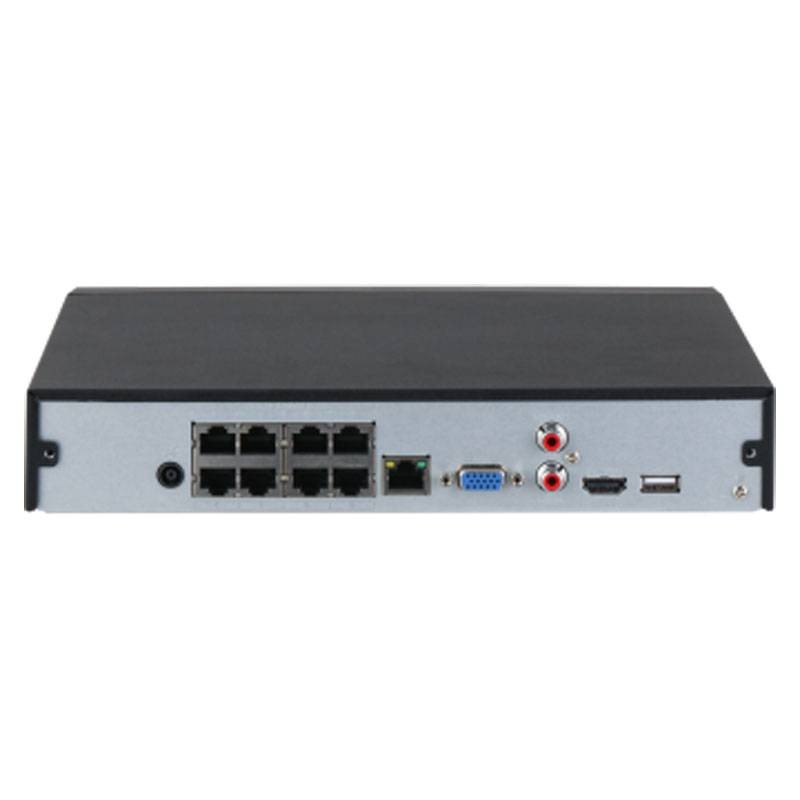

Port:

1-channel RCA audio input
1-channel RCA audio output
NA alarm input (2 channels are optional)
NA alarm output (1-channel 12 V 1 A output is optional)
Disk interface 1 SATA port. Each disk can hold up to 20 TB. This limit varies depending on the ambient temperature
USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI 1
VGA1
Network port 1 (10/100/1000Mbps Ethernet port, RJ-45)
PoE port 8 ports, 10/100 Mbps, IEEE 802.3 af/at

General:

Power supply 53 V DC, 1.81 A
Power consumption Total output of NVR is <10 W (without HDD) Total output power of PoE is 72 W, maximum output power of a single port is 25.5 W
Net weight 0.92 kg (2.03 lbs.)
Gross weight 2.05 kg (4.52 lb)
Product dimensions 260.0 mm × 232.5 mm × 47.6 mm (10.24" × 9.15" × 1.87") (W × D × H)
Packaging dimensions 374 mm × 119 mm × 311 mm (14.72" × 4.69" × 12.24") (W × D × H)
Operating temperature 10 °C to +55 °C (14 °F to +131 °F)
Storage temperature 20 °C to +60 °C (4 °F to +140 °F)
Operating humidity 10%93% (RH), non-condensing
Rack or desktop installation
Certifications CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
