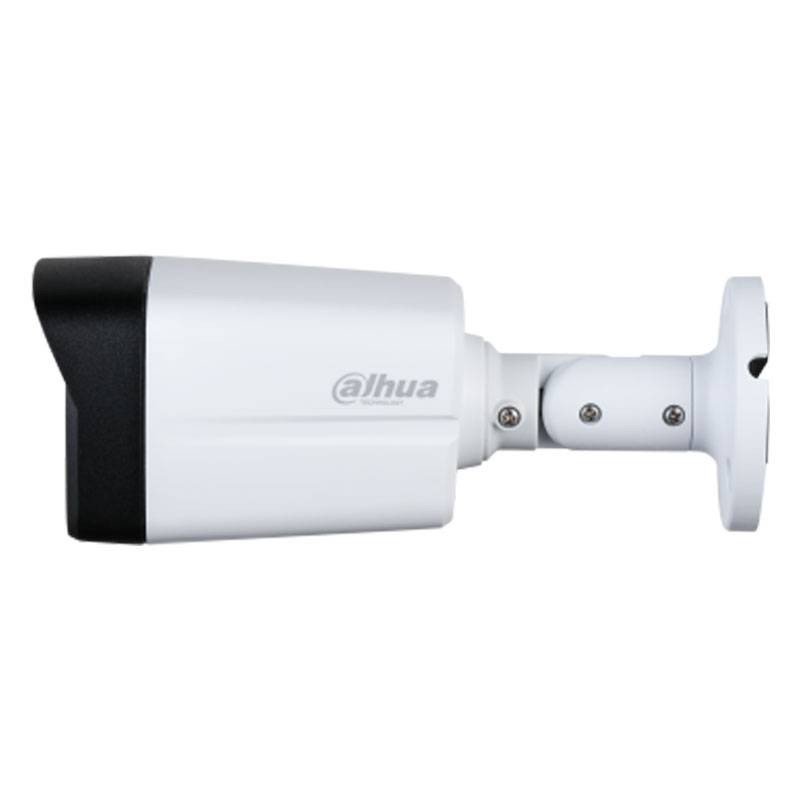

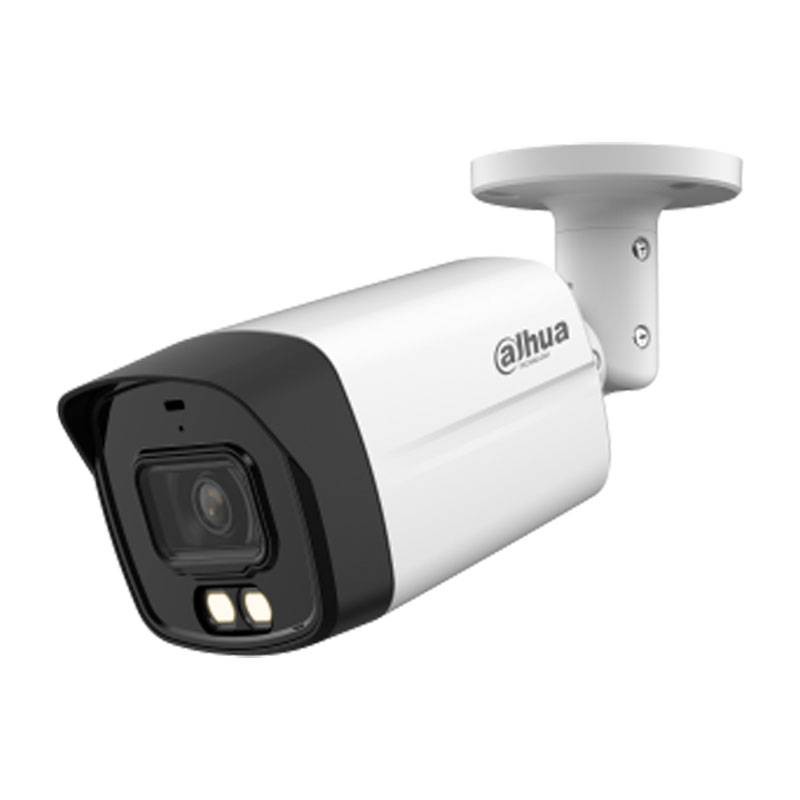

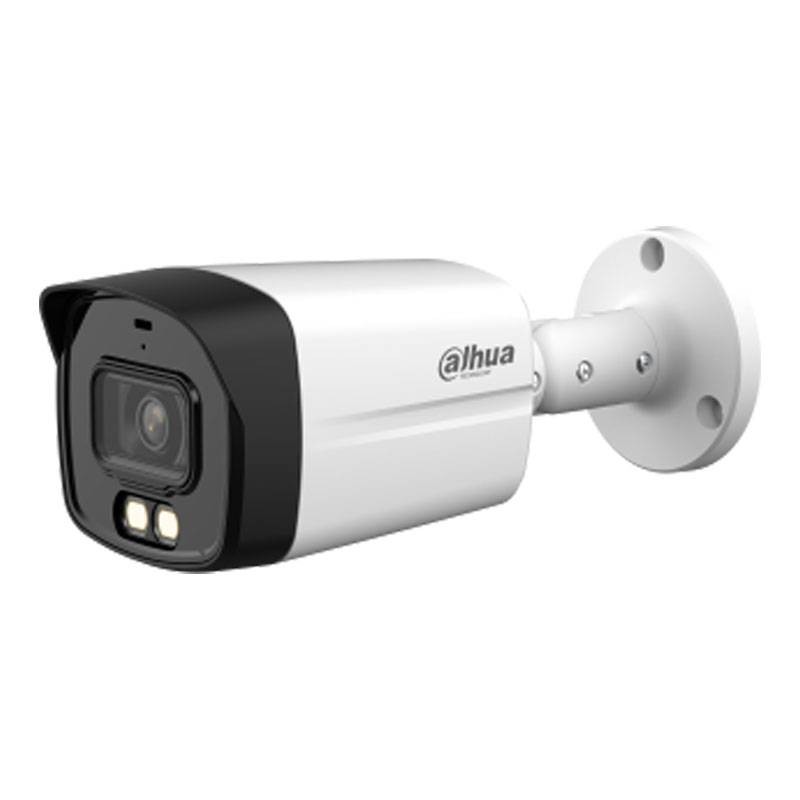

Dahua Dual Light HDCVI 5MP optical 3.6mm bullet camera M-0031516
DAH M-0031516
6923172590565
Dahua Smart Dual Light bullet camera HAC-HFW1500TLM-IL-A-S2:
- Max 25 fps@5MP (16:9 video output)
- Smart dual light
- Illumination distance 40m
- Super adaptive
- Built-in microphone
- 3.6mm fixed lens
- CVI/CVBS/AHD/TVI switchable
- IP67 degree of protection
- 12 VDC power supply
Dahua Dual Light HDCVI 5MP optical 3.6mm bullet camera M-0031516
€51.27
€51.27
Tax included
Tax included
Items Available: 3
: 2
Frequently bought together
Camera:
- 5MP CMOS image sensor
- Maximum Resolution 2880(O) × 1620(V)
- Progressive Scanning System
- Electronic Shutter Speed PAL: 1/25 s1/100,000 s - NTSC: 1/30 s1/100,000 s
- Minimum Illumination 0.05 lux@F1.6 (color, 30 IRE) - 0.005 lux@F1.6 (black and white, 30 IRE) - 0 lux (illuminator on)
- S/N ratio >65dB
- IR illumination distance: 40 m (131.23 ft.) - Warm light: 40 m (131.23 ft.)
- Illuminator on/off control Automatic/manual
- Number of illuminator 2 (warm light);2 (IR light)
- Angle adjustment Overview: 0°360° - Tilt: 0°90° - Rotation: 0°360°
Lens:
- Lens type Fixed focal length
- M12 lens mount
- Focal length 3.6 mm
- Maximum Aperture F1.6
- Field of view 3.6 mm: A: 92°; V: 48°; D: 109°
- Iris control Fixed
- Close focusing distance 3.6 mm: 1.3 m (4.27 feet)
Video:
- CVI video frame rate: PAL: 5M@25 fps; 4M at 25 fps; 1080p@25 fps; - NTSC: 5M at 25 fps; 4M at 30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; - NTSC: 4M at 30 fps - TVI: PAL: 4M at 25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H
- Resolution 5M (2880×1620); 4M (2560×1440); 1080p (1920×1080); 960H (960 × 576/960 × 480)
- Day Night Auto(ICR)/Color/B&W
- BLC BLC; HLC; DWDR
- WDR DWDR
- White balance Auto; Area white balance
- Get control Auto/manual
- 2D Noise Reduction N
- Intelligent IR&WL lighting mode; WL mode; IR mode
- Mirror YES
- Privacy masking Off/On (8 areas, rectangle)
Port:
- Video output Video output choices of CVI/TVI/AHD/CVBS via one BNC port
- Audio input One-channel built-in microphone
Power:
- 12 VDC ± 30% power supply
- Power Consumption Max 4.5 W (12 VDC, WLED on)
Environment:
- Operating temperature 40 °C to +60 °C (40 °F to +140 °F)
- Operating humidity <95% (RH), non-condensing
- Storage temperature 40 °C to +60 °C (40 °F to +140 °F)
- Storage humidity <95% (RH), non-condensing
- Protection IP67
Structure:
- Enclosure material Metal front cover + plastic back barrel + metal bracket
- Product dimensions 198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.16" × 3")
- Net weight 0.3 kg (0.66 lb).
There are no reviews
Data sheet
- Type:
- Bullet cameras
- Degree of protection:
- IP67
- System:
- IP
- Optical:
- 3.6 mm
- Resolution:
- 5MP
