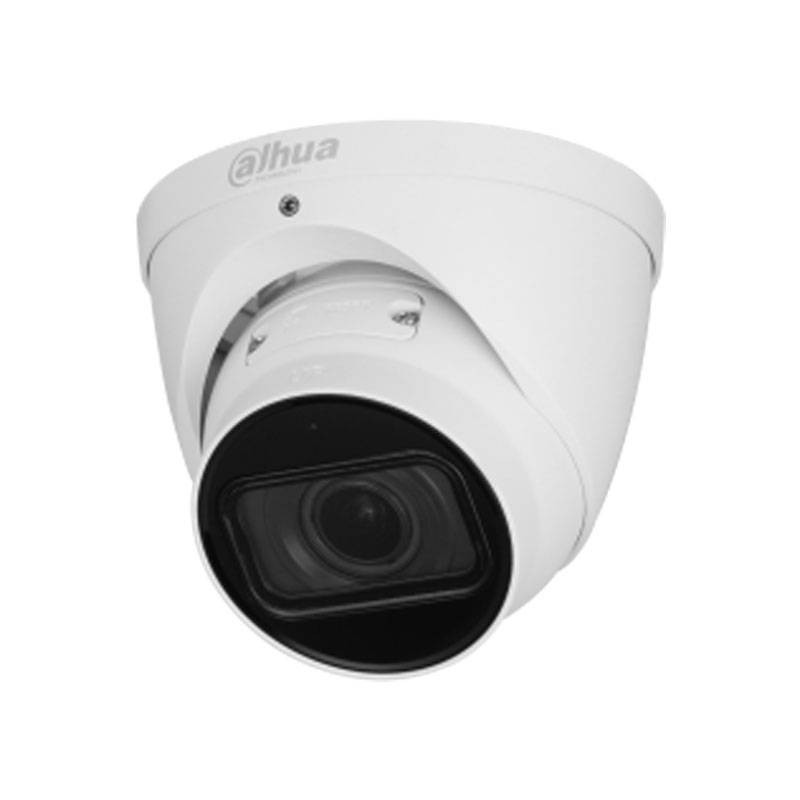

Dahua IPC-HDW3441T-ZS-S2 IP 4MP 2.7-13.5mm Dome Camera M-0020538

Brand: Dahua

Code: DAH M-0020538 EAN: 6923172542397

Dahua IPC-HDW3441T-ZS-S2 Eyeball WizSense Vari-focal IR Dome Camera:

IP System
4 MP 1/2.9" CMOS resolution, excellent low luminance performance and high image definition
Motorized Vari-Focal lens from 2.7 mm to 13.5 mm
H.265 codec, high compression rate, ultra-low bit rate
Integrated IR LED, max. IR distance: 40 m
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible encoding, applicable to various bandwidths and archives
Max. 256G Micro SD card
Built-in microphone
12 VDC/PoE power supply simplifies installation

Compatible accessories, to be purchased separately part numbers: M-0002490 - M-0014591.

€225.55

€225.55
Tax included

Items Available: 5

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

DAH M-0002490

€11.75

DAH M-0014591

€4.23

Camera:

1/2.9" CMOS image sensor
Maximum resolution 2688 (height) × 1520 (verso)
rom 128 MB
RAM memory 512 MB
Scanning System Progressive
Electronic shutter speed Automatic/Manual 1/3 s1/100,000 s
Minimum illumination 0.005 lux@F1.5 (Color, 30 IRE) - 0.0005 lux@F1.5 (B/W, 30 IRE) - 0 lux (Illuminator on)
Signal-to-noise ratio > 56 dB
Illumination distance Up to 40 m (131.23 ft)
Illuminator on/off control Automatic/Manual
Number of illuminator 2 (infrared LED)
Angle adjustment Overview: 0°360°; Tilt: 0°78°; Rotation: 0°360°

Lens:

Intelligence:

IVS (Perimeter Protection) Tripwire, intrusion (supports accurate classification and detection of vehicles and people)
AISSA YES
Quick Choice With AI NVR, quickly identify human/vehicle targets that users are interested in from SMD events
Smart Search Collaborates with Smart NVR to perform refined smart search, event extraction, and event video merging

Video:

H.265 video compression; H.264; H.264H; H.264B; MJPEG (supported by secondary stream only)
H.265+ intelligent H.264+ intelligent codec
AI encoding AI H.265 AI H.264
Video frame rate Main stream: 2688 × 1520 @ (125/30) fps - Secondary stream 1: 704 × 576 @ (125 fps)/704 × 480 @ (130 fps) - Secondary stream 2: 1920 × 1080 @ (125/30 fps) *The above values are the maximum frame rates of each stream; for multiple streams, the values will be subject to the total encoding capacity
Stream capacity 3 streams
Resolution 4M (2688x1520); 3.6 million (2560 x 1440); 3M (2048x1536); 3M (2304×1296); 1080p (1920 x 1080); 1.3 million (1280 x 960); 720p (1280 x 720); D1 (704×576/704×480); CIF (352 x 288/352 x 240); VGA (640 x 480)
CBR/VBR bit rate control
H.264 video bit rate: 3 kbps to 8192 kbps - H.265: 3 kbps to 8192 kbps
Day Night Auto (ICR)/Color/B&W
BLC YES
HLC YES
WDR 120 dB
Auto scene adjustment (ASSA) YES
White balance Auto; natural; streetlight; outdoor; manual; regional custom
Get Auto control
3D noise reduction N
Motion detection OFF/ON (4 areas, rectangular)
Image stabilization Electronic image stabilization (EIS)
Region of interest (RoI) Yes (4 areas)
De-fogging YES
AFSA YES
Image rotation 0°/90°/180°/270° (supports 90°/270° with resolution 2688 × 1520 and below)
Mirror YES
Privacy masking 4 areas

Audio:

Alarm:

Event alarm: No SD card; SD card full; SD card error; service life warning (supported by Dahua card only); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene change; audio detection; voltage detection; blur detection; SMD; security exception

Network:

RJ-45 network port (Base-T 10/100)
SDK and API YES
Network protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Cybersecurity Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account locking; Security logs; IP/MAC filtering; X.509 certification generation and import; syslog; HTTPS; 802.1x; Trusted startup; Trusted execution; Trusted update
ONVIF interoperability (S Profile/G Profile/T Profile); CGI
User/Host 20 (total bandwidth: 64 M)
FTP storage; SFTP; Micro SD card (max. support 256 G); NAS
IE browser: IE11 - Chrome - Firefox
Management software SmartPSS Lite, DSS, DMSS
Mobile client iOS; Android

Certifications:

General:

12 VDC/PoE (802.3af) power supply.
Power Consumption Base: 4.0 W (12 VDC); 5.2 W (PoE) - Max. (WDR + IR intensity + intelligence): 7.1 W (12 VDC); 8.5 W (PoE)
Operating temperature 30 °C to +60 °C (22 °F to 140 °F) /Under 95% relative humidity
Storage temperature 40 °C to +60 °C (40 °F to 140 °F)
Protection IP67
Coating Metal
Product dimensions 108.3 mm × ?122 mm (4.26" × ?.4.8")
Net weight 715 g (1.58 lb)
Gross weight 915 g (2.02 lbs)
