Dahua WizSense IP 4MP bullet camera 2.7-13mm lens M-0029515
DAH M-0029515
6923172548542

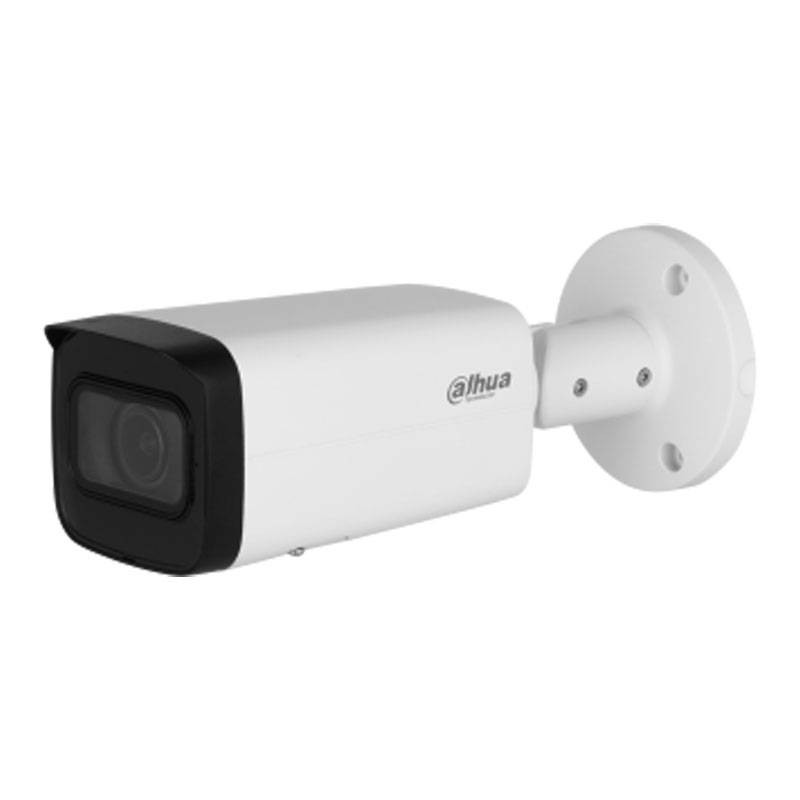

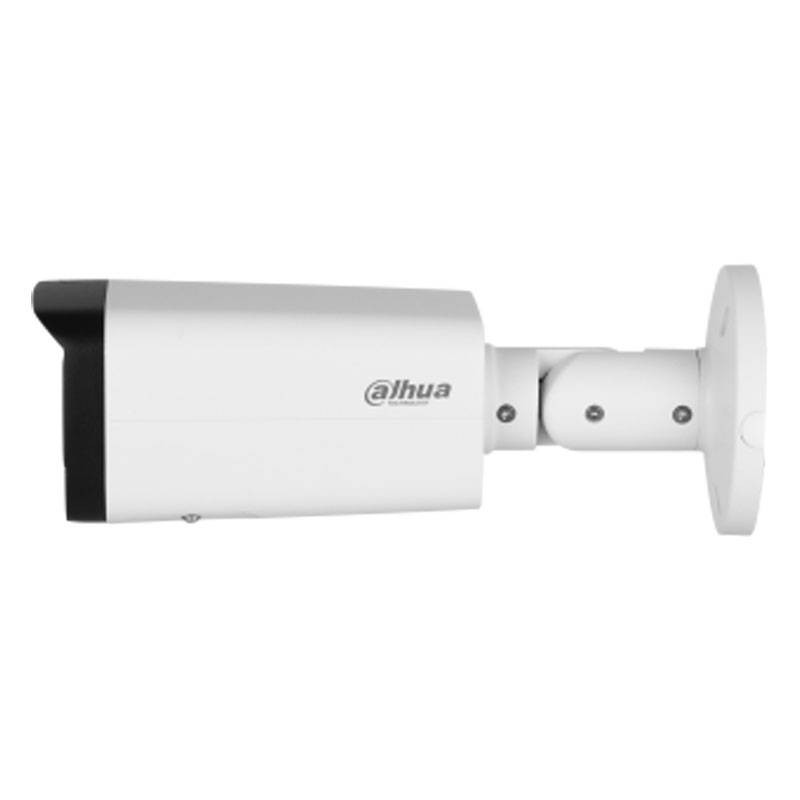

Dahua WizSense IPC-HFW2441T-ZS Bullet Camera:
- IP System
- 4MP Resolution (2688 × 1520)
- Motorized varifocal lens 2.7-13mm
- 4 MP 1/2.9" CMOS image sensor, low luminance and high definition image
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, and max. illumination distance is 60 m
- ROI, SMART H.264+/H.265+, flexible encoding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermark, applicable to various monitoring scenes
- Intelligent monitoring: intrusion, tripwire (the two functions support accurate classification and detection of vehicles and people)
- Anomaly detection: motion detection, video tampering, audio detection, no SD card, full SD card, SD card error, network disconnection, IP conflict, illegal access and voltage detection
- Alarm: 1 input, 1 output (only - supports ZAS); audio: 1 input, 1 output (only - supports ZAS); supports maximum 256 GB microSD card; built-in microphone
- 12 VDC/PoE power supply, easy to install
- IP67 protection, IK10 (optional)
- SMD Plus
€184.31
€184.31
Tax included
Tax included
Items Available: 28
: 5
Frequently bought together
Camera:
- 1/2.9 inch CMOS image sensor
- Maximum Resolution 2688 (O) × 1520 (V)
- rom 128 MB
- RAM 128 MB
- Scanning System Progressive
- Electronic Shutter Speed Auto/Manual 1/3 s1/100,000 s
- Minimum Illumination 0.006 lux@F1.5 (color, 30 IRE) - 0.0006 lux@F1.5 (black and white, 30 IRE) - 0 lux (Illuminator on)
- S/N ratio > 56dB
- Illumination distance Up to 60 m (196.85 ft) (IR LED)
- Illuminator on/off control Auto; Manual
- Number of illuminator 4 (IR LED)
- Range of pan/tilt/rotation Pan: 0°360° - Tilt: 0°90° - Rotation: 0°360°
Lens type:
- Motorized varifocal
- Lens mount ?14
- Focal length 2.7 mm13.5 mm
- Maximum Aperture F1.5
- Field of view O: 104°29°; - V: 54°16°; - D: 125°34°
- Iris control Fixed
- Close focusing distance 0.8 m (2.62 ft.)
Intelligence:
- IVS (Perimeter Protection)
- Intrusion, tripwire (the two functions support accurate classification and detection of vehicles and people)
- Smart Search Collaborates with Smart NVR to refine smart search, event extraction and merging to event videos
Video:
- H.265; H.264; H.264H; H.264B; MJPEG video compression (supported by secondary stream only)
- Intelligent Codec Intelligent H.265+; Intelligent H.264+
- Video frame rate Main stream: 2688 × 1520@(120 fps)/2560 × 1440@(1-25/30 fps) - Secondary stream: 704 × 576@(125 fps)/704 × 480@(130 fps) *The above values are the maximum. frame rates of each stream; for multiple streams, the values will be subject to the total encoding capacity
- Stream capacity 2 streams
- Resolution 2688×1520 (2688×1520); 2560×1440 (2560×1440); 2304×1296 (2304×1296); 1080p (1920×1080); 1.3 million (1280 × 960); 720p (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352×288/352×240)
- CBR/VBR bit rate control
- H.264 video bitrate: 32 kbps6144 kbps; - H.265: 12 kbps6144 kbps
- Day Night Auto(ICR)/Color/B&W
- BLC YES
- HLC YES
- WDR 120dB
- White balance Auto;natural;streetlight;outdoor;Manual;regional custom
- Get control Manual;Automatic
- 3D Noise Reduction N
- Motion detection OFF/ON (4 areas, rectangular)
- Region of interest (RoI) Yes (4 areas)
- Intelligent illumination YES
- Image rotation 0°/90°/180°/270° (Support 90°/270° with resolution 2688 × 1520 and below)
- Mirror YES
- Privacy masking 4 areas
Audio:
- Built-in microphone YES
- Audio compression G.711a; G.711Mu; G.726; PCM
Alarm:
- Alarm event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; blur detection; external alarm (only - supports ZAS); SMD; security exception
Network:
- RJ-45 network port (10/100 Base T)
- SDK and API YES
- Network protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
- ONVIF interoperability (S Profile/G Profile/T Profile); CGI
- User/Ospite 6 (total bandwidth: 36 M)
- FTP storage; SFTP; Micro SD card (supports max. 256 GB)
- Browser That is Chrome Firefox
- Management software SmartPSS Lite; DSS; DMSS
- Mobile client iOS; Android
- Cybersecurity Video encryption; Configuration encryption; Type; WSSE; Account locking; Security logs; IP/MAC filtering; X.509 certification generation and import; System log; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted update
Port:
- Audio input 1 channel (RCA port) (only - supports ZAS)
- Audio output 1 channel (RCA port) (only - supports ZAS)
- Alarm input 1 channel in: 5 mA 3 V5 V DC (only - supports ZAS)
- Alarm output 1 channel in: 300 mA 12 V DC (only - supports ZAS)
Power supply:
- 12 V DC/PoE (802.3af)
- Power consumption -ZS: Base: 2.4 W (12 V DC); 3.1 W (PoE) max. (H.265+active intelligence +WDR +IR active): 8.7 W (12 V DC); 10.1 W (PoE) -ZAS: Base: 2.4 W (12 V DC); 3.1 W (PoE) max. (H.265+active intelligence +WDR +IR active): 8.8 W (12 V DC); 10.2 W (PoE)
Environment:
- Operating temperature 30 °C to +60 °C (22 °F to +140 °F)
- Operating humidity ?95%
- Storage temperature 40 °C to +60 °C (40 °F to +140 °F)
- Protection IP67, IK10 (optional)
Structure:
- Enclosure Material Metal
- Product dimensions 238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H)
There are no reviews
Data sheet
- Type: Bullet cameras
- Degree of protection: IP67
- System: IP
- Optical: 2.7-13mm
- Resolution: 4MP (2K)
