Dahua WizSense IP 4MP optical 2.8mm dome camera M-0029492

Brand: Dahua

Code: DAH M-0029492 EAN: 6923172539878

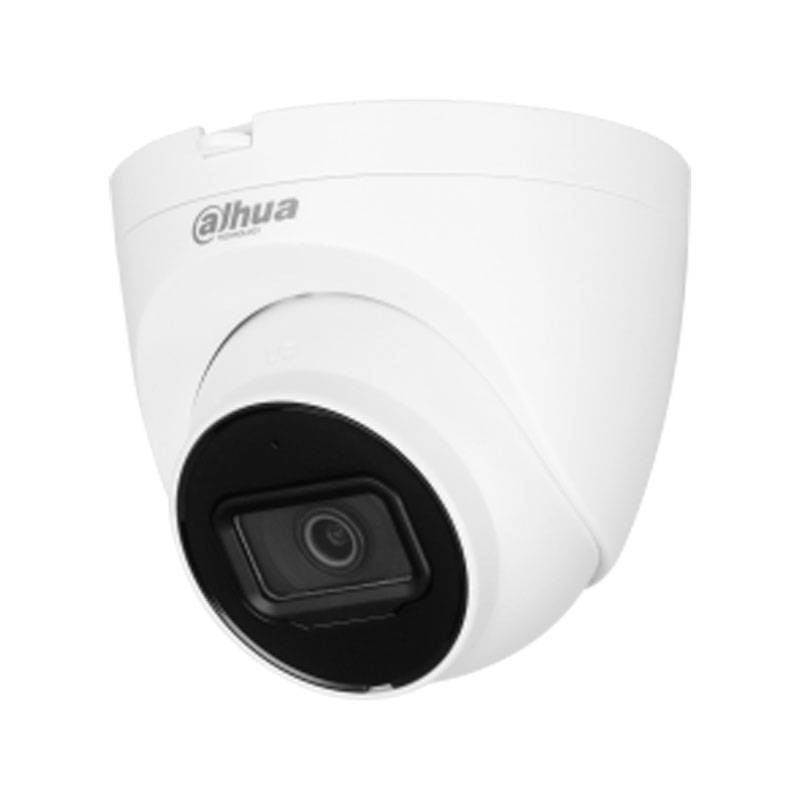

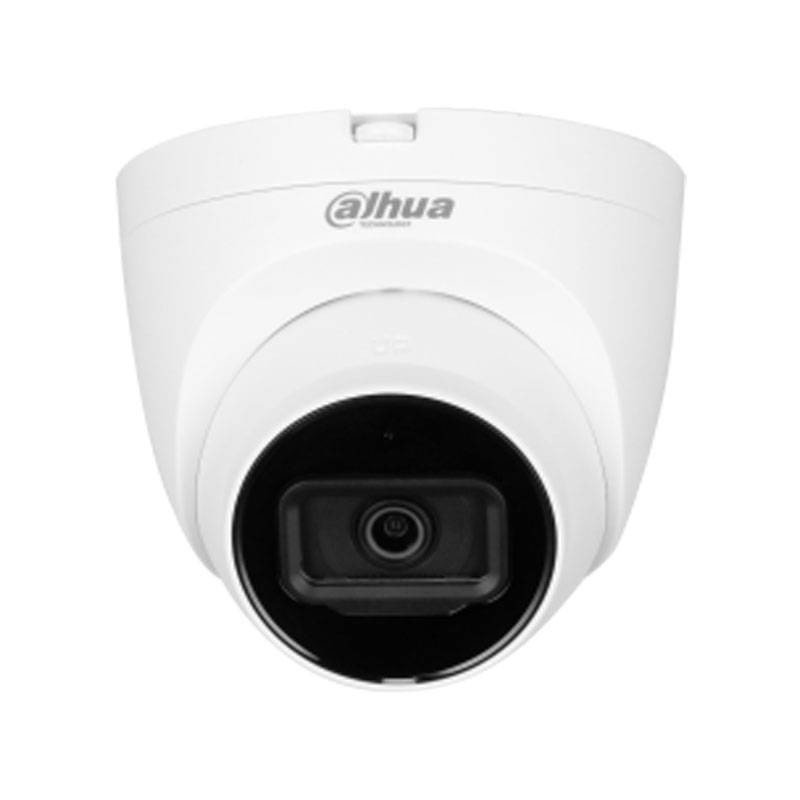

Dahua WizSense IPC-HDW2441T-S Dome Camera:

IP System
4MP Resolution (2688 × 1520)
2.8mm lens: H: 95°; V: 52°; D: 114°
Built-in IR LED and max. illumination distance is 30m
ROI, SMART H.264 +/H.265+, flexible encoding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermark, applicable to various monitoring scenes
Intelligent monitoring: intrusion, tripwire (the two functions support accurate classification and detection of vehicles and people)
Supports max. 256GB microSD card; built-in microphone
12 VDC/PoE power supply
IP67 protection
SMD Plus

€100.24

€100.24
Tax included

Items Available: 10

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

DAH M-0002490

€11.75

Camera:

1/2.9 inch CMOS image sensor
Maximum Resolution 2688(O) × 1520(V)
rom 128MB
128MB RAM
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s1/100,000 s
Minimum Illumination 0.006 lux@F1.6 (color, 30IRE) - 0.0006 lux@F1.6 (black and white, 30 IRE) - 0 lux (Illuminator on)
S/N ratio >56dB
Illumination distance 30 m (98.43 ft) (IR LED)
Illuminator on/off control Auto; Manual
Number of illuminator 1 (IR LED)
Pan/tilt/rotation range Pan: 0°360° - Tilt: 0°78° - Rotation: 0°360°

Optics:

Intelligence:

IVS (Perimeter Protection)
Intrusion, tripwire (the two functions support accurate classification and detection of vehicles and people)
Smart Search Collaborates with Smart NVR to refine smart search, event extraction and merging to event videos

Video:

H.264H; H.265; H.264; H.264B; MJPEG video compression (supported by secondary stream only)
Intelligent Codec Intelligent H.265+; Intelligent H.264+
Video frame rate Main stream: 2688 × 1520@ (120 fps)/2560 × 1440@(125/30 fps) - Secondary stream: 704 × 576@ (125 fps)/704 × 480@ (130 fps) *The above values are the maximum. frame rates of each stream; for multiple streams, the values will be subject to the total encoding capacity
Stream capacity 2 streams
Resolution 4M (2688×1520); 4M (2560×1440); 3M (2304×1296); 1080p (1920×1080); 1.3 million (1280 × 960); 720p (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352×288/352×240)
CBR/VBR bit rate control
Video bitrate H.264: 32 kbps6144 kbps H.265: 12 kbps6144 kbps
Day Night Automatic (ICR)/Color/B&W
BLC YES
HLC YES
WDR 120dB
White balance Auto; natural; streetlight; outdoor; Manual; regional custom
Get control Auto; Manual
3D Noise Reduction N
Motion detection OFF/ON (4 areas, rectangular)
Region of interest (RoI) Yes (4 areas)
Image rotation 0°/90°/180°/270° (Support 90°/270° with resolution 2688 × 1520 and below)
Mirror yes
Privacy masking 4 areas

Network:

RJ-45 network port (10/100 Base T)
SDK and API YES
Network protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
ONVIF interoperability (S Profile/G Profile/T Profile); CGI
User/Ospite 6 (total bandwidth: 36 M)
FTP storage; SFTP; Micro SD card (supports max. 256 GB)
CIOÈ navigator; Chrome; Firefox
DSS management software; DMSS
Mobile client iOS; Android
Cybersecurity Configuration encryption;Trusted execution;Digest;Security log;WSSE;Account locking;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted update;Trusted boot;Generation and import of X.509 certification

Power supply:

12 VDC/PoE (802.3af) power supply.
Power Consumption Base: 2.5 W (12V DC); 3.3 W (PoE); - Maximum. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 V DC); 5.1 W (PoE)

Environment:
