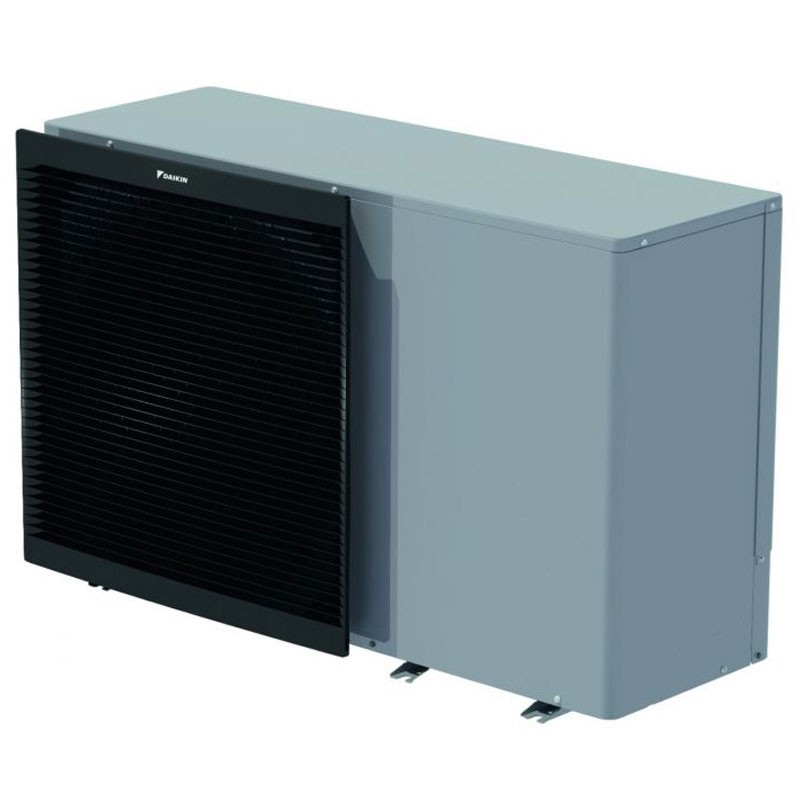

Daikin Altherma Air-water heat pump 3M 14kW Monobloc R32 EBLA14DW1
DAK EBLA14DW1
4548848858361
Daikin Altherma 3M series Bluevolution 14 kW Monoblock air-water heat pump outdoor unit, Three-phase, ideal for indoor spaces with limited space.
- Complete with all system components, ready for hydraulic connection.
- For heating, cooling and domestic hot water production, without the need for additional components
- Guaranteed flow temperature of 60°C down to -7°C outside
- Guaranteed capacity down to -20°C and heat pump-only operation down to -25°C
- Bluevolution technology with low GWP refrigerant: R32
- Power 14 kW three-phase power supply
- Perfect for both new homes and replacement boilers
- Electric back-up heater (BUH) not included
- Minimal installation space and state-of-the-art aesthetics
- Plug&Play unit: requires only the hydraulic connection
- Possibility of connection to polypropylene or steel storage tank for DHW production
- Innovative control panel included, based on MMI, to facilitate commissioning, operation and maintenance
- Smart grid function for maximum integration with the photovoltaic system. Easy implementation on the unit
- Space heating energy class A++/A++.
Accessories available to purchase separately:
- Frost protection valve AFVALVE1
- In-line magnetic brass defogger IT.DEFANG-OT
- HybridCube 300 liter energy storage tank HYC 343/19/0 EKHWP300B
- Switchover unit E-Pac EP LT 3H/X (for HYC 300 l, HPSU heating and cooling) EKEPRHLT3HX
- Bypass valve DN 20 with angle connection UESV 20 140111
- Daikin LAN Control Accessory for ALTHERMA Series BRP069A62 Monoblocks.
The air conditioner will be delivered pre-charged with gas R32
Daikin Altherma Air-water heat pump 3M 14kW Monobloc R32 EBLA14DW1
€6,200.88
€6,200.88
Tax included
Tax included
Items Available: 2
: 1
Frequently bought together
Daikin heat pumps rely on the Daikin Altherma 3 range on the market since 2018, residential air-water heat pumps, characterized by:
- low consumption, energy efficiency A++
- eco-sustainable, Bluevolution R-32 technology
- remote control, Smart functionality
- domestic hot water
- combination with solar thermal system
- underfloor heating and cooling
- innovative design and adaptable to any environment
- compact footprint, installable even in tight spaces
How does a heat pump work?
- The operation is characterized by a closed-circuit system with a refrigerant fluid inside (for eco-sustainability issues today we almost always use the refrigerant R-32, also known as fluorine methane or Freon 32) subject to a cyclical change of state, passing from the liquid phase to steam and vice versa; this obviously occurs with an expenditure of electricity, as the heat pump extracts and transfers thermal energy using electricity. According to the laws of technical physics and psychrometry, there will be variations in pressure and temperature and the heat pump exploits these variations that occur at the level of the evaporator and compressor, with an overall result of efficiency or coefficient of performance (COP) very advantageous, even higher than 4-5. It means that for every electric kW spent, as a result you have 4-5 kW of thermal power generated by the system.
Air to air or air to water heat pump? Which to choose?
- Unlike air-to-air pumps, air-to-water heat pumps have a higher initial cost but they also produce domestic hot water, therefore they do not require an extra boiler or traditional system for domestic hot water.
Why choose a Daikin Altherma air-to-water heat pump?
- The outdoor unit extracts energy from the air to provide heating, cooling and hot water. Up to 75% of the energy used comes from the air, with the rest provided by electricity. The air-to-water heat pump relies on a compressor and refrigerant to transfer energy from the air to the water, heating it to meet your needs and use it in your home
Monoblock unit:
- The monoblock unit is an outdoor unit that includes the refrigerant circuit. In this case there is no indoor unit, only a wiring module and an autonomous hot water tank.
Medium temperature heat pump:
- Ideal for applications in new buildings and major renovations, medium-temperature heat pumps are best paired with underfloor heating and heat pump convectors that require a lower temperature to provide equivalent comfort to radiators.
Newly designed paneling:
- A black horizontal front grille conceals the single fan, reducing the perception of sound level produced by the unit.
- Light gray paneling reflects the space in which the unit is installed, allowing it to blend seamlessly into any environment.
A single fan for high capacity units:
- Daikin engineers replaced the double fan with a larger one, optimizing its shape to reduce noise and improve air circulation.
Ideal for small spaces:
- The one-block unit is the ideal solution for those locations with space limitations. No need for an additional indoor unit: the one-block system can be installed in the space under a window to save space outside.
Features:
- Rated Heating Capacity 12.5 kW
- Rated Heating Capacity 3.42 kW
- COP 3,64
- Rated cooling capacity 12.7 kW
- Power input Cooling Nominal 2,51 kW
- EER 5,04
- SEER 5,71
- Space heating Water output with average climate conditions 55°C SCOP 3.42 - Room heating seasonal efficiency class A++
- Space heating: Water outlet with average climatic conditions 35°C SCOP 4,70 Room heating seasonal efficiency class A+++
- Panels Color Silver
- Material Galvanized steel sheet painted with polyester powder

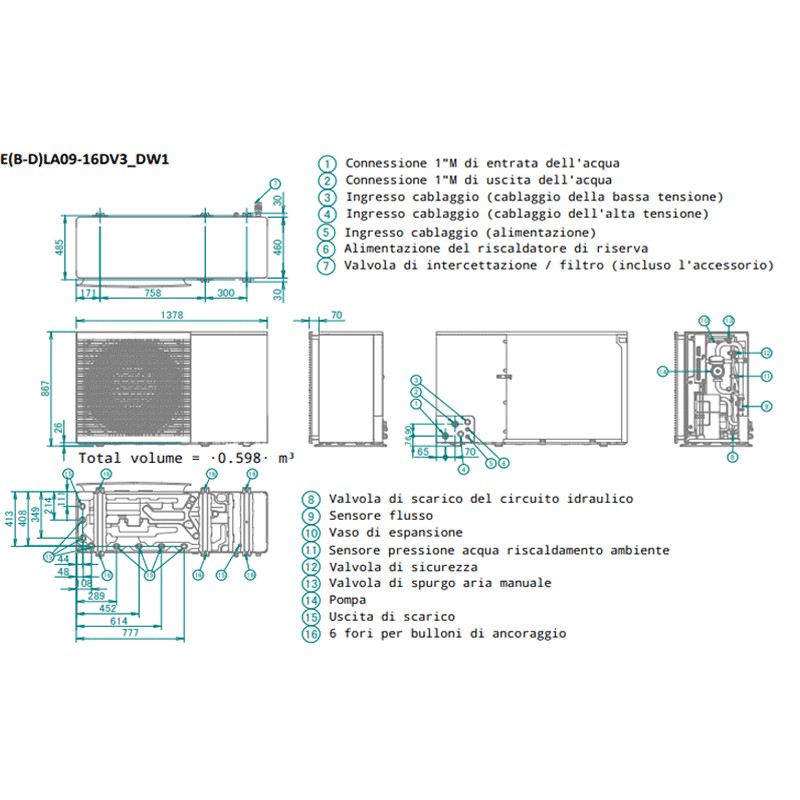

- Unit Dimensions Height x Width x Depth: 870 x 1.380 x 460mm
- Unit Weight Kg DV3/DW1: 147, D3V3/D3W1: 149
- Swing type hermetic compressor
- Heating operating range Outdoor temperature Min.~Max. °CBU DV3/DW1: -25 ~ 25, D3V3/D3W1: -25 ~ 35
- Water side Min.~Max. °C DV3/DW1: 9 ~ 60, D3V3/D3W1: 15 ~ 60
- Cooling operation range: Outdoor temperature Min.~Max. °CBS 10 ~ 43
- Water side Min.~Max. °C 5 ~ 22
- DHW operating range: Outdoor temperature Min.~Max. °CBS -25 ~ 35 - Water side Min.~Max. °C 25 ~ 55
- Refrigerant R32 Charge 3,80 kg - Charge TCO2Eq 2,57 - Control Expansion valve
- Sound Power Level (5) Heating Nom. dBA 62
- Power Supply Name/Phase/Frequency/Voltage Hz/V W1/3~/50/400
- Current Recommended Fuses A 32/16
- Water OUTPUT (screw connection, male, 1")
- Water inlet (screw connection, male, 1")
There are no reviews
Data sheet
- Type: Monoblock units
- Gas: R32
- Thermal power: 14 kW
- Energy class: A+++
