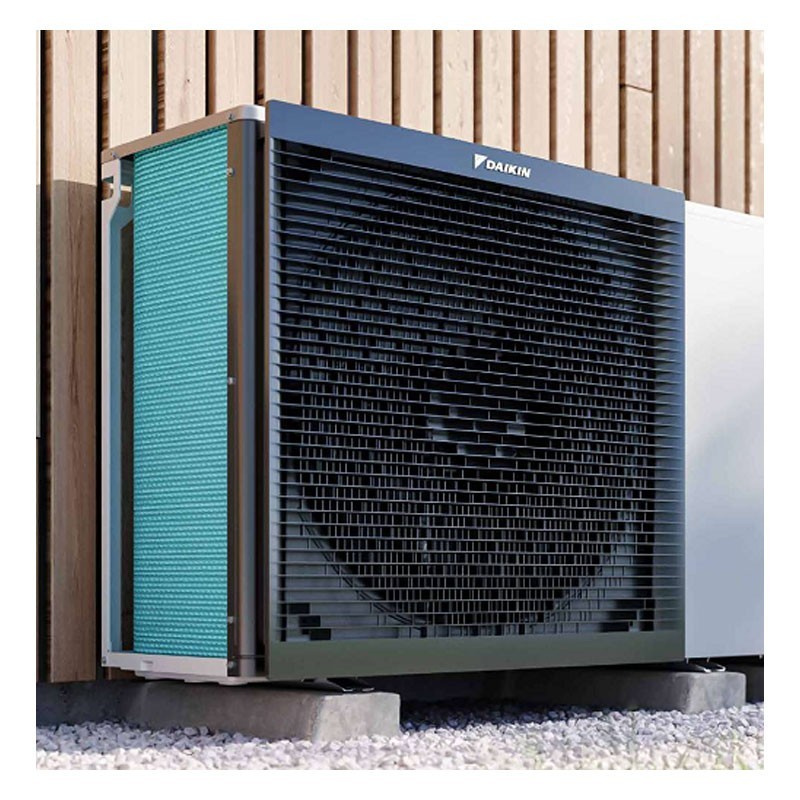

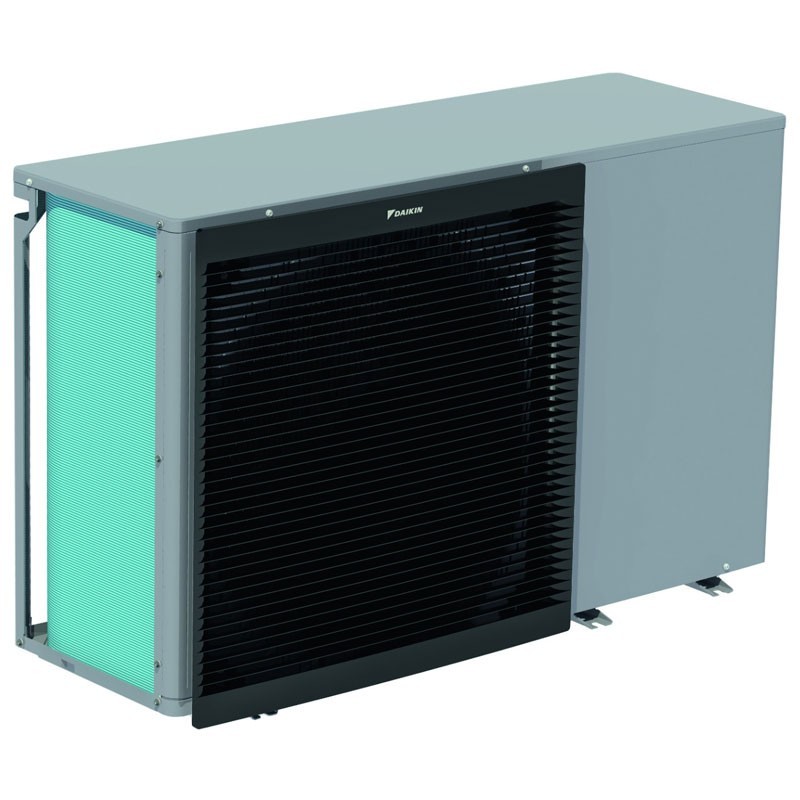

Daikin Altherma 3M 16kW Air Water Heat Pump Monoblock R32 Single Phase

Daikin
DAK EBLA16DV37 4548848858149

Daikin Altherma 3M series Bluevolution 16 kW air-water heat pump outdoor unit Monoblock, Single-phase, ideal for indoor spaces with limited space.



  • Complete with all system components, ready for plumbing connection.
  • For heating, cooling and domestic hot water production, without the need for additional components
  • Guaranteed flow temperature of 60°C down to -7°C outside
  • Guaranteed capacity down to -20°C and heat pump-only operation down to -25°C
  • Bluevolution technology with low-GWP refrigerant: R32
  • Power 9 kW single-phase power supply
  • Perfect for both new homes and replacement boilers
  • Electric back-up heater (BUH) not included
  • Minimum installation space and state-of-the-art aesthetics
  • Plug&Play unit: requires only Plumbing connection
  • Possibility of connection to polypropylene or steel storage tank for DHW production
  • Innovative included MMI-based control panel for easy commissioning, operation and maintenance
  • Smart grid function for maximum integration with PV system. Facilitated implementation on the unit
  • Space heating energy class A+++/A++.





Accessories available to be purchased separately:

  • AFVALVE1 frost protection valve.
  • Brass in-line magnetic defogger IT.DEFANG-OT
  • HybridCube 300-liter energy storage tank HYC 343/19/0 EKHWP300B
  • E-Pac EP LT 3H/X switching unit (for HYC 300 l, HPSU heating and cooling) EKEPRHLT3HX
  • Bypass valve DN 20 with angle connection UESV 20 140111



Daikin LAN Control Accessory for ALTHERMA Series Monoblocks BRP069A62.

  • taga+++v
  • r32
  • taga++v
    • The air conditioner will be delivered pre-charged with gas R32
    Do you have questions about this product or did you not find what you were looking for? Ask us!

    Daikin Altherma 3M 16kW Air Water Heat Pump Monoblock R32 Single Phase

    €5,675.93
    €5,505.65
    €5,505.65

    Daikin Altherma 3M 16kW Air Water Heat Pump Monoblock R32 Single Phase

    Lowest price in 30 days:
    €5,675.93
    Save 3%
    €5,505.65
    Tax included
    Out of stock
    Further availability of the manufacturer
    Incoming

    Daikin Altherma 3M 16kW Air Water Heat Pump Monoblock R32 Single Phase

    €5,505.65

    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Frequently bought together

    Daikin heat pumps rely on the Daikin Altherma 3 range on the market since 2018, residential air-water heat pumps, characterized by:



    • low power consumption, A++ energy efficiency
    • environmentally sustainable, Bluevolution R-32 technology
    • remote control, smart functionality
    • domestic hot water
    • combination with solar thermal system
    • underfloor heating and cooling
    • innovative design adaptable to any environment
    • compact footprint, installable even in tight spaces.



    How does a heat pump work?

    • The operation is characterized by a closed-loop system with a refrigerant fluid inside (for eco-sustainability issues today we almost always use the refrigerant R-32, also known as difluoromethane or Freon 32) subject to a cyclic change of state, passing from the liquid phase to vapor and vice versa; this obviously occurs with an expenditure of electrical energy, as the heat pump extracts and transfers thermal energy by employing electrical energy. According to the laws of technical physics and psychrometry, there will be variations in pressure and temperature, and the heat pump takes advantage of these variations occurring at the evaporator and compressor, resulting in a very advantageous overall efficiency or coefficient of performance (COP), even exceeding 4-5. It means that for every electrical kW spent, as a result you have 4-5 kW of heat output generated by the system.



    Air-to-air or air-to-water heat pump? Which one to choose?

    • Unlike air-to-air pumps Air-to-water heat pumps have a higher initial cost but also produce domestic hot water, so they do not require an extra boiler or traditional system for domestic hot water.



    Why choose a Daikin Altherma air-to-water heat pump?

    • The outdoor unit extracts energy from the air to provide heating, cooling and hot water production. Up to 75% of the energy used comes from the air, while the rest is provided by electricity. The air-to-water heat pump relies on a compressor and refrigerant to transfer energy from air to water by heating it to meet your needs and use it in your home.



    Monoblock unit:

    • A monoblock unit is an outdoor unit that includes the refrigeration circuit. In this case, there is no indoor unit, only a wiring module and a stand-alone domestic hot water tank.



    Medium-temperature heat pump:

    • Ideal for applications in new buildings and major renovations, medium-temperature heat pumps are particularly suitable combined with underfloor heating and heat pump convectors that require a lower temperature to provide comfort equivalent to that of radiators.



    Newly designed paneling:

    • A black horizontal front grille conceals the single fan, reducing the perception of the sound level produced by the unit.
    • The light gray paneling reflects the space in which the unit is installed, allowing it to blend seamlessly into any environment.



    A single fan for high-capacity units:

    • Daikin engineers replaced the double fan with a larger one, optimizing its shape to reduce noise and improve air circulation.



    Ideal for small spaces:

    • The monoblock unit is the ideal solution for those places with space limitations. No need for an additional indoor unit: the monoblock system can be installed in the space under a window to save space outside.



    Features:

    • Nominal Heating Capacity 16.0 kW
    • Nominal Heating Power Input 4.56 kW
    • COP 4.53
    • Nominal Cooling Capacity 15.3 kW
    • Power input Cooling Nominal 4.58 kW
    • EER 3.06
    • SEER 5.59
    • Space heating: Water output with average climatic conditions 55°C SCOP 3.37 - Room heating seasonal efficiency class A++
    • Space heating: Water outlet with average climatic conditions 35°C SCOP 4.69 Room heating seasonal efficiency class A+++
    • Paneling Color Silver
    • Material Galvanized steel sheet painted with polyester powder
    • Unit Dimensions Height x Width x Depth: 870 x 1,380 x 460mm
    • Unit Weight Kg DV3/DW1: 147, D3V3/D3W1: 149
    • Swing type hermetic compressor
    • Heating operation range Outdoor temperature Min.~Max. °CBU DV3/DW1: -25 ~ 25, D3V3/D3W1: -25 ~ 35
    • Water side Min.~Max. °C DV3/DW1: 9 ~ 60, D3V3/D3W1: 15 ~ 60
    • Cooling operation range: Outdoor temperature Min.~Max. °CBS 10 ~ 43
    • Water side Min.~Max. °C 5 ~ 22
    • Domestic water operation range: Outdoor temperature Min.~Max. °CBS -25 ~ 35 - Water side Min.~Max. °C 25 ~ 55
    • Refrigerant R32 Charge 3.80 kg - Charge TCO2Eq 2.57 - Control Expansion valve
    • Sound power level (5) Heating Nom. dBA 62
    • Power Supply Name/Phase/Frequency/Voltage V3/1~/50/230
    • Current Recommended fuses A 32/16
    • WATER OUTPUT (screw connection, male, 1")
    • WATER INPUT (screw connection, male, 1")

    There are no reviews

    Data sheet

    Type:
    Monoblock units
    Gas:
    R32
    Thermal power:
    16 kW
    Energy class:
    A+++
