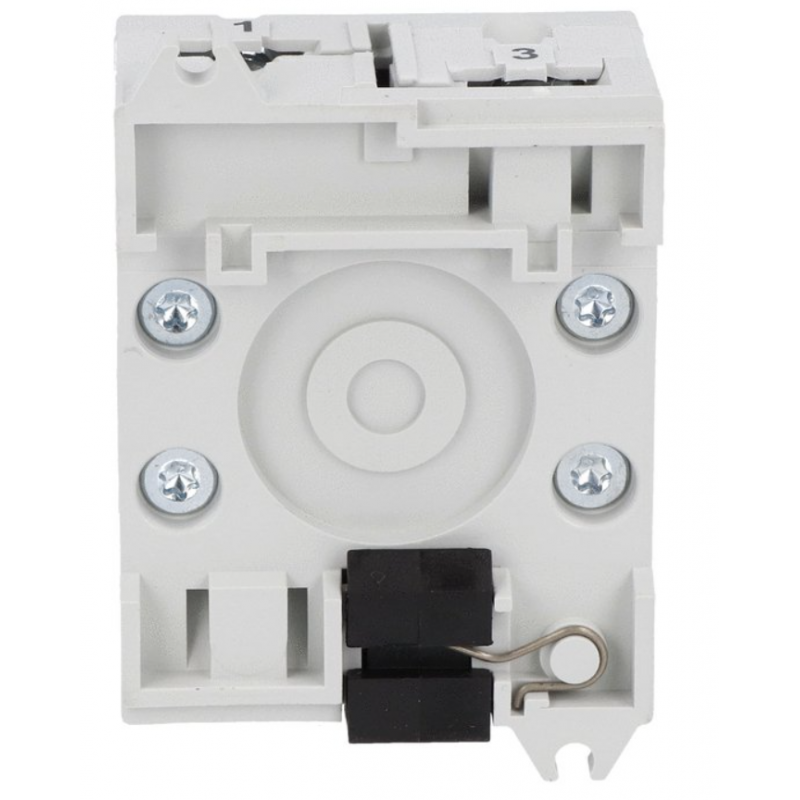

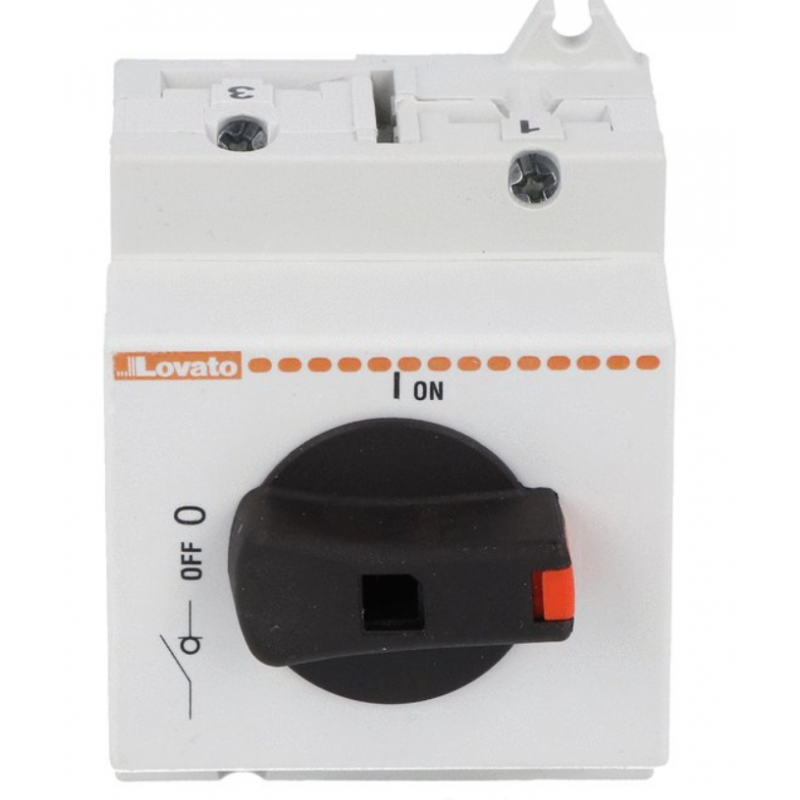

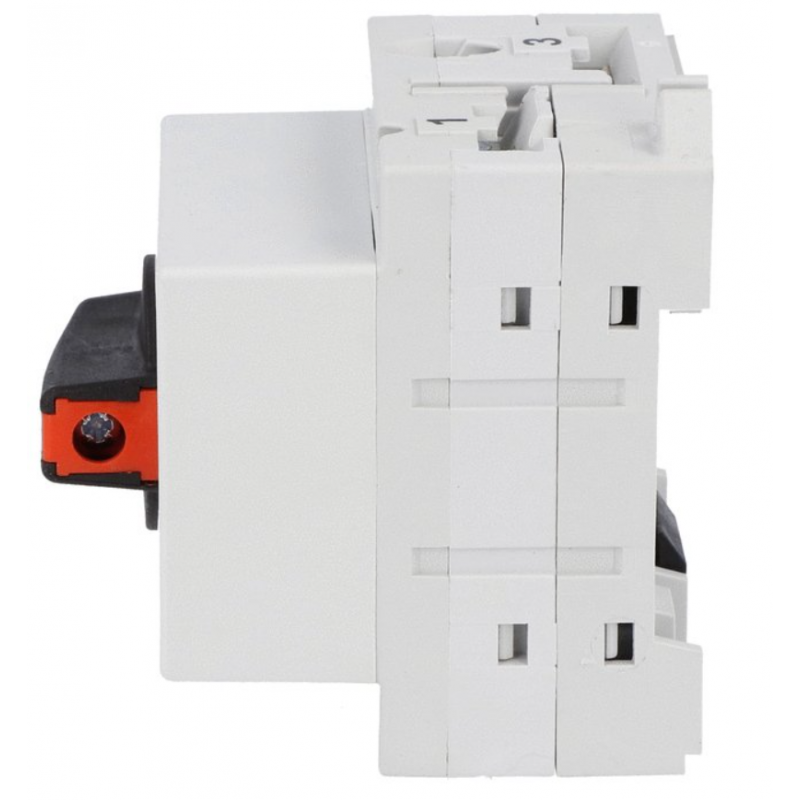

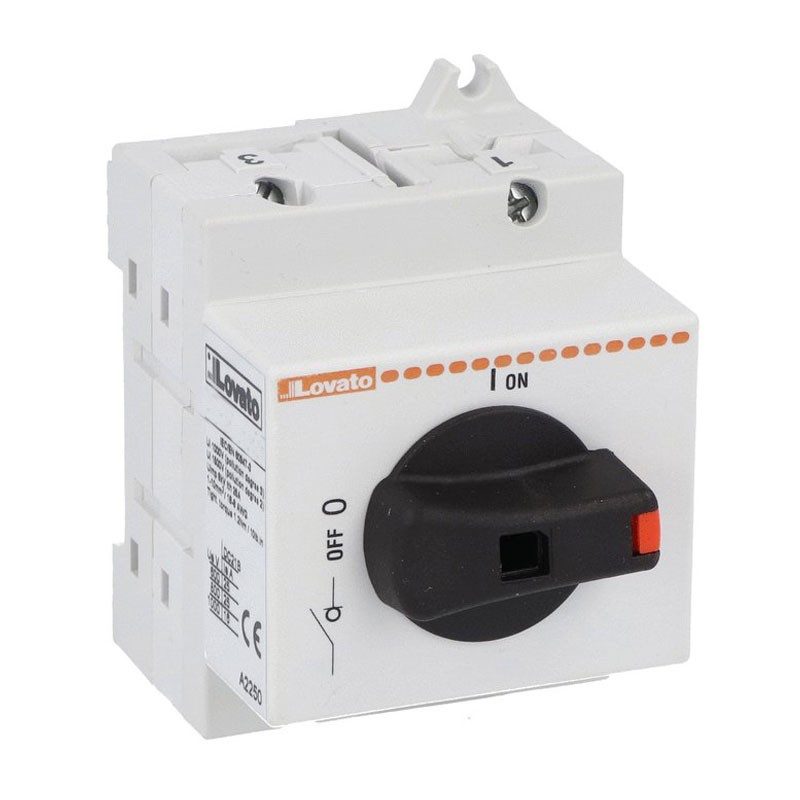

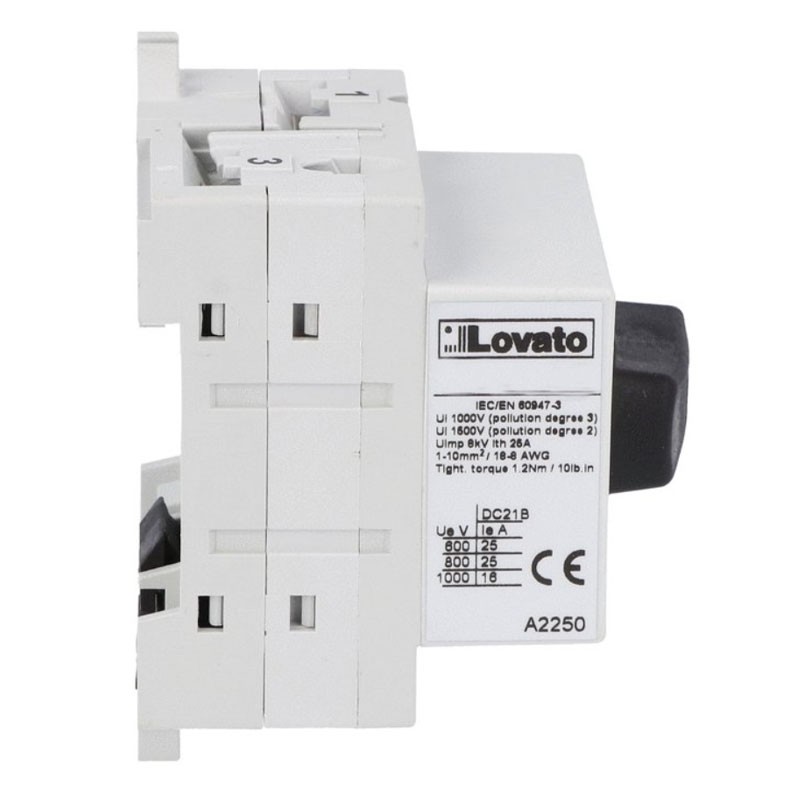

Switch Disconnector Lovato DC 25A 1000V with handle GD025AT3
LOV GD025AT3
3850144156463
Lovato switch disconnector, Operating voltage type DC, Conventional free air thermal current Ith IEC 25A, Rated insulation voltage IEC/EN 1000V, direct operating version, with handle for photovoltaic, 3 poles.
€44.48
€44.48
Tax included
Tax included
Items Available: 12
: 9
Characteristics:
- Product designation Switch disconnector
- Type GD
- Number of poles no. 3
- Type of operating voltage DC
- Conventional free air thermal current Ith IEC A 25
- IEC/EN rated insulation voltage V 1000
- Rated impulse withstand voltage (Uimp) kV 8
- Power dissipation per pole max W 0,8
- Mechanical life cycles 10000
- Mounting position Normal Vertical plane - Any allowed
- Fixing Screw / DIN 35mm rail
- Attachments type Screw and washer - Phillips 1 tool
- Operating temperature min °C -25 max °C +55
- Protection degree IP20 frontal
Operating current Ie DC21A:
- 600V A 25
- 800V A 25
- 1000V A 25.
Terminal tightening torque
- min Nm 1.2
- max Nm 1.6
- min Ibin 1.3
- max Ibin 1.2.
Conductor cross-section:
- IEC min mm² 1
- IEC max mm² 10
- AWG/kcmil min 18
- AWG/kcmil max 8.
Data sheet
- Voltage: 1000V
- Poles: 3P
- Degree of protection: IP20
- Amps: 25A
- Circuit Protections: Disconnectors
- Operating voltage: DC
