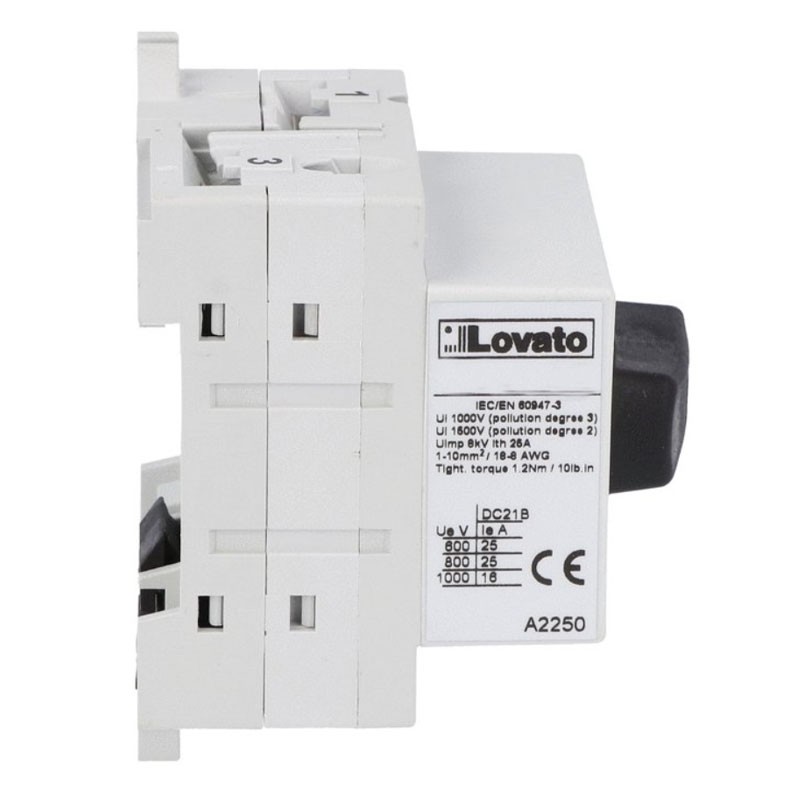

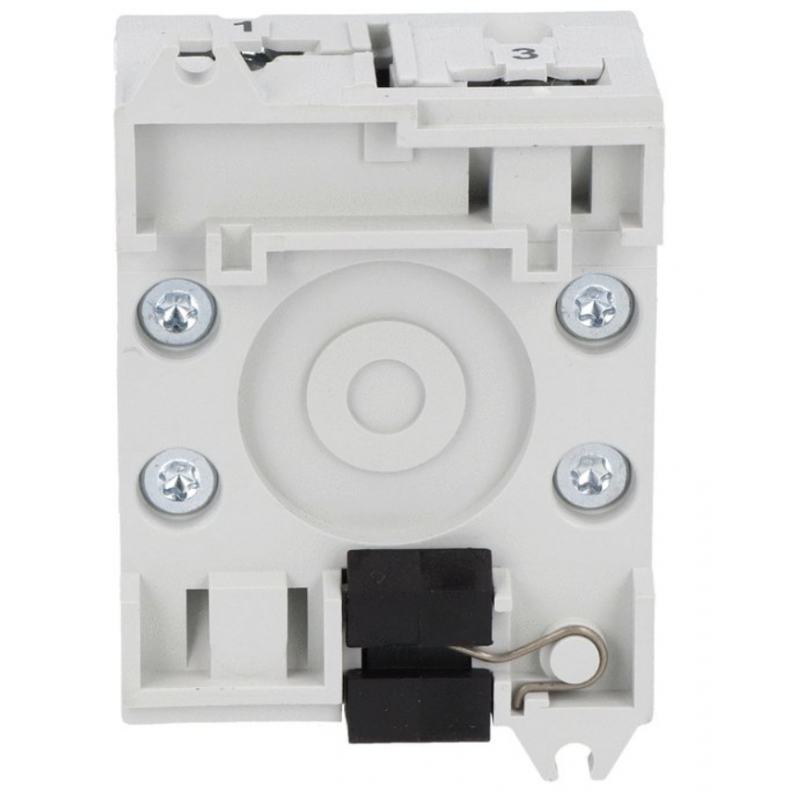

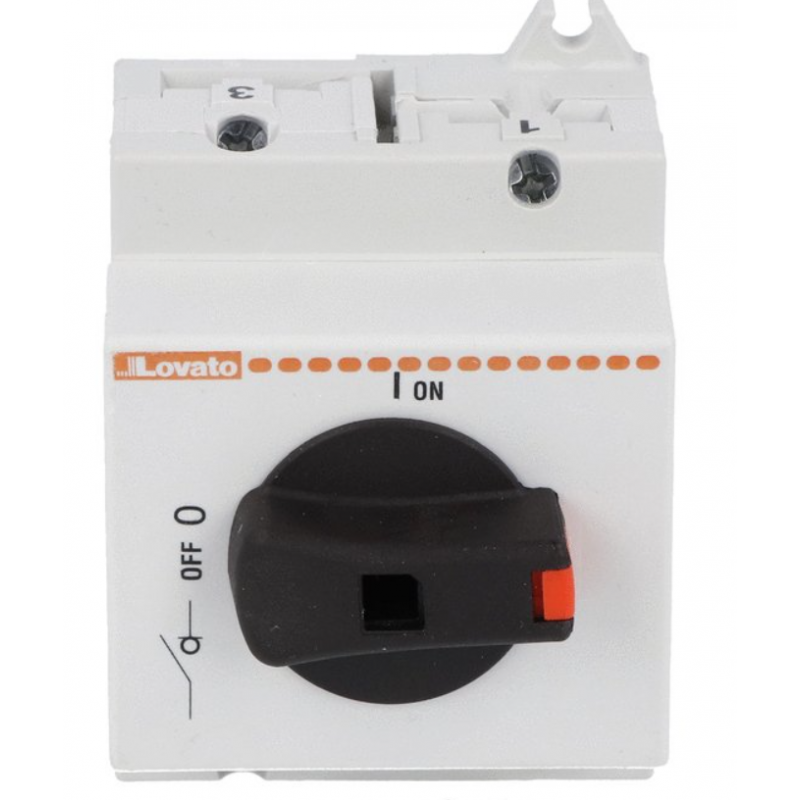

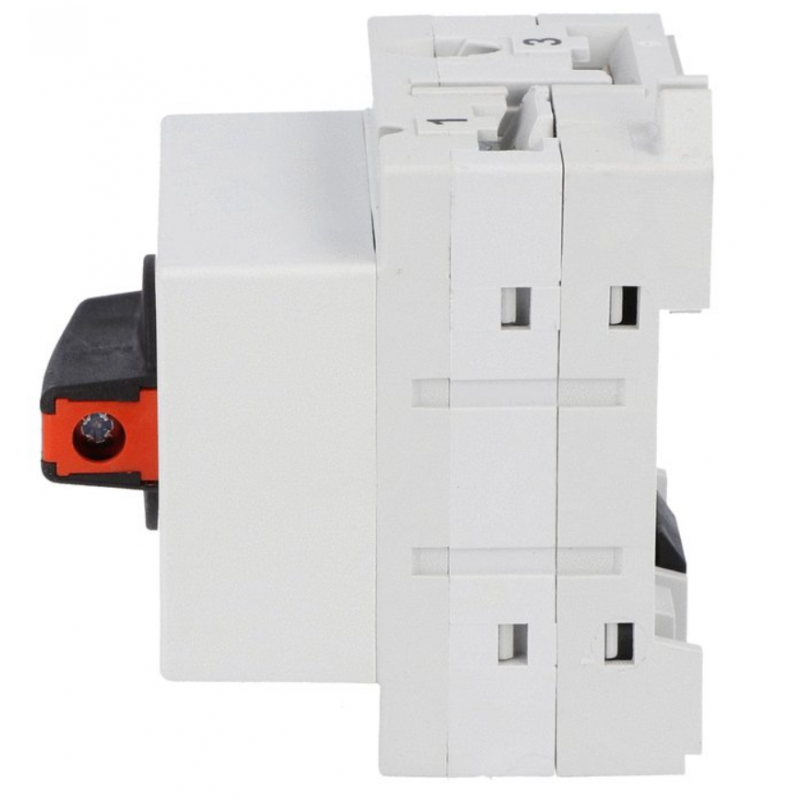

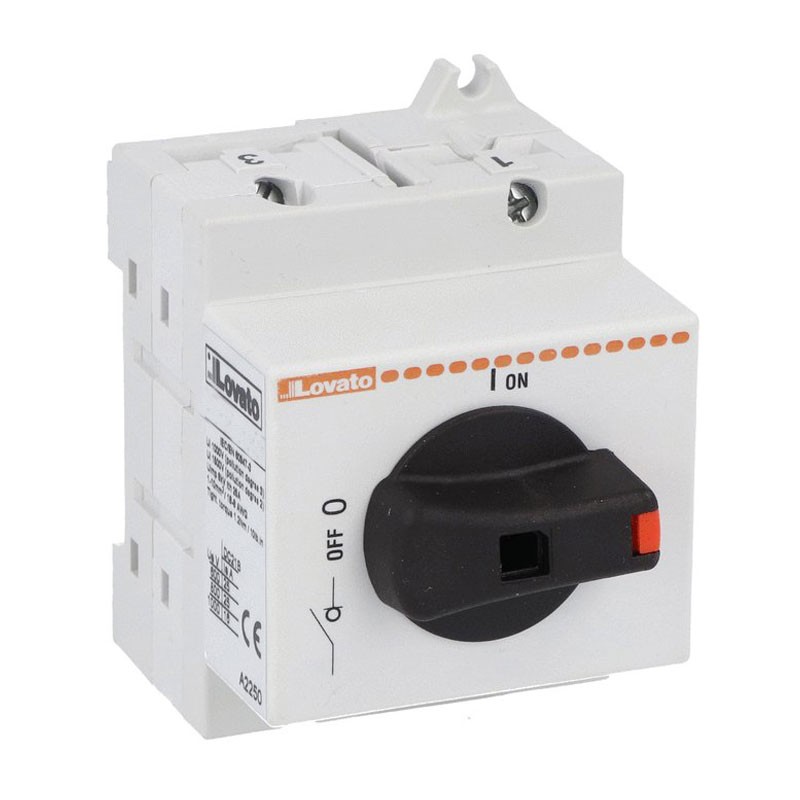

Switch Disconnector Lovato DC 40A 1000V with handle GD040AT4

Lovato
LOV GD040AT4 8013975216804

Lovato Disconnect Switch, Operating voltage type DC, Conventional free air thermal current Ith IEC 40A, Rated insulation voltage IEC/EN 1500V, direct operating version, with handle for photovoltaic, 4 poles.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Switch Disconnector Lovato DC 40A 1000V with handle GD040AT4
€83.54
€83.54

€83.54
Tax included
Items Available: 62
Further availability of the manufacturer
€83.54

Buy it within and receive it from Monday, 17 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Type GD
  • Number of poles nr. 4
  • Type of operating voltage DC
  • Conventional free air thermal current Ith IEC A 40
  • Rated insulation voltage IEC/EN V 1500
  • Rated impulse withstand voltage (Uimp) kV 8
  • Power dissipation per pole max W 1.9
  • Mechanical life cycles 10000
  • Mounting position Normal Vertical plane Allowed Any
  • Fastening Screw / DIN 35mm rail
  • Connections type Screw and washer - Phillips 1 tool
  • Operating temperature min °C -25 - max °C +55
  • Protection degree IP20 frontal

Operating current Ie DC21A:

  • 600V A 40
  • 800V A 40
  • 1000V A 40
  • 1200V A 32
  • 1500V A 25.

Terminal tightening torque:

  • min Nm 1.2
  • max Nm 1.6
  • min Ibin 1.3
  • max Ibin 1.2.

Conductor cross-section:

  • IEC min mm² 1
  • IEC max mm² 10
  • AWG/kcmil min 18
  • AWG/kcmil max 8.

ok, günstig und sehr schnell geliefert.

Read all reviews

Data sheet

Voltage:
1000V
Poles:
4P
Degree of protection:
IP20
Amps:
40A
Circuit Protections:
Disconnectors
Operating voltage:
DC
