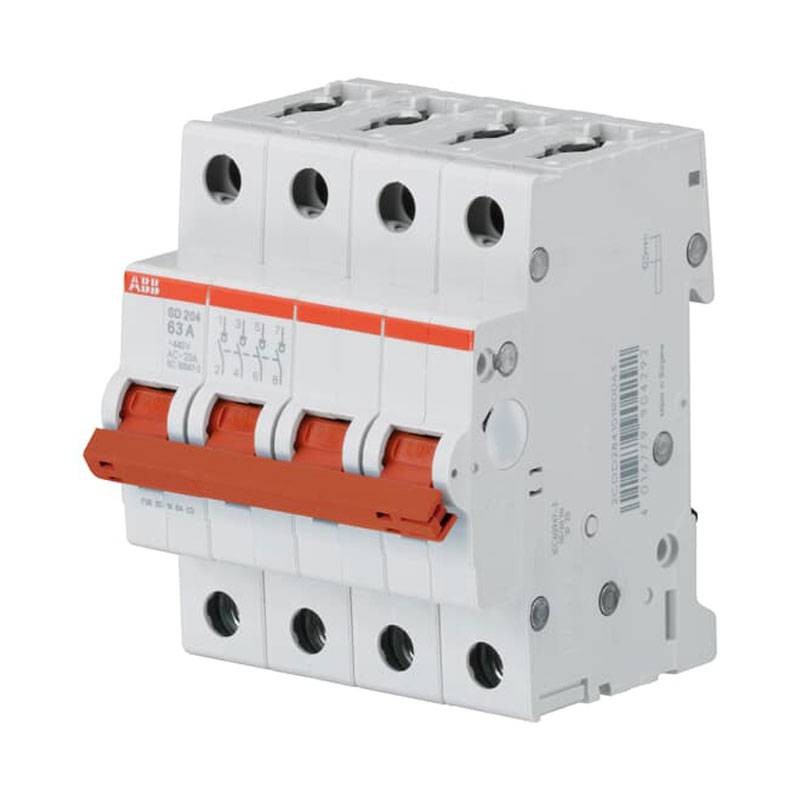

Abb Disconnect Switch SD204/25 4P 25A 4 Modules M990425
ABB M990425
4016779904254
Abb disconnector switch SD204/25 with the following characteristics:
- Rated voltage: 440V 12V minimum
- Rated operating voltage: 440V
- Operating voltage: Maximum 462 V AC - Minimum 12 V AC
- Impulse withstand voltage: 4 kV at 2000 m 5 kV - at sea level 6.2 kV
- Rated current: 25 amps
- Rated conditional short-circuit current: 25kA
- Rated service short-circuit capacity: 25kA
- Number of poles: 4
- Number of modules: 4
- Degree of protection: IP20 housing - with cover IP40
Abb Disconnect Switch SD204/25 4P 25A 4 Modules M990425
€55.42
€55.42
Tax included
Tax included
Items Available: 16
: 1
They are designed fordisconnection of power lines according to IEC EN 60947-3, allowing for safe maintenance of downstream connected devices, and for control under load. They are also equipped with a plumbable control lever in both positions.
For proper operation, upstream protection with devices against short circuit and overload (fuses, circuit breakers) is required.
The disconnect switch, otherwise called the voltage disconnect switch, has the same as a circuit breaker, but on a larger scale: it is, in fact, responsible for shutting off the flow of power to the electrical distribution stations. This is mainly to ensure the safety of the power plant and primarily of the people working inside it since one of its special features is to separate the flow of energy from the working environments. Another special feature of this instrument is its ability to be able to detect defects in the electrical flow and isolate them. When the defect is then corrected, the disconnector will make the current flow normally again.
Features:
- Input voltage type: AC/DC
- Rated frequency (f): 50/60 Hz
- Power loss: at Nominal Operating Conditions per pole 1.32 W
- Electrical resistance: 20000 AC cycle(s)
- Mechanical resistance: 20000 cycle(s)
- Number of c/o contacts: 0
- Number of NC contacts: 0
- Number of NO contacts: 4
- Overvoltage category: III
- Tightening torque: 2.8 Nm
- Actuator type: Lever
- Screw terminal type: Two-way failsafe cylinder lifting terminal
- Switch type: Off
- Actuator Marking: I/O
- Actuator material: Insulation group II, red, sealable
- Enclosure material: Insulation class I, RAL 7035
- Mounting location: Any
- Recommended screwdriver: Pozidriv 2
- Cover color: Gray
- Connection capacity: 10 / 10 mm² busbar - Flexible 0.75 ... 16 mm² - Rigid 0.75 ... 25 mm² - Flexible 0.75 ... 25 mm²
- Terminal type: Screw terminals
- Ambient temperature: In operation -25 ... +55 °C - In storage -40 ... +70 °C
- Pollution degree: 3
- Ambient conditions: 28 cycles at 55 °C / 90-96 % and 25 °C / 95-100 %
- Product width: 70 mm
- Product height: 88 mm
- Product depth: 69 mm
- Built-in depth (t2): 69 mm
There are no reviews
Data sheet
- Voltage: 440V
- Modules: 4
- Poles: 4P
- Degree of protection: IP20
- Amps: 25A
- Circuit Protections: Disconnectors
- Operating voltage: AC
