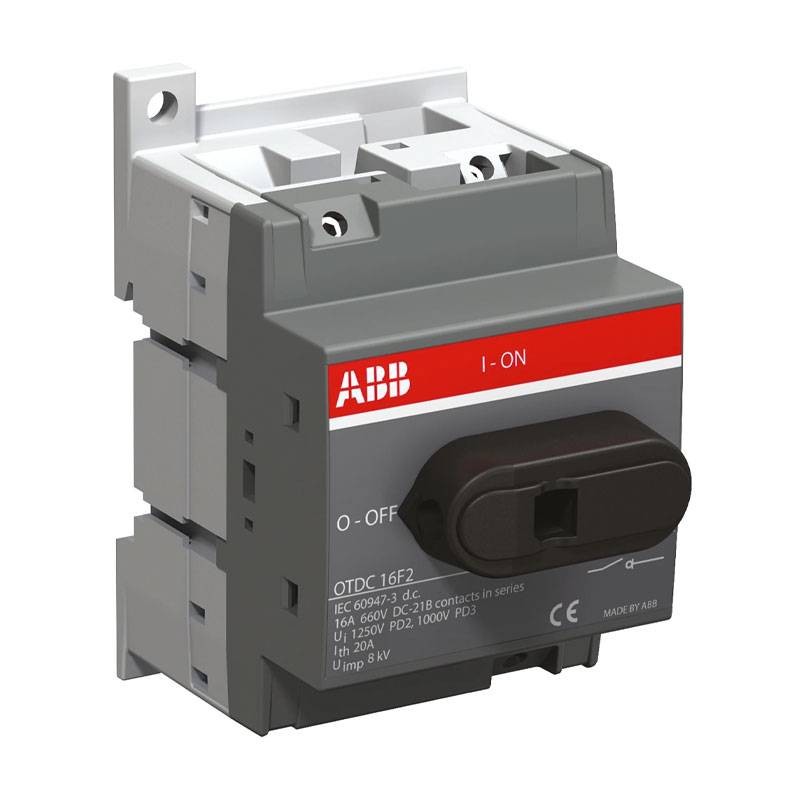

Abb Switch Disconnector 16A 2 Pole 660 Vdc OTDC16F2
ABB OTDC16F2
6417019525990
Abb OTDC switch disconnector with the following characteristics:
- Rated current: 16 amps
- Rated voltage: 660 Vdc
- Number of poles: 2
- Color: Black
- Mounting: Base and DIN rail mounting
- Usage: Photovoltaic
- Degree of protection: IP20
€65.48
€62.20
Lowest price in 30 days:
€65.48
Save 5%
€62.20
Tax included
Tax included
Items Available: 20
: 16
The OTDC range of switch disconnectors is specially designed for DC applications. Thanks to the compact design, efficiency and reliability of the OTDC range, PV systems reach a new level of development. The versatile OTDC range includes solutions for systems with the most stringent requirements: voltage class of 1500 VDC, multi-circuit disconnection, and combined load outputs up to 1500 A.
Features:
- Conventional free air thermal current (Ith):q = 40 °C 25 A
- Conventional thermal current (Ithe):Fully Closed 25 A
- Impulse withstand voltage (Uimp):8 kV
- Rated insulation voltage (Ui):1000 V
- Rated operating voltage:1000 V
- Rated short-circuit closing capacity (Icm):(1000 V DC) 0.8 kA
- Rated allowable short-circuit current (Icw):1000 V DC 0.8 kA for 1 s 0.8 kA
- Power Loss:Nominal Operating Conditions per pole 0.15 W
- Pollution degree:3
- Positive opening operation torque (direct opening operation):0.4 0.8 N-m
- Shaft diameter:6 mm
- Operation:Mechanism on the top of the switch
- Operating mode:Front operation
- Cable cross-section:2.5 to 16mm²
- Terminal type: Screw terminals
- Width: 52.5 mm
- Height: 89mm
- Depth: 66.2mm
There are no reviews
Data sheet
- Voltage: 660V
- Modules: 3
- Poles: 2P
- Amps: 16A
- Circuit Protections: Disconnectors
- Operating voltage: DC
